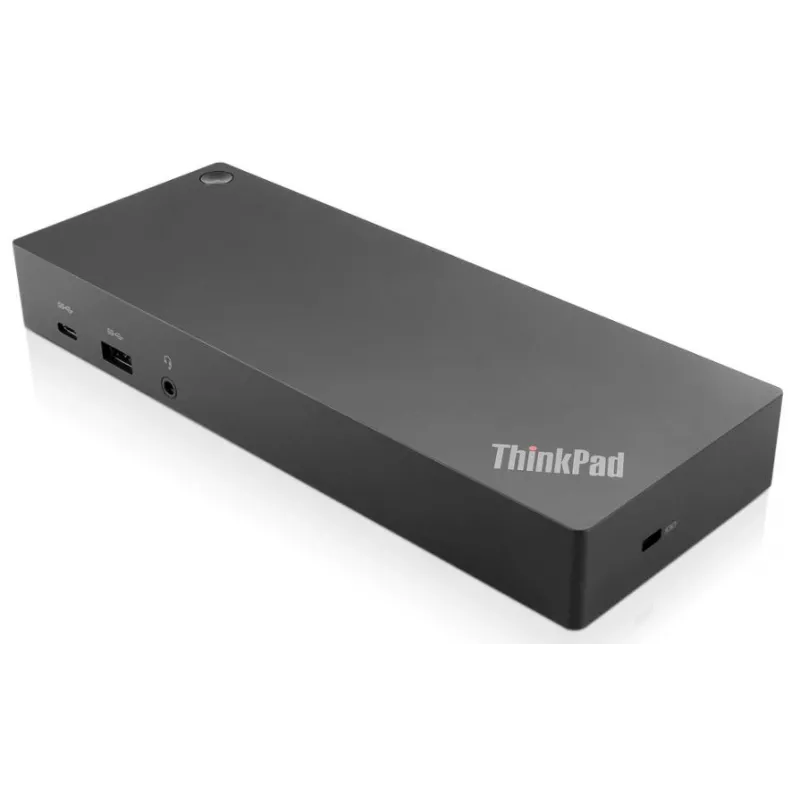

Docking station per laptop Lenovo 03X7469 con filo USB 3.2 Gen 2 (3.1 Gen 2) Type-C nera

The Lenovo Laptop Dock 03X7469 USB 3.2 Gen 2 Type-C Black is a compact wired docking solution designed to expand connectivity for compatible laptops and Type-C enabled devices. It provides a mix of video, high-speed data and legacy ports in a slim black enclosure, enabling connection to external displays, wired networks and multiple peripherals through a single USB-C link.

Advantages

This dock supports USB 3.2 Gen 2 Type-C connectivity for up to 10 Gbps host throughput and includes multiple USB Type-A ports for high-speed and legacy device support. Dual HDMI outputs allow connection to two external monitors for extended or mirrored displays. A dedicated Gigabit Ethernet port provides stable 10/100/1000 Mbit/s LAN access, and integrated 3.5 mm audio enables microphone and headphone connection. The black finish and compact footprint make it suitable for both home and office environments.

Suitable for

• Expanding laptop connectivity to multiple monitors and peripherals
• Workstation setups requiring wired Gigabit Ethernet access
• Office and home office use where compact, wired docking is preferred
• Users who need several USB Type-A ports for external storage, input devices or accessories

Key specifications

• Host interface: USB 3.2 Gen 2 Type-C
• Video outputs: 2 × HDMI
• USB ports: 3 × USB 3.2 Gen 2 Type-A, 2 × USB 2.0 Type-A
• Ethernet: 1 × Gigabit LAN (10/100/1000 Mbit/s)
• Audio: 1 × 3.5 mm headphone/microphone jack
• Colour: Black

How to use

Connect the dock to a compatible laptop or host device using the USB-C cable to enable data, video and network pass-through. Attach external monitors to the HDMI outputs and configure display settings on the host operating system to set extended or duplicated modes. Plug peripherals such as external drives, keyboards and mice into the available USB Type-A ports. For wired network access, connect an Ethernet cable to the RJ-45 port. Use the 3.5 mm jack for headphones or a headset as needed.

Recommendations

Ensure the host device supports USB-C video output (DisplayPort Alternate Mode) for multi-monitor functionality and that USB drivers are up to date. For optimal network performance, use quality Ethernet cabling and connect to a Gigabit-capable network. Avoid overloading the dock with high-power devices; for power-hungry peripherals, consider connecting them directly to the laptop or using a powered USB hub.
