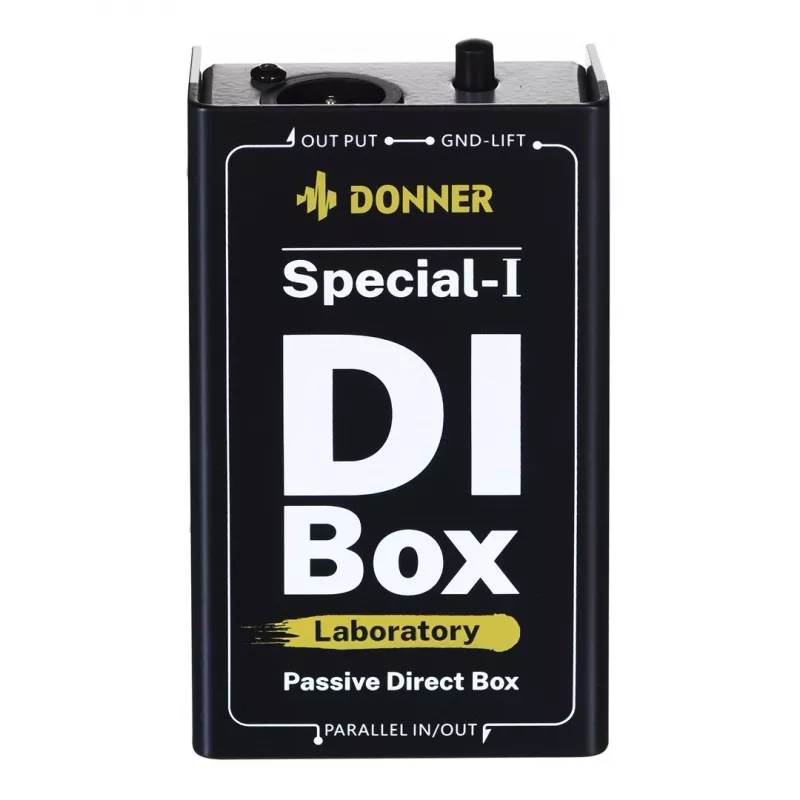

Donner Special-DI DI-Box passiva

When connecting an electric guitar, bass, or keyboard directly to a mixing console or audio interface, you often encounter unwanted hum, buzz, and signal degradation caused by ground loops and impedance mismatches. The Donner Special-DI Passive DI Box solves these issues by converting high-impedance unbalanced instrument signals into low-impedance balanced microphone-level signals, ensuring clean, noise-free audio transmission over long cable runs.

Who is it for

This DI box is ideal for live sound engineers, recording musicians, and home studio owners who need a reliable, no-fuss solution for connecting instruments to PA systems or recording equipment. Whether you're on stage, in the studio, or rehearsing, the Special-DI provides professional-grade signal conversion without the need for batteries or phantom power.

Main features

• Passive design requires no external power, ensuring zero battery anxiety and consistent performance.
• High-quality audio transformer delivers transparent sound with a flat frequency response from 20Hz to 20kHz.
• Ground lift switch effectively eliminates hum and buzz caused by ground loops.
• -20dB pad switch allows connection of high-output sources like active basses or line-level signals without distortion.
• Rugged aluminum alloy chassis withstands the rigors of touring and frequent use.
• Parallel 1/4" thru jack lets you send the original signal to an on-stage amplifier while feeding the mixer.

Specifications

• Type: Passive DI Box
• Channels: 1 (Mono)
• Input Connector: 1 x 1/4" TS Unbalanced
• Thru/Link Connector: 1 x 1/4" TS Unbalanced
• Output Connector: 1 x XLR Male Balanced
• Input Impedance: 50 kOhm
• Output Impedance: 600 Ohm
• Frequency Response: 20Hz - 20kHz
• Ground Lift Switch: Yes
• Pad Switch: Yes (-20dB)
• Construction Material: Aluminum Alloy Chassis
• Power Requirement: Passive (No external power required)
• Colour: Black

Tips

For best results, place the DI box close to the instrument and use a short unbalanced cable to the input. Engage the ground lift if you hear hum, and use the pad switch when connecting line-level sources. The thru jack is perfect for feeding a stage amplifier while sending a clean signal to the front-of-house mixer.
