DSIT armadio rack per server 19U a pavimento 600x1000x860 mm con porte perforate, nero

With a robust 800 kg static load capacity and 19U of internal rack space, this DSIT server cabinet provides secure, well-ventilated housing for critical IT equipment in compact spaces.

Overview

The DSIT DS6015PP is a floor-standing server cabinet engineered for professional environments where space is limited but reliability is non-negotiable. Its 600 mm width and 1000 mm depth offer ample room for standard 19-inch equipment, while the 860 mm height (19U) fits comfortably under desks or in low-clearance areas. The cabinet features high-density perforated front and rear doors, promoting approximately 70% open area for efficient passive airflow. Removable, lockable side panels and lockable doors ensure physical security, while top and bottom cable entry points simplify installation and cable management.

What stands out

• 19U capacity in a compact 860 mm height, ideal for space-constrained server rooms or edge deployments.

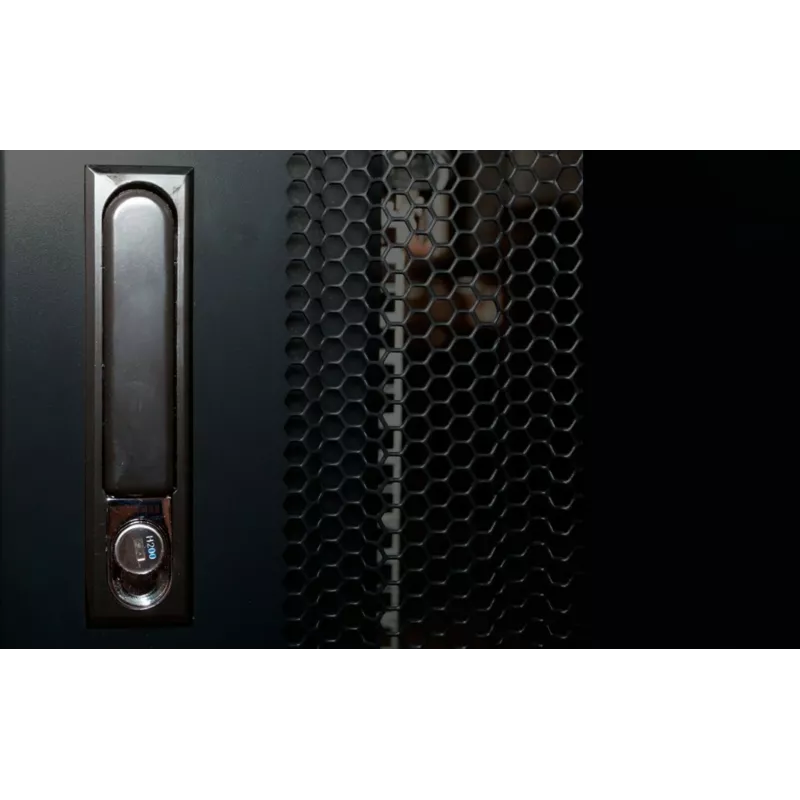

• High-density perforated front and rear doors (approx. 70% ventilation) support natural convection cooling, reducing the need for additional fans in many setups.
• Heavy-duty SPCC cold rolled steel construction with a static load rating of 800 kg, accommodating dense equipment loads.

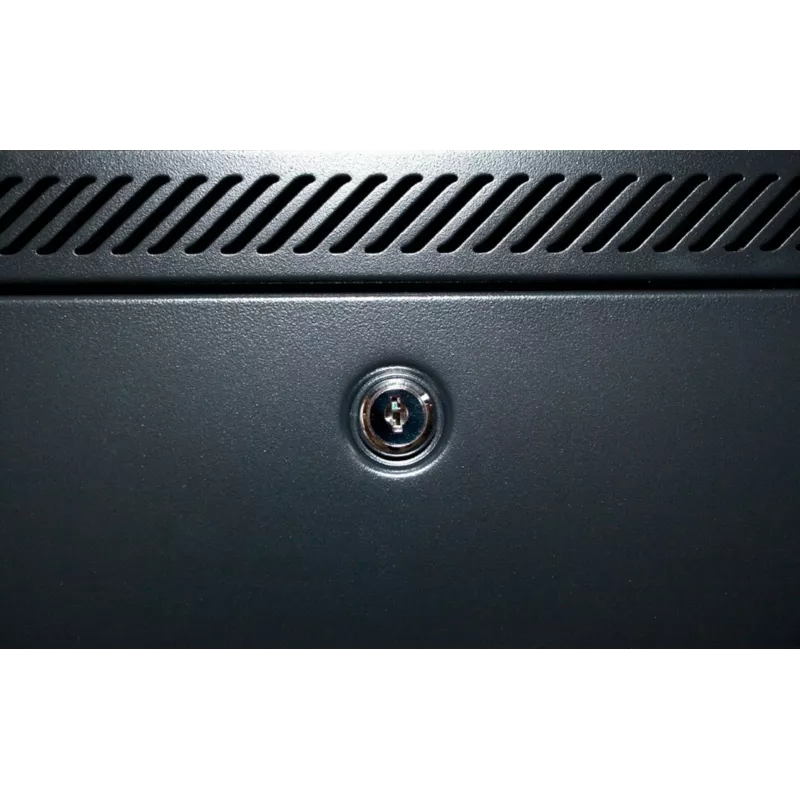

• Lockable doors and side panels provide physical access control, with included keys for convenience.
• Complies with EIA-310-D and IEC 60297-2 standards, ensuring compatibility with standard 19-inch rack-mount hardware.
• Black RAL 9005 powder-coated finish offers a professional appearance and durability against scratches and corrosion.

Technical details

• Rack type: Freestanding server cabinet
• Rack capacity: 19U
• External dimensions (W x D x H): 600 x 1000 x 860 mm
• Internal rack width: 19 inch
• Front door: Perforated, single section, lockable
• Rear door: Perforated, single section, lockable
• Side panels: Removable, lockable
• Material: SPCC cold rolled steel
• Color: Black (RAL 9005)
• Static load capacity: 800 kg
• Cable entry: Top and bottom
• Ventilation: High-density perforation (approx. 70%)
• Security: Lockable doors and side panels
• Compliance: EIA-310-D, IEC 60297-2
• Included accessories: Keys, cage nuts, mounting screws

Our verdict

A compact yet rugged server cabinet that delivers enterprise-grade security and ventilation. Its 19U capacity and 800 kg load rating make it a versatile choice for small server rooms, network closets, or industrial edge applications.
