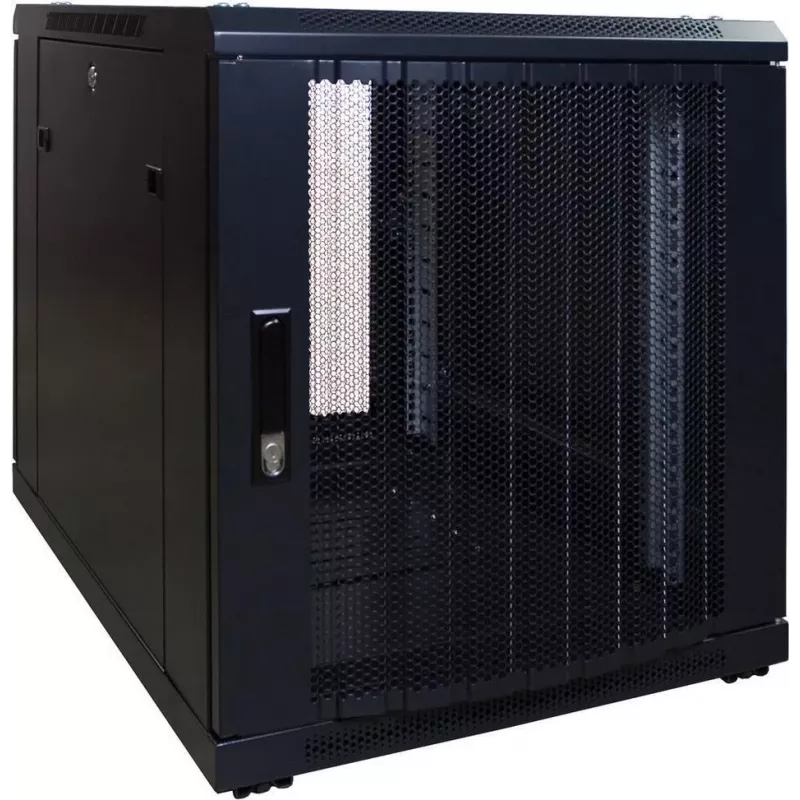

DSIT armadio rack server freestanding 12U, 600x600x720 mm, porta anteriore perforata con serratura, nero

This 12U freestanding server rack cabinet provides secure, well-ventilated housing for network and server equipment in small offices, retail spaces, and IT closets. Its perforated steel front door ensures passive airflow while keeping equipment protected behind a lockable panel.

Advantages

The cabinet is constructed from SPCC cold rolled steel with a black RAL 9005 powder-coated finish for durability and a professional appearance. Removable, lockable side panels allow easy access during installation and maintenance. Adjustable front and rear mounting rails accommodate equipment with varying depths, and the 19-inch standard width ensures compatibility with a wide range of rack-mount devices. Top and bottom cable entry points with brush strips help maintain a tidy cable layout and reduce dust ingress.

Suitable for

• Small and medium business server rooms
• Network closets and branch offices
• Retail back offices and point-of-sale systems
• Security and surveillance equipment enclosures
• Audio/video and telecommunications installations

Key specifications

• Rack capacity: 12U
• External dimensions (WxDxH): 600 x 600 x 720 mm
• Internal rack width: 19 inches
• Front door: perforated steel, lockable
• Rear panel: solid steel

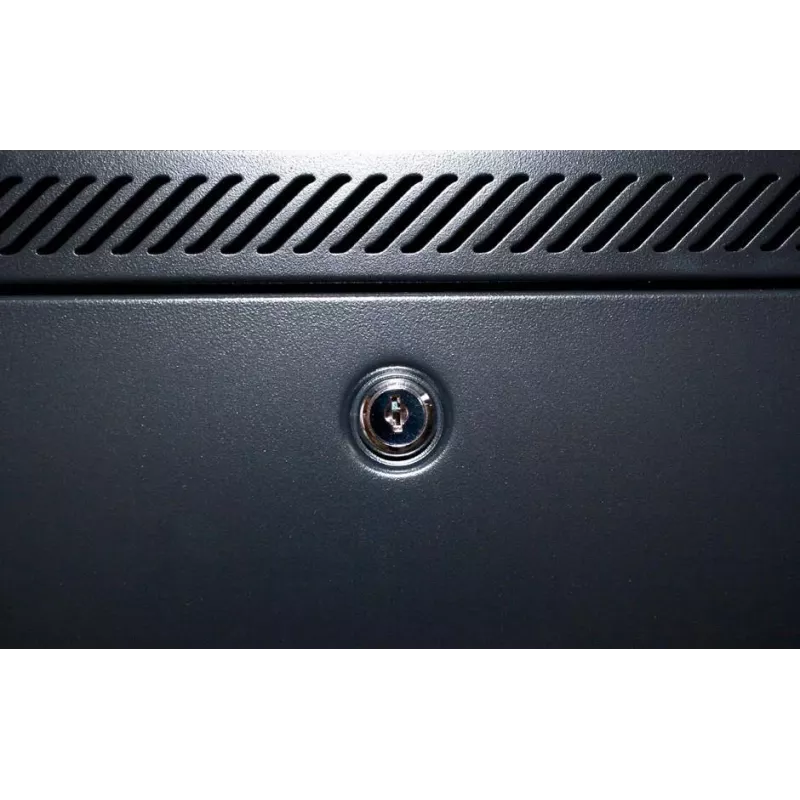

• Side panels: removable, lockable
• Material: SPCC cold rolled steel, black RAL 9005
• Static load capacity: 60 kg
• Mounting type: floor standing
• Cable entry: top and bottom with brush strips
• Ventilation: passive airflow

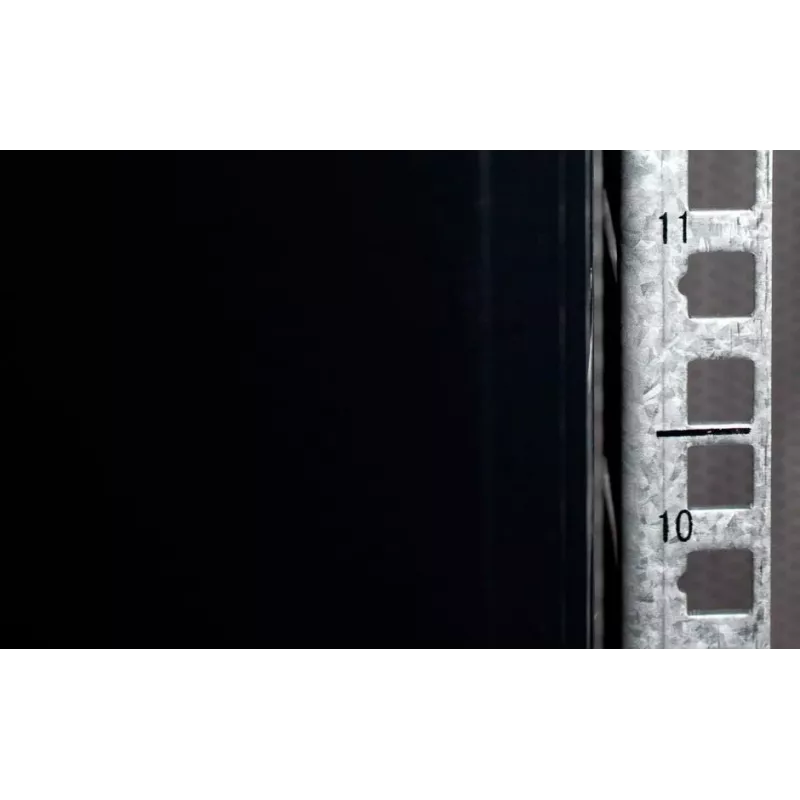

• Adjustable mounting rails: front and rear
• Assembly: fully assembled
• IP rating: IP20
• Included accessories: 2 keys, cage nuts & screws (10 sets)
• Compliance: RoHS, CE

Recommendations

For optimal airflow, leave at least 100 mm clearance at the rear and top of the cabinet. Use the included cage nuts and screws to mount equipment securely, and distribute weight evenly across the rack rails. The lockable front door and side panels help prevent unauthorized access—store keys in a secure but accessible location.
