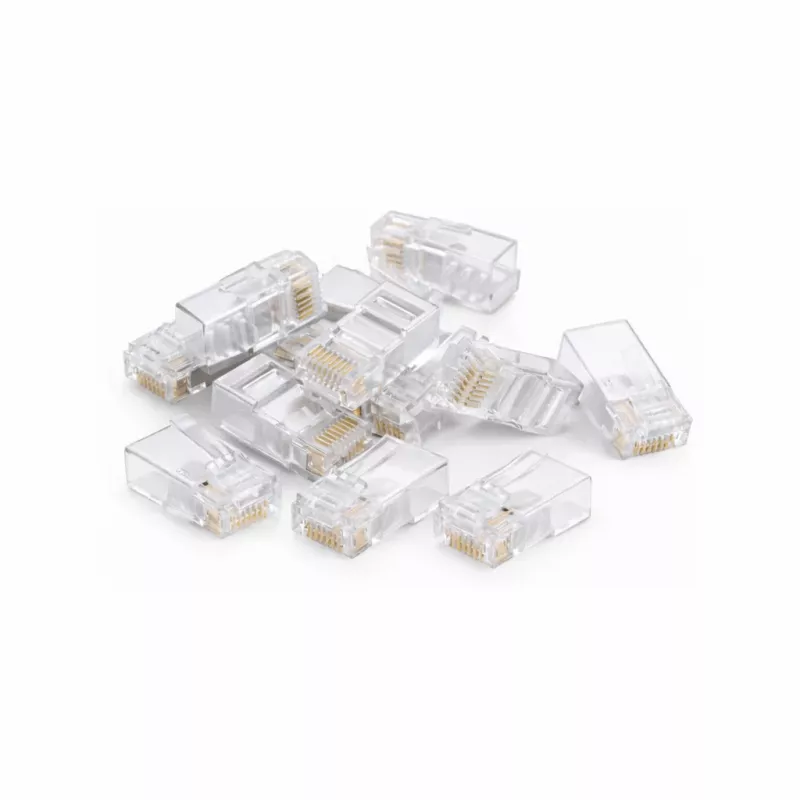

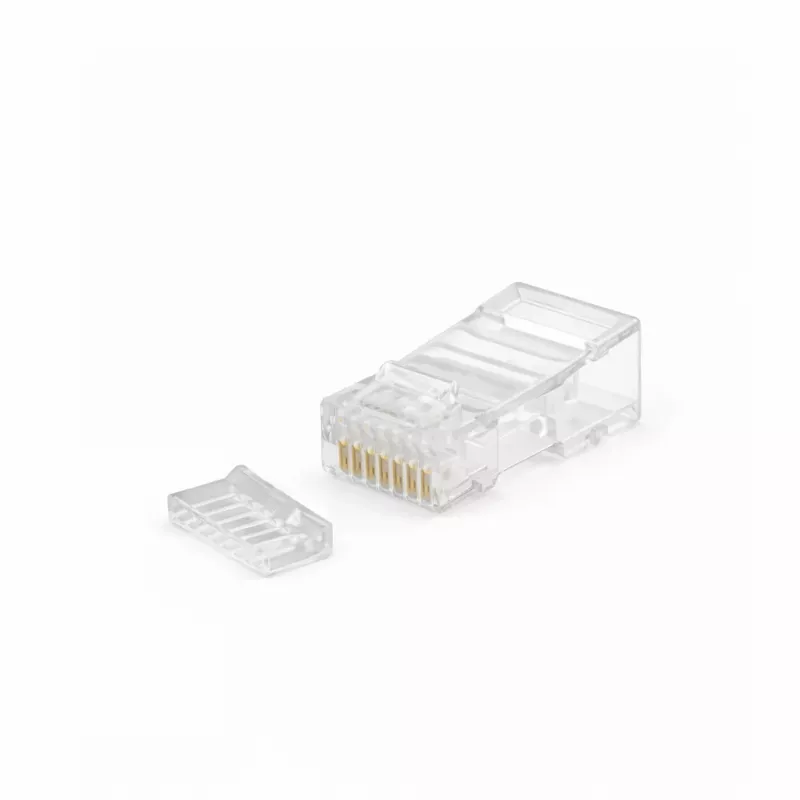

DSIT CAT6 UTP RJ45 connettore per conduttore massiccio – confezione da 10

Most RJ45 plugs force a compromise: either they fit stranded patch cable or they fit solid-core installation wire, but rarely both with confidence. The DSIT DC-RJ45-UTP6S-10PCE eliminates that guesswork. This 10-piece set is engineered specifically for solid conductors, the kind you pull through walls and terminate at patch panels and keystone jacks. The transparent polycarbonate housing lets you inspect every wire before crimping, so a misaligned pair never makes it into your finished link.

Highlights

• CAT6 performance with 250 MHz bandwidth for Gigabit Ethernet and beyond
• Unshielded (UTP) design for standard twisted-pair installations
• Gold-plated contacts (3 µm) resist oxidation and maintain signal integrity
• Accepts 23–24 AWG solid conductors and cable jackets up to 6.5 mm
• Integrated strain relief protects the termination from pulls and flex
• RoHS compliant, transparent housing for visual verification

In daily use

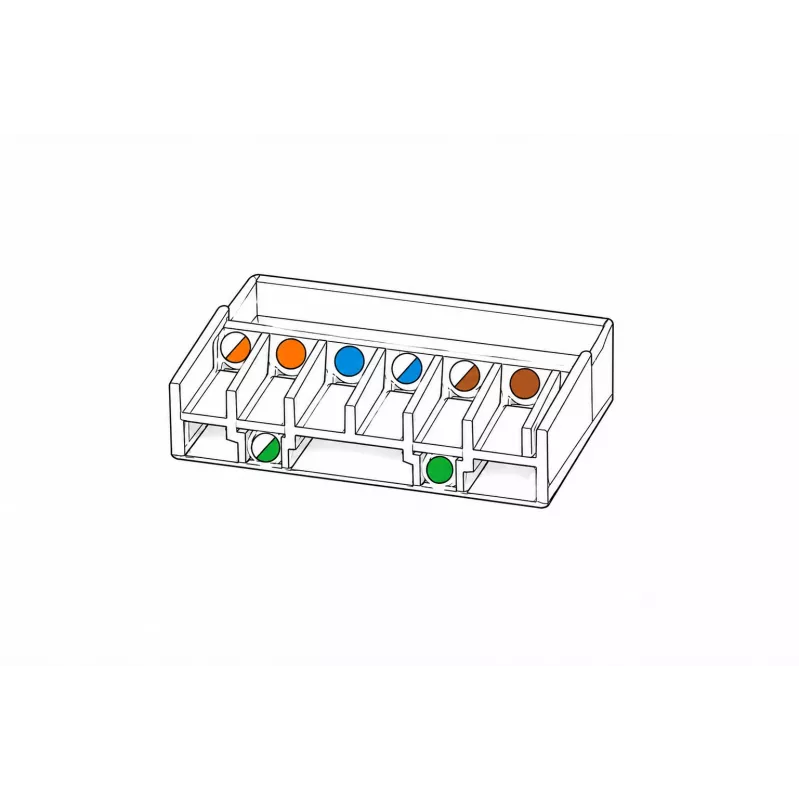

Whether you are wiring a new office, upgrading a home network, or building custom patch leads, these plugs make termination predictable. The straight-through wire guide aligns each conductor with its IDC slot, reducing the chance of crossed pairs. Because the body is clear, you can confirm the wire order matches T568A or T568B before you squeeze the crimper. Once set, the gold-plated blades bite into the copper for a gas-tight connection that stays stable through temperature swings from -10°C to 60°C.

Full specifications

• Connector type: RJ45 (8P8C) male plug
• Cable category: CAT6
• Shielding: UTP (unshielded)
• Conductor compatibility: solid core, 23–24 AWG
• Max cable outer diameter: 6.5 mm
• Contact plating: gold, 3 µm
• Housing material: high-grade polycarbonate, transparent
• Data rate: up to 1 Gbps (10GBASE-T capable over short distances)
• Frequency: 250 MHz
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801
• Installation: crimp-on
• Pack quantity: 10 pieces
• Operating temperature: -10°C to +60°C
• Certifications: RoHS

Final note

For installers who value a clean, verifiable termination on solid copper, this DSIT pack delivers consistent results without the premium of shielded or tool-less alternatives.
