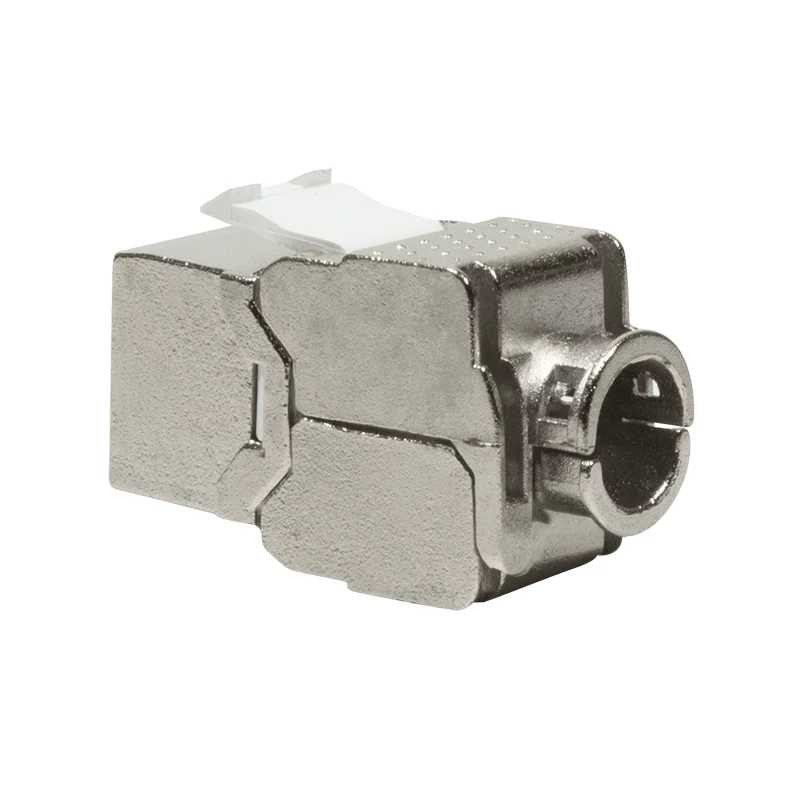

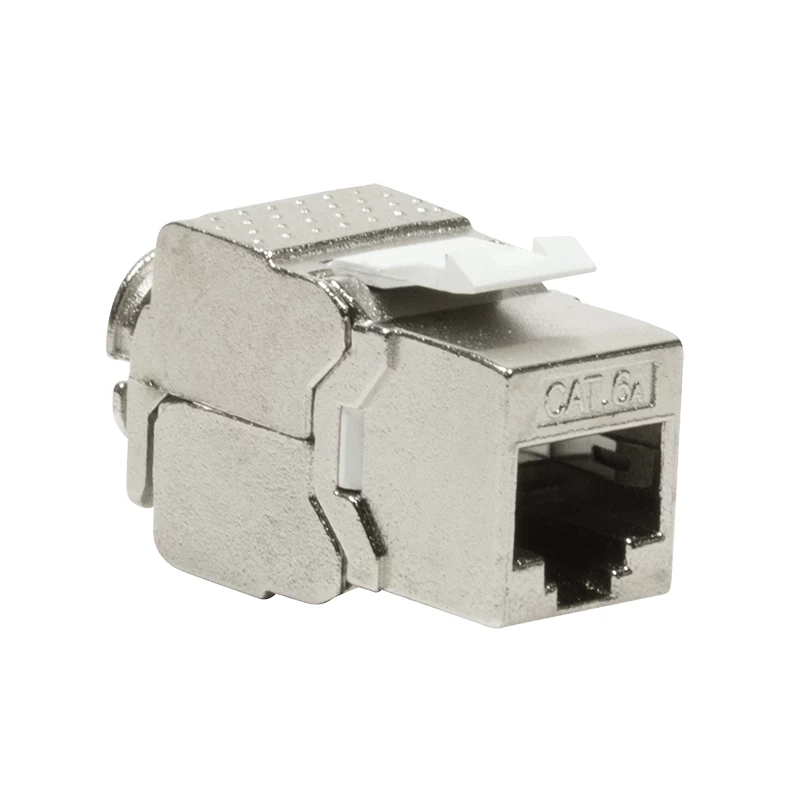

DSIT CAT6a STP keystone jack modulo RJ45 senza attrezzi

Engineered for 10 Gigabit Ethernet, this DSIT CAT6a STP keystone jack delivers 500 MHz bandwidth with shielded twisted pair construction to eliminate crosstalk and EMI. The toolless IDC termination means no punch-down tool is required—just press the conductors into the color-coded slots and snap the cap shut. Gold-plated phosphor bronze contacts and a zinc alloy shielded body ensure reliable, high-speed connections in demanding network environments.

Overview

The DSIT DS-KC-STP6A-TL is a CAT6a shielded keystone jack designed for professional network installations. It fits standard keystone wall plates, patch panels, and surface mount boxes, providing a clean and modular solution for high-performance cabling. The jack supports T568A and T568B wiring schemes, making it compatible with existing infrastructure. Its toolless design simplifies termination, reducing installation time and errors. The shielded housing protects against electromagnetic interference, ensuring stable 10GBASE-T performance over 100 meters of CAT6a cable.

What stands out

• Toolless IDC termination: no punch-down tool needed, just press and snap.
• Full CAT6a performance: up to 10 Gbps data rate and 500 MHz bandwidth.
• Robust shielding: zinc alloy body and STP design minimize alien crosstalk.
• Gold-plated contacts: 50µm gold on phosphor bronze for corrosion resistance and low contact resistance.
• Wide compatibility: accepts 22-26 AWG solid or stranded conductors, fits all standard keystone openings.

Technical details

• Connector type: RJ45 female, 8P8C.
• Cable category: CAT6a.
• Shielding: STP (shielded twisted pair).

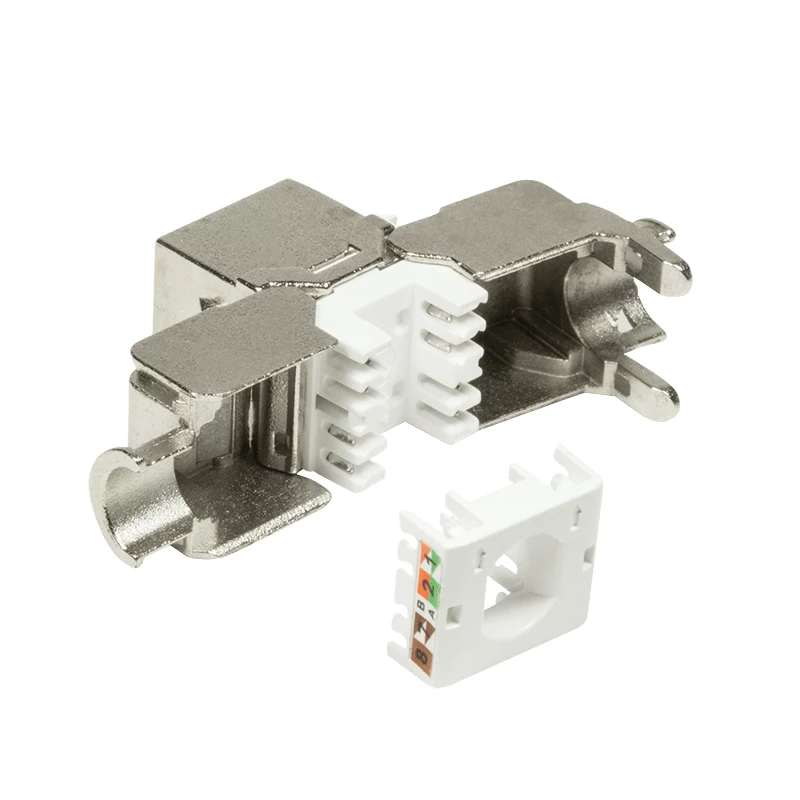

• Termination: toolless IDC, T568A/B color-coded.
• Data rate: up to 10 Gigabit Ethernet.
• Frequency: 500 MHz.
• Contact plating: 50µm gold over phosphor bronze.
• Housing material: zinc alloy shielded body, ABS plastic front.
• Wire gauge: 22-26 AWG solid or stranded.
• Insulation resistance: >500 MΩ.
• Dielectric withstanding voltage: 1000V AC RMS, 60Hz, 1 minute.
• Operating temperature: -10°C to 60°C.
• Certifications: RoHS, CE.

Our verdict

For installers who demand speed and reliability, this keystone jack is a top choice. Its toolless design cuts termination time dramatically, while the CAT6a shielding ensures future-proof performance for 10G networks. Whether you're wiring a data center or a smart home, the DSIT DS-KC-STP6A-TL delivers consistent, high-quality connections.
