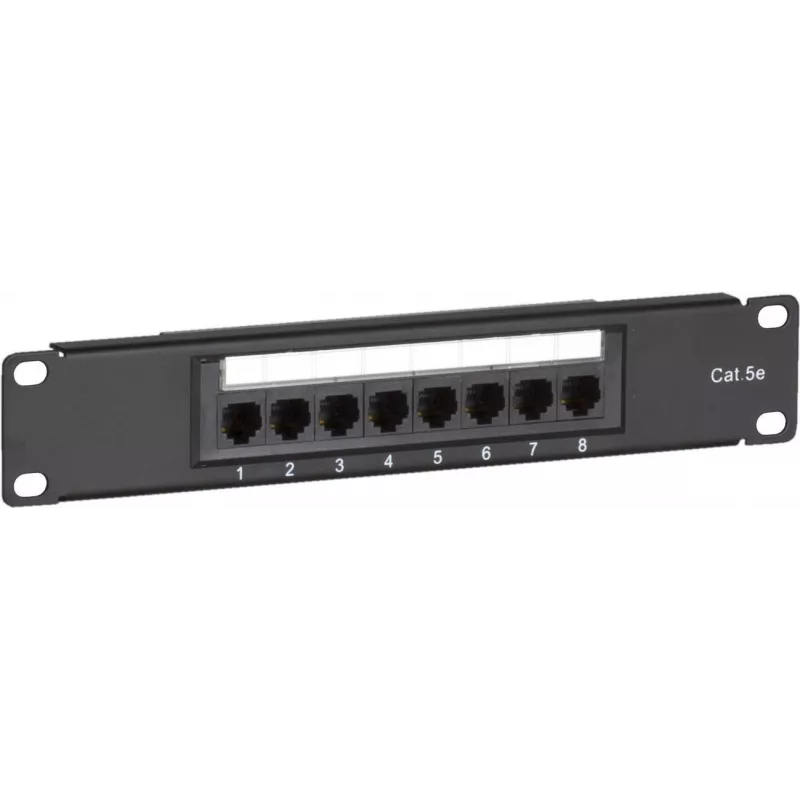

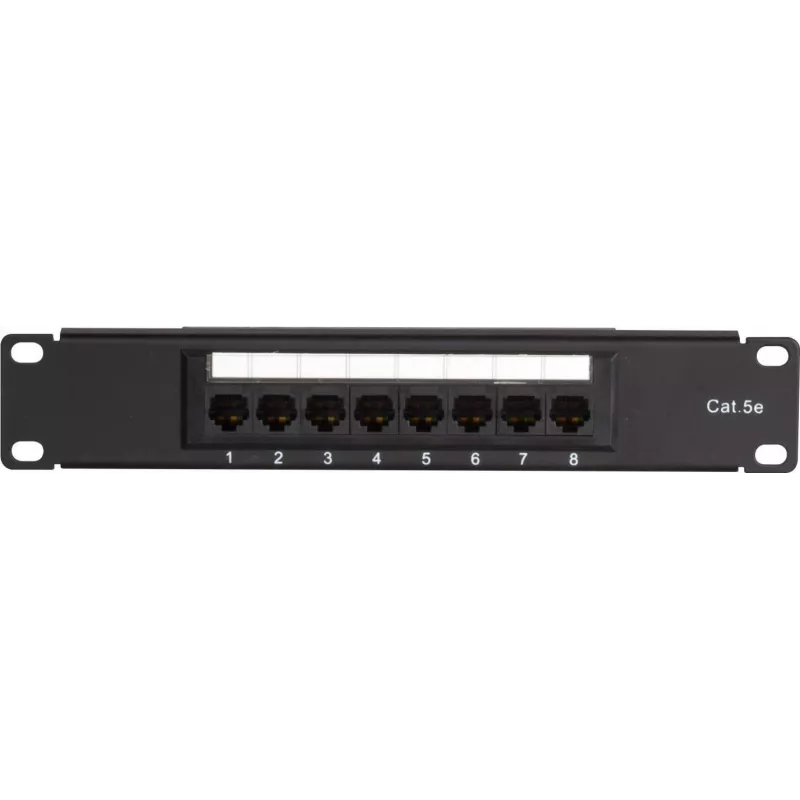

DSIT DS-10Patch5-8UTP patch panel 10 pollici 8 porte UTP CAT 5e

Network patch panel engineered for 10-inch racks, providing eight CAT 5e UTP ports with reliable Gigabit Ethernet performance. Its compact metal housing and tool-free IDC terminations make it ideal for structured cabling in small enclosures, offices, and edge installations.

Advantages

The DSIT DS-10Patch5-8UTP combines a space-saving 10-inch form factor with robust construction. The unshielded design simplifies installation while maintaining signal integrity up to 100 MHz. Front RJ45 jacks and rear 110/Krone IDC blocks support both T568A and T568B wiring schemes, ensuring compatibility with standard punch-down tools. The black metal frame offers durability and blends into any rack environment.

Suitable for

• Small office and home office (SOHO) network cabinets
• Wall-mount enclosures with 10-inch mounting rails
• Edge deployments requiring a compact patch solution
• LAN segments needing Gigabit Ethernet connectivity

Key specifications

• 8 ports, CAT 5e performance, UTP shielding
• 10-inch rack mountable, black metal housing
• RJ45 front connectors, IDC rear terminations (110/Krone)
• Supports TIA/EIA 568A/B, 22-26 AWG solid wire
• Bandwidth: 100 MHz; data rate: 10/100/1000BASE-T
• Durability: 750 RJ45 mating cycles, 200 IDC cycles
• Operating temperature: -10°C to 60°C
• RoHS compliant

Recommendations

For installers and IT managers seeking a dependable, space-saving patch panel for 10-inch racks, the DSIT DS-10Patch5-8UTP delivers consistent CAT 5e performance and easy termination. Pair it with solid-conductor UTP cable for optimal results.
