DSIT DS-10Patch6-8FTP patch panel FTP CAT6 8 porte 10"

Compact 10-inch racks often force a compromise between port density and cable performance, but this DSIT patch panel sidesteps that trade-off entirely. It packs eight fully shielded CAT6 ports into a footprint small enough for wall cabinets and micro data closets, while the FTP construction keeps alien crosstalk out of high-interference environments. The steel housing and integrated grounding point make it a dependable termination point for small business networks, security installations, and edge computing enclosures.

Highlights

• 8 RJ45 ports in a 10-inch form factor, ideal for space-constrained racks and wall cabinets
• FTP shielding with integrated grounding connection protects against EMI/RFI
• Supports Gigabit Ethernet (10/100/1000Base-T) and CAT6 performance up to 250 MHz
• LSA/IDC rear termination blocks accept 22–26 AWG solid or stranded conductors
• Numbered port labels and integrated cable tie bar simplify installation and maintenance
• Durable black steel housing with rack-mount ears included

In daily use

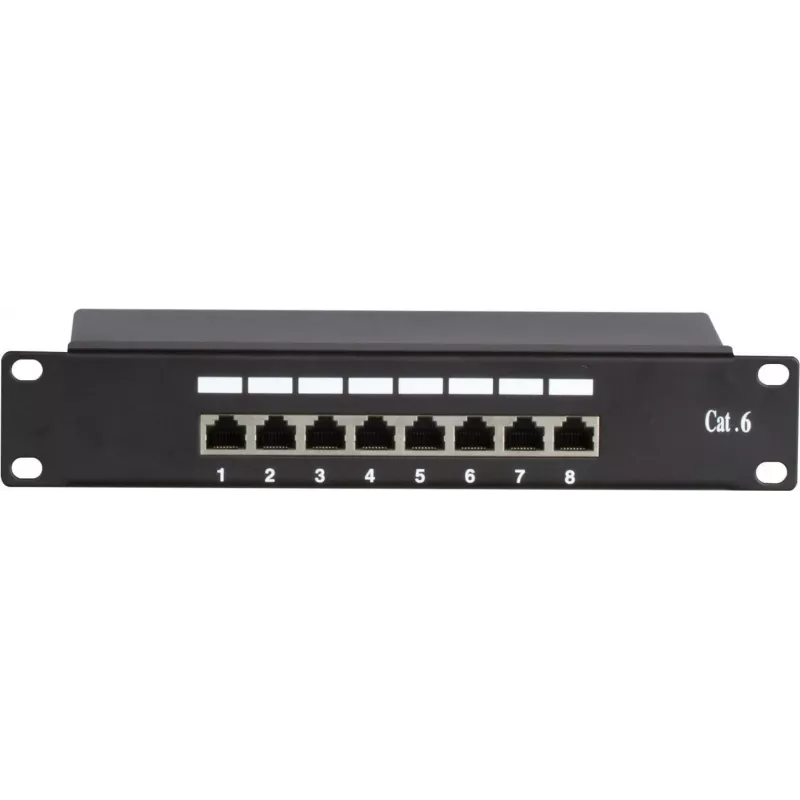

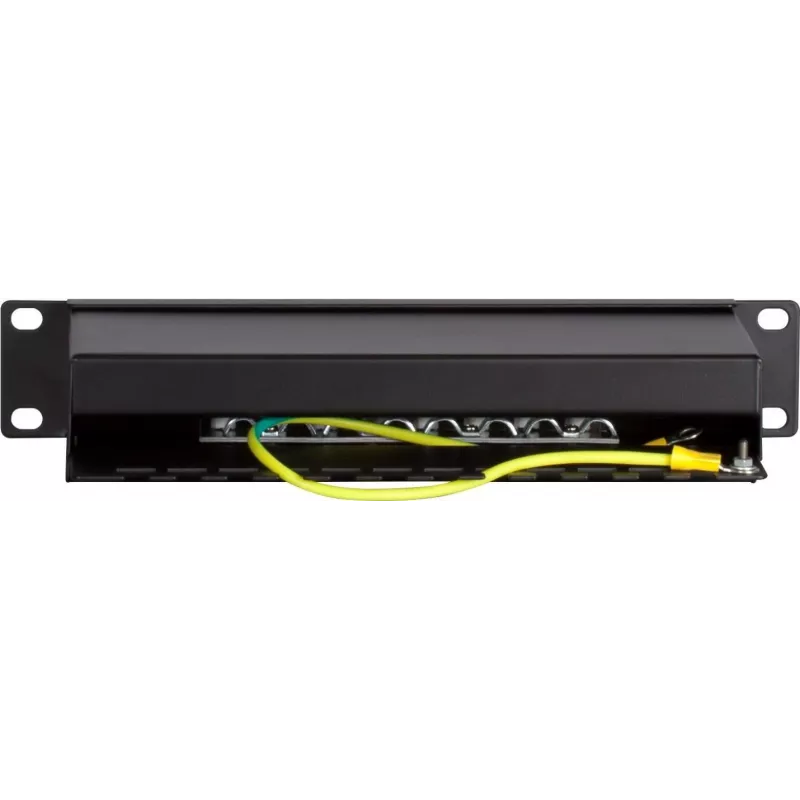

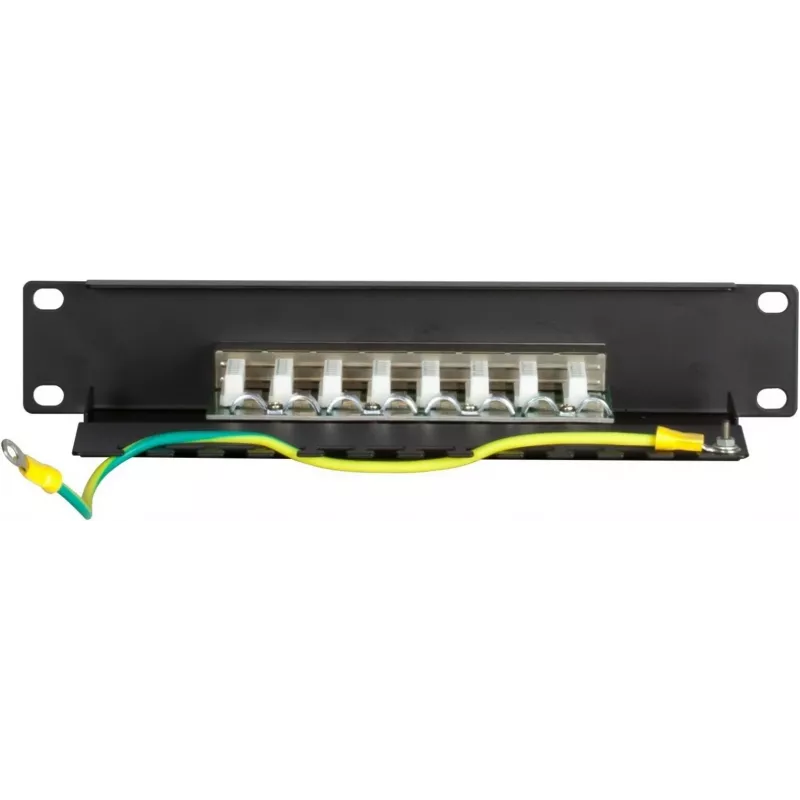

This panel is built for technicians who need reliable connectivity without bulky infrastructure. The front-facing RJ45 jacks are clearly numbered, so tracing a drop takes seconds, not minutes. On the rear, the LSA/IDC punch-down blocks follow the TIA/EIA 568A/B colour code, making termination straightforward with a standard punch-down tool. The integrated cable tie bar keeps bundles neat, reducing strain on the terminations and improving airflow inside the cabinet. Because the panel is grounded, it helps maintain signal integrity even when installed near motors, fluorescent lighting, or other noise sources.

Full specifications

• Brand: DSIT
• Model: DS-10Patch6-8FTP
• MPN: DS-10Patch6-8FTP
• EAN: 8719172412420
• Product type: Network patch panel
• Rack size: 10-inch
• Number of ports: 8
• Cable standard: CAT6
• Shielding type: FTP (Foiled Twisted Pair)
• Mounting type: Rack mount
• Front connector type: RJ45 female
• Rear termination type: LSA/IDC
• Wiring standard: TIA/EIA 568A/B
• Housing material: Steel
• Grounding: Yes (integrated grounding connection)
• Colour: Black
• Compatibility: 10/100/1000Base-T Ethernet networks
• Port labeling: Numbered ports
• Cable management: Integrated cable tie bar
• Application: Small network cabinets, server racks, office environments

Final note

When every rack unit counts, the DS-10Patch6-8FTP delivers enterprise-grade shielding and termination quality in a compact 10-inch package — no compromise on performance.
