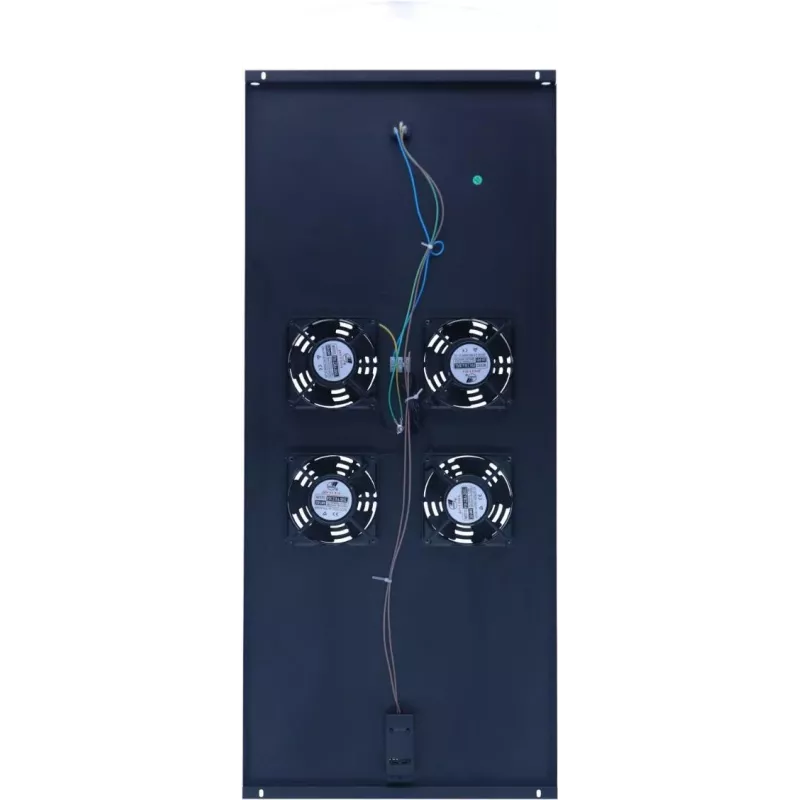

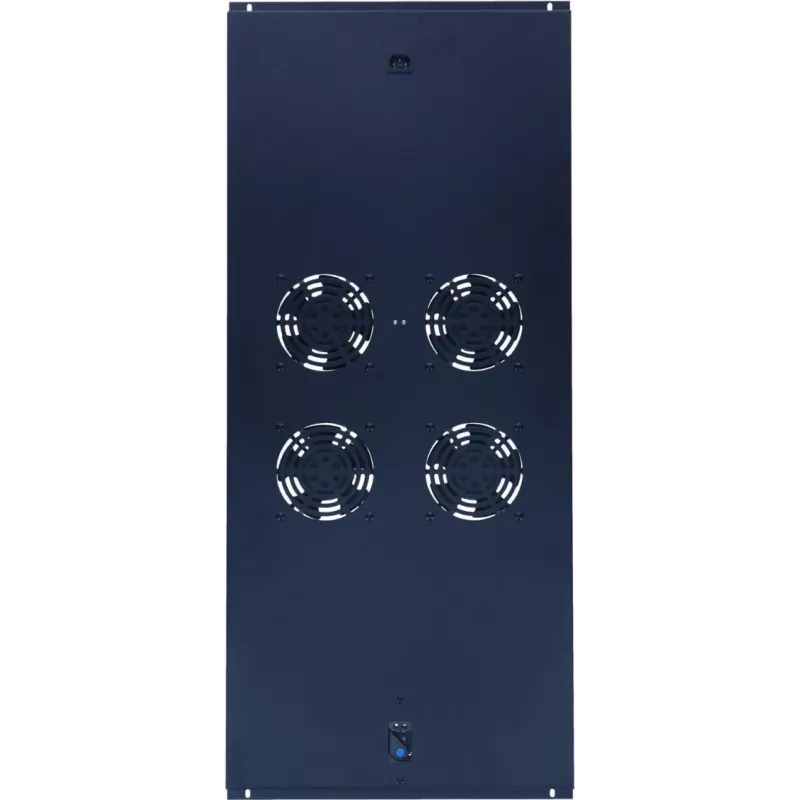

DSIT DS-FT120 unità ventole da tetto per rack server 1200mm - 4 ventole con termostato, 480 m³/h, 230V, nero

Roof fan unit engineered for 1200mm deep server racks, delivering a powerful 480 m³/h airflow to prevent overheating in high-density IT environments. The DS-FT120 comes with four integrated fans and an adjustable thermostat, ensuring automatic temperature regulation from 0°C to 60°C. Its plug-and-play design and 19-inch rack compatibility make it an essential cooling solution for data centres and network cabinets.

Advantages

Automatic thermostat control activates fans only when needed, reducing energy consumption and noise. Four high-performance fans provide uniform heat extraction across the entire rack depth. The robust steel housing with RAL 9005 black finish blends seamlessly into professional installations. Tool-free roof mounting and a 2-metre power cable simplify deployment.

Suitable for

• Server rooms and data centres with 1200mm deep 19-inch racks
• Network cabinets requiring active heat removal
• IT environments where temperature stability is critical
• Installations needing a low-maintenance, plug-and-play cooling unit

Key specifications

• Number of fans: 4
• Total airflow: approx. 480 m³/h
• Thermostat adjustment range: 0°C to 60°C
• Input voltage: 230V AC, 50/60 Hz
• Power consumption: approx. 80 W
• Noise level per fan: approx. 47 dB(A)
• Material: steel sheet, black (RAL 9005)
• Protection class: IP20
• Power cable length: 2 metres
• Mounting: roof mounting, 19-inch rack compatible
• Installation: plug & play

Recommendations

For optimal performance, position the fan unit at the highest point of the rack to expel hot air efficiently. Combine with a temperature monitoring system for proactive cooling management. Ensure the rack's top panel has a suitable cut-out for the fan unit's dimensions.
