DS-IT pannello verticale per gestione cavi 37U largo 30cm nero acciaio

Unlike generic cable trays that leave slack dangling and airflow blocked, the DSIT DS-CABLETRAY-37U-30 vertical cable management panel gives every cable a defined path along the side of the rack. Its 30 cm width and 37U height create a generous channel for high-density fibre, copper and power bundles, while the single-sided finger openings keep patching and moves fast and controlled.

Highlights

• 37U vertical panel for 19-inch server racks
• 300 mm width provides ample room for cable bundles
• Finger openings along the full height for clean routing
• Powder-coated steel construction for durability
• Black finish blends with standard rack hardware
• RoHS compliant

In daily use

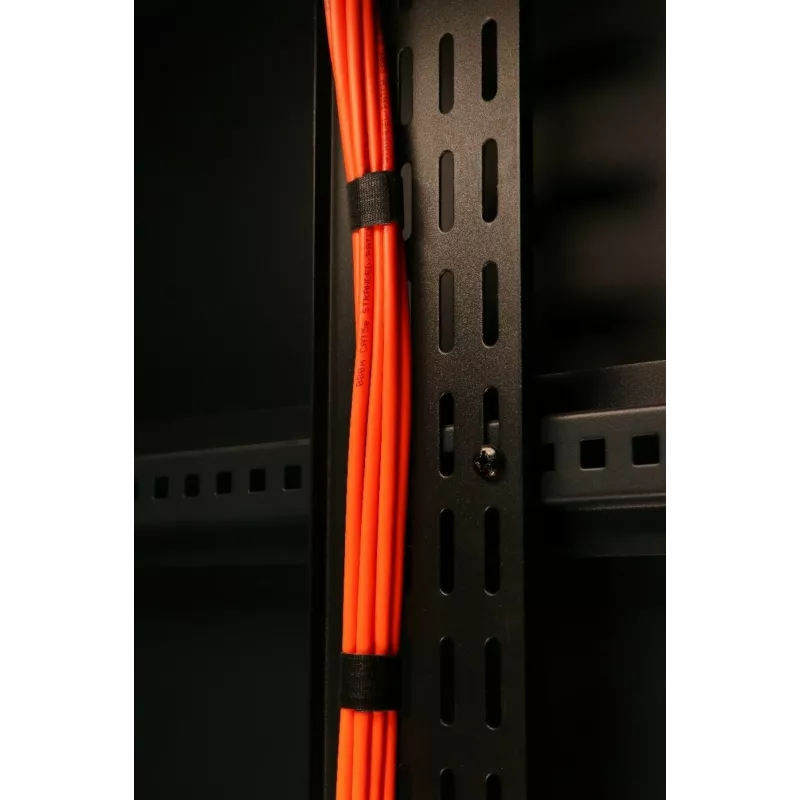

Mount the panel vertically on the side of the rack frame using the included screw-in hardware. Route cables through the openings, separating power and data to reduce interference and improve airflow. The single-sided design keeps the front of the rack unobstructed, while the 100 mm depth allows cables to be tucked neatly without sharp bends. During moves, adds or changes, the open fingers let technicians access individual cables without disturbing the entire bundle.

Full specifications

• Type: Vertical Cable Management Panel
• Rack Unit Height: 37U
• Panel Width: 300 mm
• Mounting Orientation: Vertical
• Rack Compatibility: 19-inch Server Racks
• Material: Steel
• Colour: Black
• Finish: Powder Coated
• Cable Access Type: Openings / Fingers
• Mounting Position: Side of Rack Frame
• Function: Cable Organization and Routing
• Overall Dimensions (HxWxD): 1645 x 300 x 100 mm
• Installation: Screw-in (Rack Frame Mounting)
• Design: Single-sided
• Environmental Compliance: RoHS

Final note

For data centres and network closets where cable chaos is a daily risk, the DSIT DS-CABLETRAY-37U-30 delivers a robust, no-nonsense solution that keeps infrastructure tidy and serviceable.
