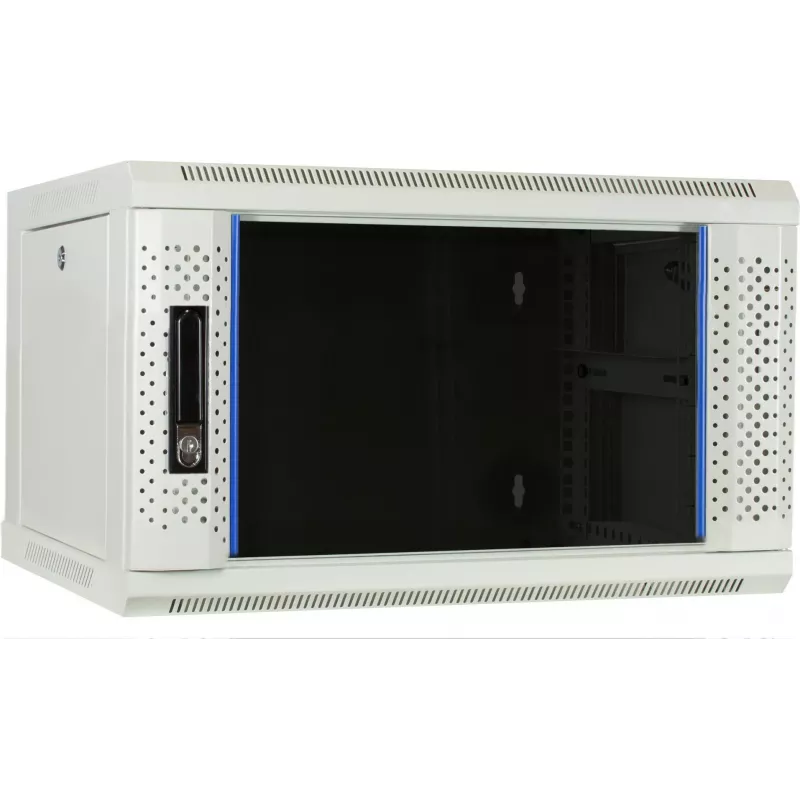

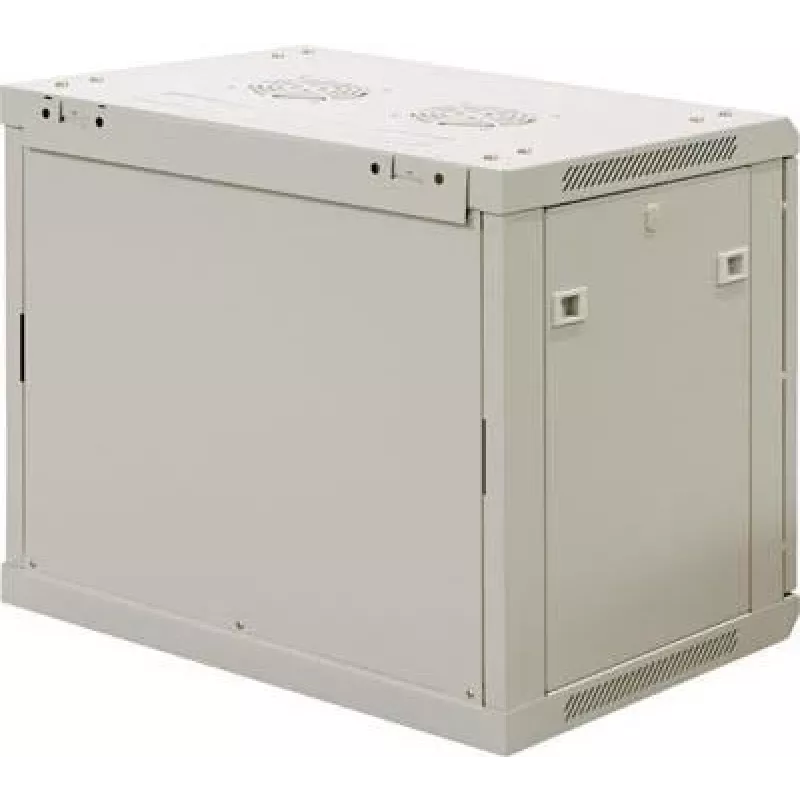

DSIT DS6406W armadio server da parete 6U con porta in vetro, bianco, 600 x 450 x 367 mm

When floor space is at a premium, the DSIT DS6406W proves that a server cabinet doesn't need to be a full-depth floor-standing rack. This 6U wall-mount enclosure pairs a tempered-glass front door with a compact 367 mm depth, making it a natural fit for corridors, offices, and technical rooms where every square metre counts. The white powder-coated steel body keeps the unit visually light and blends easily into modern interiors, while the 60 kg load capacity accommodates patch panels, small switches, and shallow network devices without compromise.

Highlights

• 6U wall-mount cabinet with 19-inch adjustable rails (EIA-310-D / IEC 60297-2)
• Front door with tempered glass, lockable; side panels removable and lockable
• SPCC cold-rolled steel frame, welded, powder-coated in white (RAL 9016)
• Passive ventilation slots on top and bottom, cable entry on both faces
• Load capacity 60 kg; external dimensions 600 × 450 × 367 mm (W × D × H)
• Fully assembled, includes 2 keys and mounting hardware

In daily use

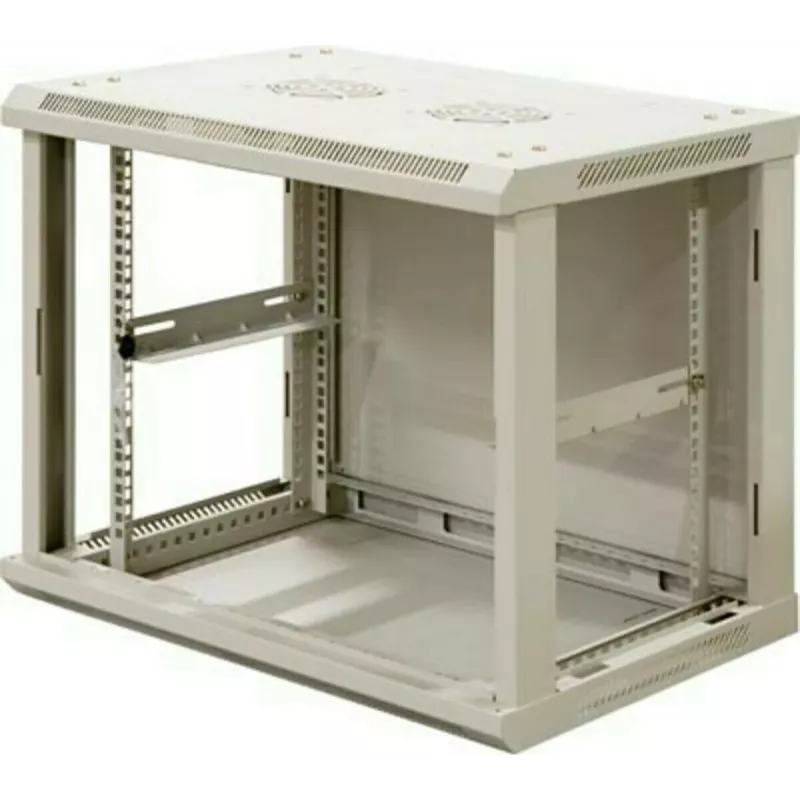

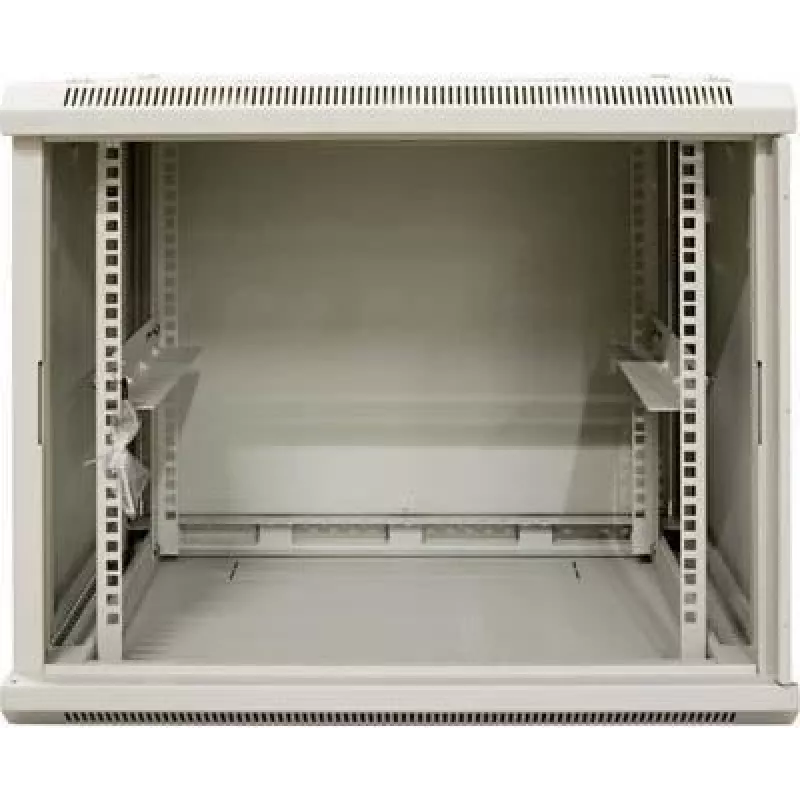

Installation is straightforward: the pre-assembled cabinet mounts to a solid wall using the included hardware, and the adjustable 19-inch rails slide to the depth required by your equipment. The glass door gives a clear view of status LEDs without opening the cabinet, and the lock keeps casual access out. Removable side panels simplify cabling and maintenance, while top and bottom knockouts allow clean cable routing from either direction. Passive ventilation slots support natural airflow for low-power devices; for higher heat loads, consider active fan trays.

Full specifications

• Rack capacity: 6U
• Mounting type: Wall-mount cabinet
• Front door construction: Tempered glass
• Product colour: White
• External dimensions (W × D × H): 600 × 450 × 367 mm
• Material: SPCC cold-rolled steel
• Surface finish: Powder coated
• International Protection (IP) code: IP20
• Maximum weight capacity: 60 kg
• Side panels: Removable, lockable
• Cable entry: Top and bottom
• Cooling type: Passive
• Rack rails: 19-inch, adjustable depth
• Key lock: Yes
• Frame type: Welded
• Standards compliance: EIA-310-D, IEC 60297-2
• Assembly: Fully assembled
• Included accessories: 2 keys, mounting hardware

Final note

The DSIT DS6406W delivers secure, space-efficient equipment housing with a professional appearance—ideal for structured cabling and small network deployments in space-constrained environments.
