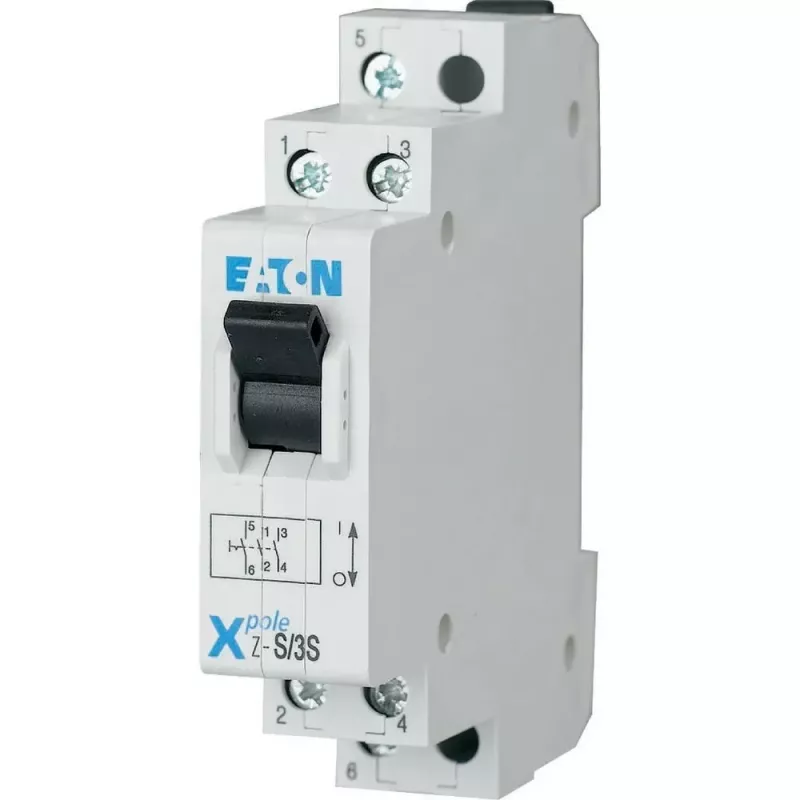

Eaton 248334 interruttore di comando 16A 3 poli 1TE 230/400V

Rated at 16 A and 230/400 V AC, this 3-pole control switch from Eaton delivers reliable ON/OFF switching in a compact 1 TE (18 mm) DIN rail module.

Overview

The Eaton 248334 is a modular control switch designed for industrial and building automation applications. It features three normally open contacts, screw terminals for solid or flexible conductors, and a front protection rating of IP40.

What stands out

• 3-pole switching with 16 A current rating
• Ultra-compact 1 TE (18 mm) width for space-saving DIN rail installation
• High mechanical life of over 100,000 operations
• Wide operating temperature range from -25°C to +50°C

Technical details

• Rated operational voltage: 230/400 V AC
• Rated insulation voltage: 440 V AC
• Number of poles: 3
• Number of normally open contacts: 3
• Number of normally closed contacts: 0
• Module width: 1 TE (18 mm)
• Mounting type: DIN rail (EN 60715)
• Connection type: screw terminals
• Terminal capacity solid: 1.5 - 10 mm²
• Terminal capacity flexible: 1.5 - 6 mm²
• Electrical life: over 10,000 operations
• Mechanical life: over 100,000 operations
• Degree of protection: IP20 terminals, IP40 front
• Operating temperature range: -25°C to +50°C
• Standard compliance: IEC/EN 60669-1

Our verdict

A robust and compact control switch that fits standard DIN rail setups, offering dependable performance for switching circuits up to 16 A.
