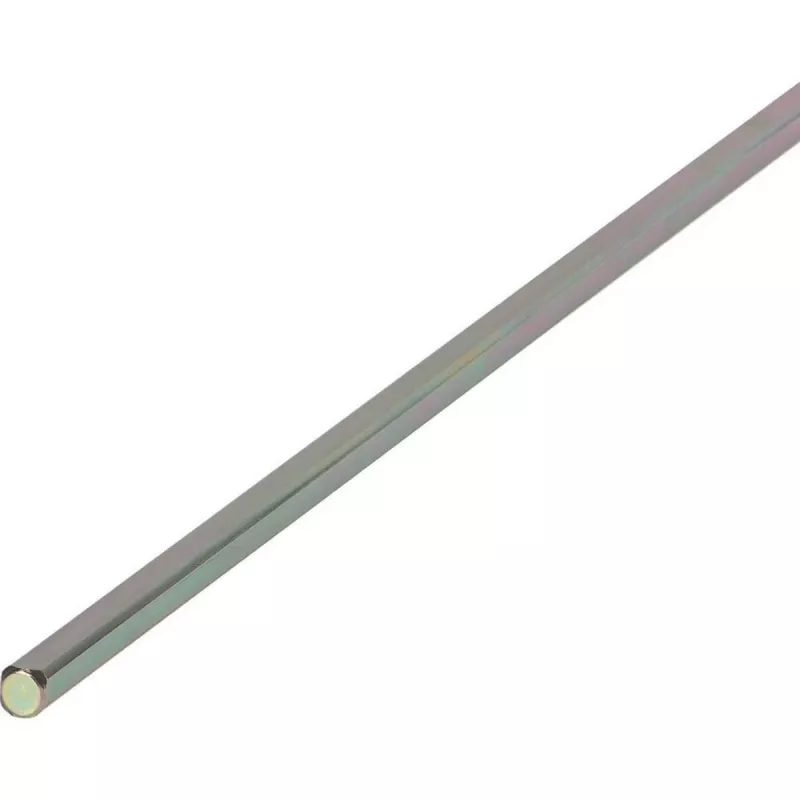

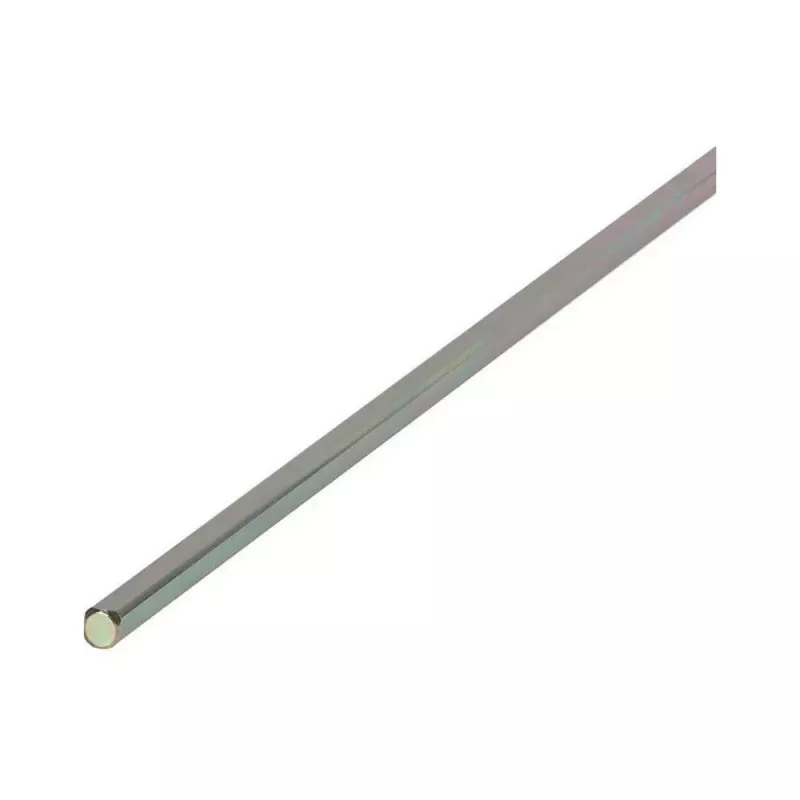

Eaton 261232 Albero di prolunga 400mm per interruttori automatici NZM1/2, N(S)1/2

When a circuit breaker is mounted deep inside an enclosure, its rotary handle may be out of reach. The Eaton 261232 extension shaft bridges that gap, allowing the external operator to actuate the breaker reliably from a distance of up to 400 mm.

Who is it for

Panel builders and maintenance technicians working with Eaton NZM1, NZM2, N(S)1, or N(S)2 circuit breakers in industrial power distribution and control systems. It suits applications where the breaker is recessed behind a door or panel and must be operated from the outside.

Main features

• Extends the reach of external rotary operators to the circuit breaker
• Compatible with Eaton NZM1, NZM2, N(S)1, and N(S)2 series
• Maximum installation depth: 400 mm
• Steel construction for durability
• Mechanical extension component for internal mounting

Specifications

• Product Type: Extension Shaft
• Compatibility: Eaton NZM1, NZM2, N(S)1, N(S)2
• Max. Installation Depth: 400 mm
• Material: Steel
• Function: Extends reach of external rotary handle
• Application: Industrial Control, Power Distribution

Tips

Verify the required shaft length before ordering; this model is for installations up to 400 mm deep. For deeper panels, a longer shaft or additional extension may be needed.
