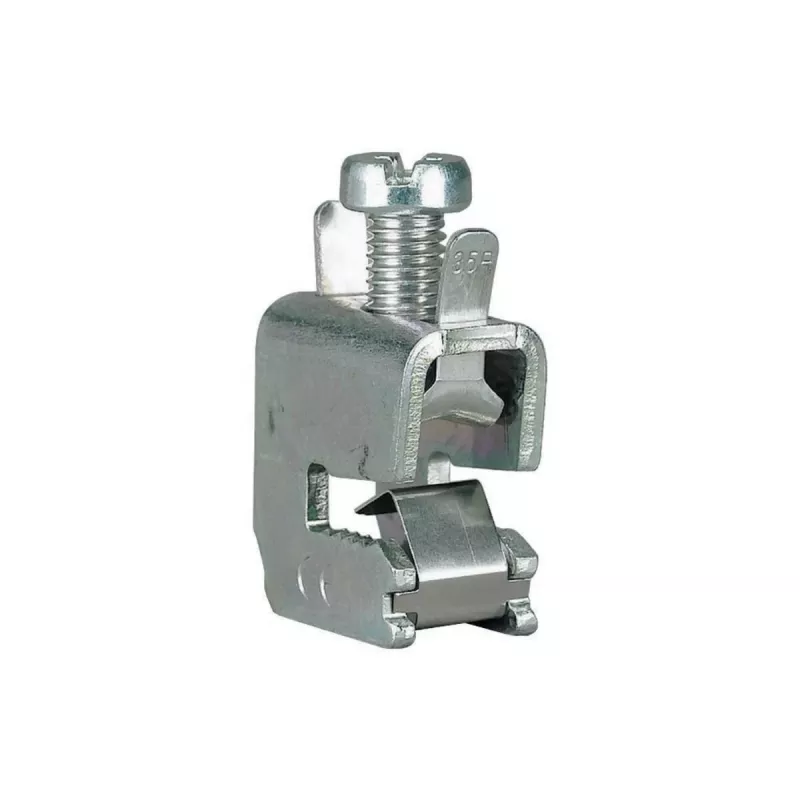

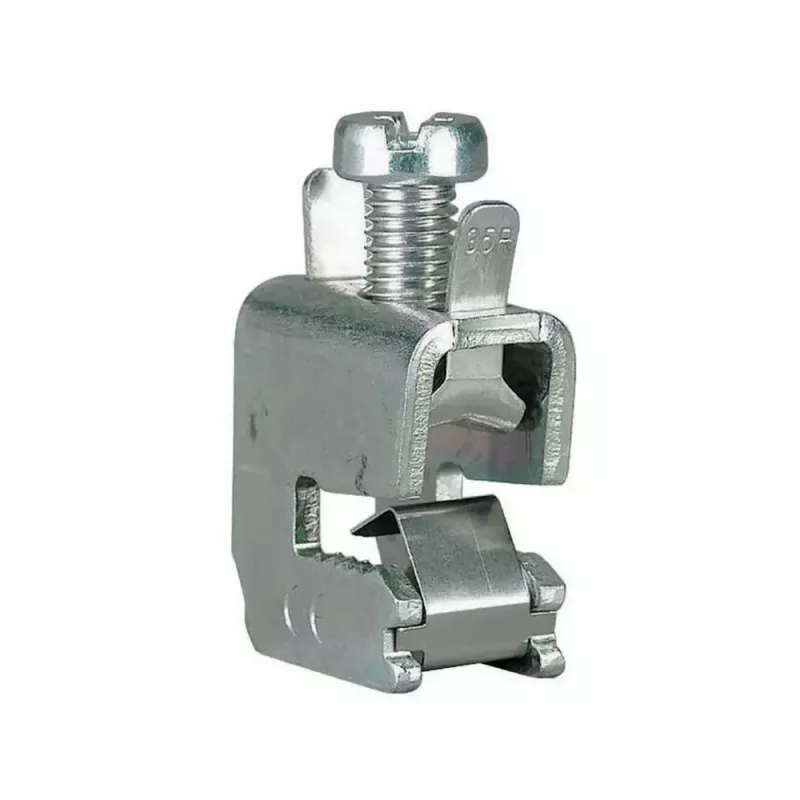

Eaton AKU35/5 morsetto per conduttore, 4-35 mm², per sbarra collettrice 5 mm 107188

Conductor terminal for connecting conductors with cross-sections from 4 to 35 mm² to 5 mm thick busbars. The screw terminal ensures a secure and durable electrical connection.

Advantages

Single-pole design for straightforward installation. Polyamide insulation provides reliable electrical isolation and mechanical stability. Rated for currents up to 125 A and voltages up to 690 V, suitable for demanding industrial applications.

Suitable for

• Connecting flexible or rigid conductors to busbars in distribution boards and control cabinets
• Applications requiring a compact, high-current terminal with busbar mounting

Key specifications

• Conductor cross-section: 4–35 mm² (flexible or rigid)
• Busbar thickness: 5 mm
• Connection type: screw terminal
• Rated current: 125 A
• Rated voltage: 690 V
• Insulation material: polyamide
• Colour: grey
• Operating temperature: -25 °C to +70 °C

Recommendations

Verify that the busbar thickness matches 5 mm and the conductor cross-section falls within 4–35 mm² before installation. Tighten the screw terminal to the manufacturer's recommended torque to ensure a reliable connection.
