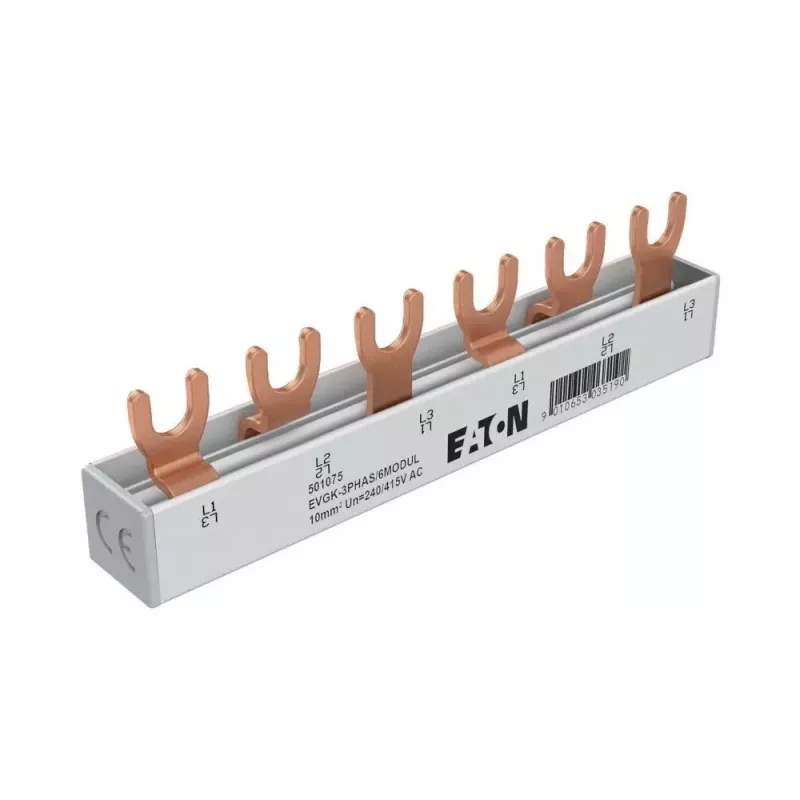

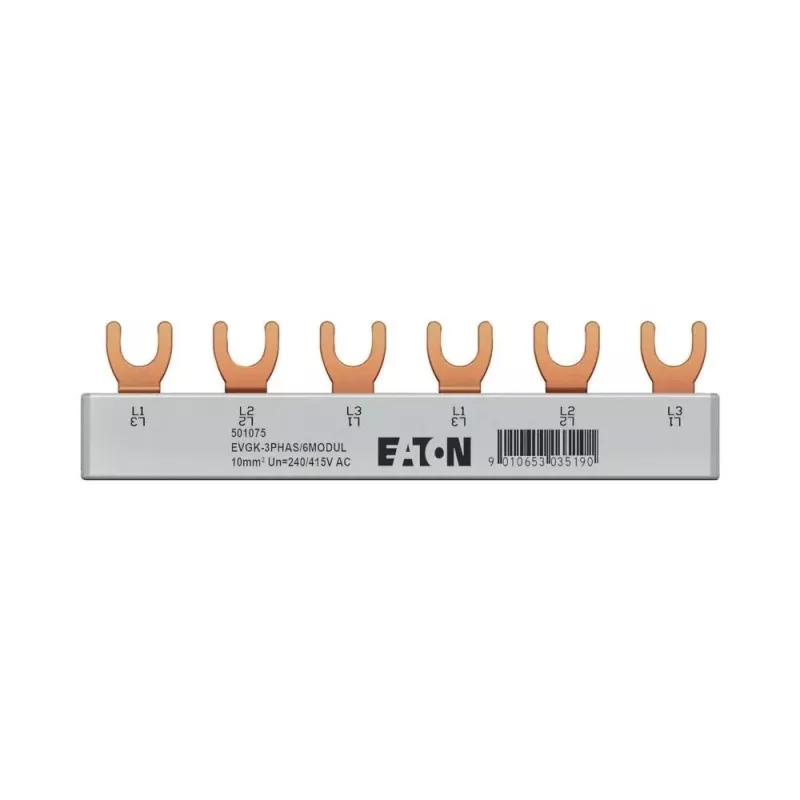

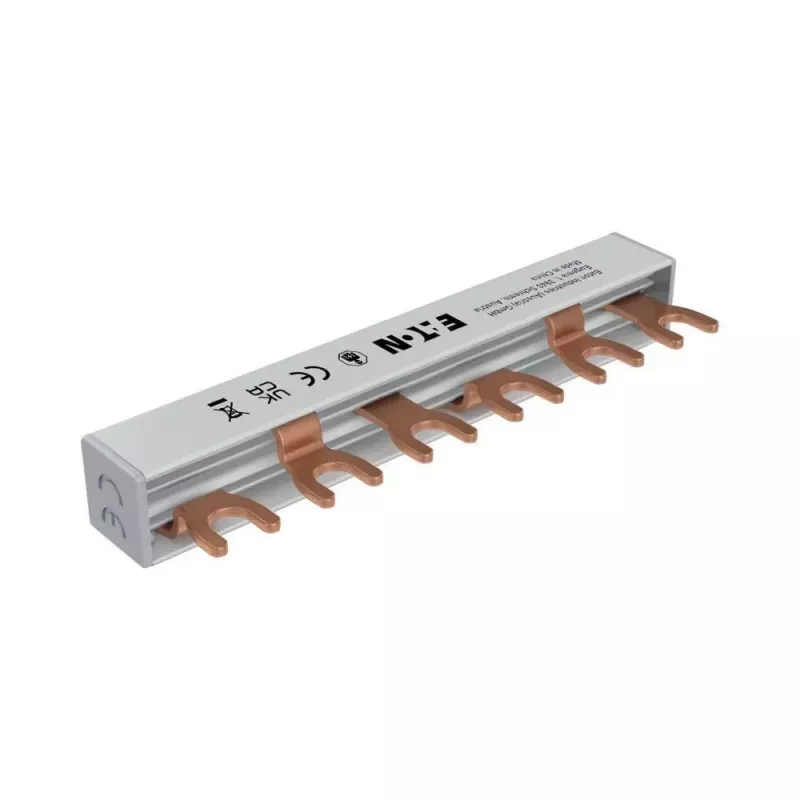

Eaton barra di distribuzione trifase a forcella EVGK-3PHAS/6MODUL 63A 400V 6 moduli (EP-501075)

Rated at 63 A and 400 V AC, this 3-phase fork busbar connects up to six modular devices with a 10 kA short-circuit withstand rating.

Overview

The Eaton EVGK-3PHAS/6MODUL is a 3-phase fork-type busbar designed for DIN rail modular devices. It features a 10 mm² copper conductor with self-extinguishing plastic insulation, providing reliable power distribution in electrical installations.

What stands out

• 63 A rated current and 400 V AC rated voltage
• 10 kA short-circuit withstand for 1 second
• Fork connection for quick and secure installation
• 18 mm pole spacing matches standard modular devices
• Operating temperature range -25 to +50 °C

Technical details

• Type: Fork busbar
• Number of phases: 3
• Number of modules: 6
• Number of poles: 3
• Rated impulse withstand voltage: 4 kV
• Cross-section: 10 mm²
• Conductor material: Copper
• Insulation material: Self-extinguishing plastic
• Degree of protection: IP20

Our verdict

A robust 3-phase busbar for efficient power distribution in modular installations, with high current capacity and reliable short-circuit protection.
