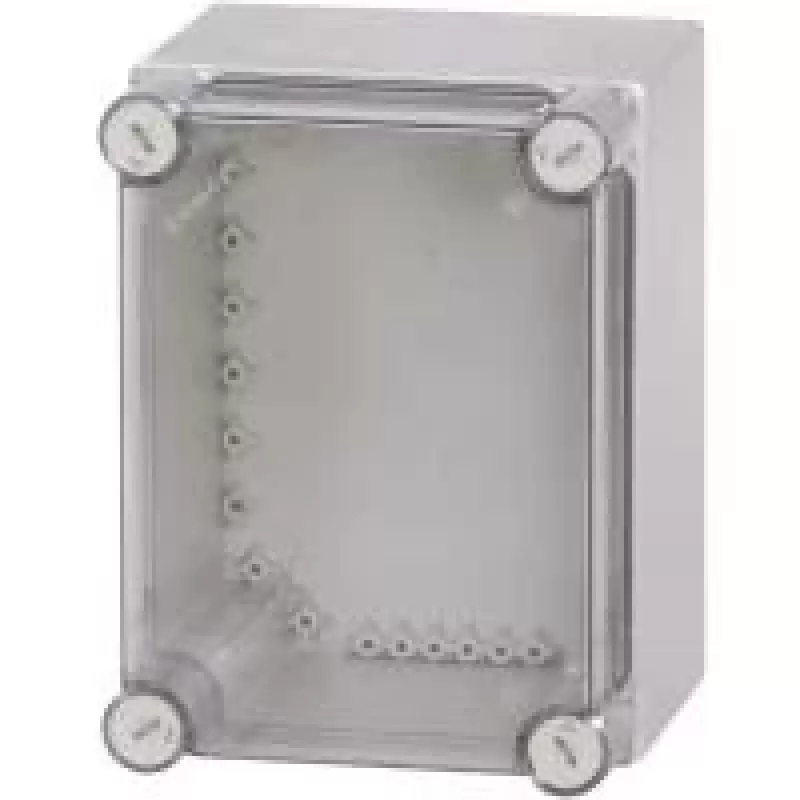

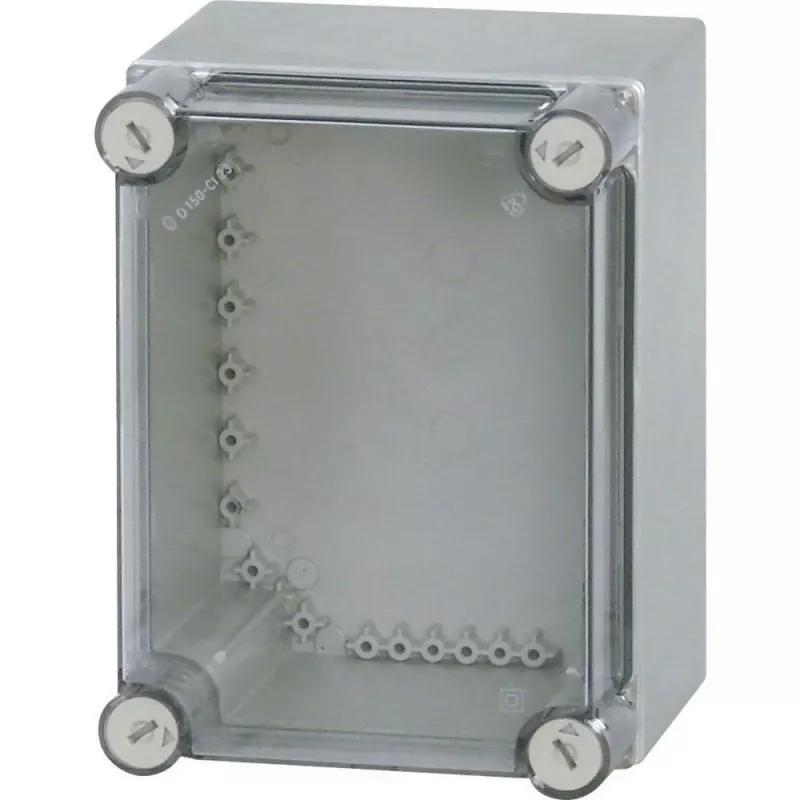

Eaton Custodia universale 175 x 187,5 x 250 policarbonato grigio CI23X-150 (15154)

With an IP65 protection rating and IK08 impact resistance, this Eaton universal enclosure keeps electrical components safe from dust, water jets, and mechanical impacts. The polycarbonate body delivers excellent insulation, UV stability, and halogen-free safety, making it a dependable choice for industrial and outdoor installations.

Overview

The Eaton CI23X-150 is a robust universal enclosure designed to house electrical and electronic equipment in demanding environments. Its compact footprint of 175 x 187.5 x 250 mm (W x D x H) offers ample space for terminals, controllers, and small devices, while the grey RAL 7035 finish blends seamlessly into modern installations. The enclosure features a solid opaque door with a quarter-turn plastic lock, providing quick yet secure access for maintenance.

What stands out

• High protection: IP65 sealing against dust and water jets, suitable for washdown areas.
• Impact resistant: IK08 rating withstands 5 joules of impact energy, reducing damage risk.
• Durable material: UV-stabilised polycarbonate resists yellowing and brittleness in sunlight.
• Safe by design: Halogen-free and UL 94 V-2 flammability rated, with 750 °C glow wire compliance.
• Flexible mounting: Surface or wall mounting options for easy integration.

Technical details

• External dimensions: 175 mm width × 187.5 mm depth × 250 mm height.
• Material: Polycarbonate (PC), grey RAL 7035.
• Protection class: IP65 (dust-tight and protected against water jets).
• Impact resistance: IK08 (5 joules).
• Door: Opaque solid door with quarter-turn plastic lock.
• Operating temperature: -35 °C to +80 °C.
• Flammability rating: UL 94 V-2; glow wire test 750 °C (IEC/EN 60695-2-11).
• Standards compliance: IEC/EN 62208.
• Halogen-free and UV resistant.

Our verdict

For engineers and installers needing a compact, weatherproof enclosure that won't crack under pressure, the Eaton CI23X-150 delivers reliable protection with a clean, professional look. Its polycarbonate construction and high IP rating make it a smart investment for long-term outdoor or washdown applications.
