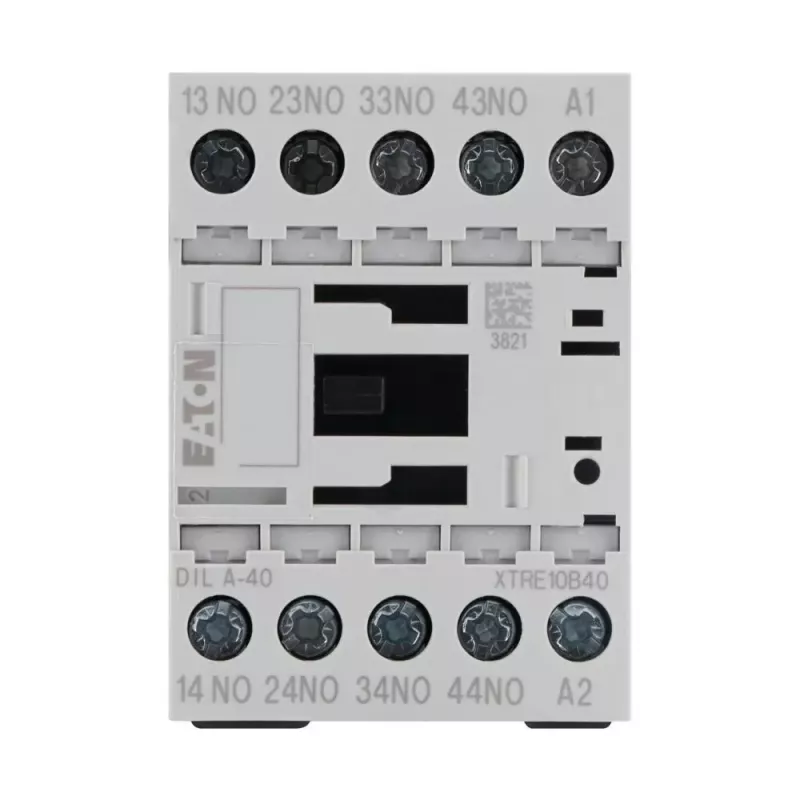

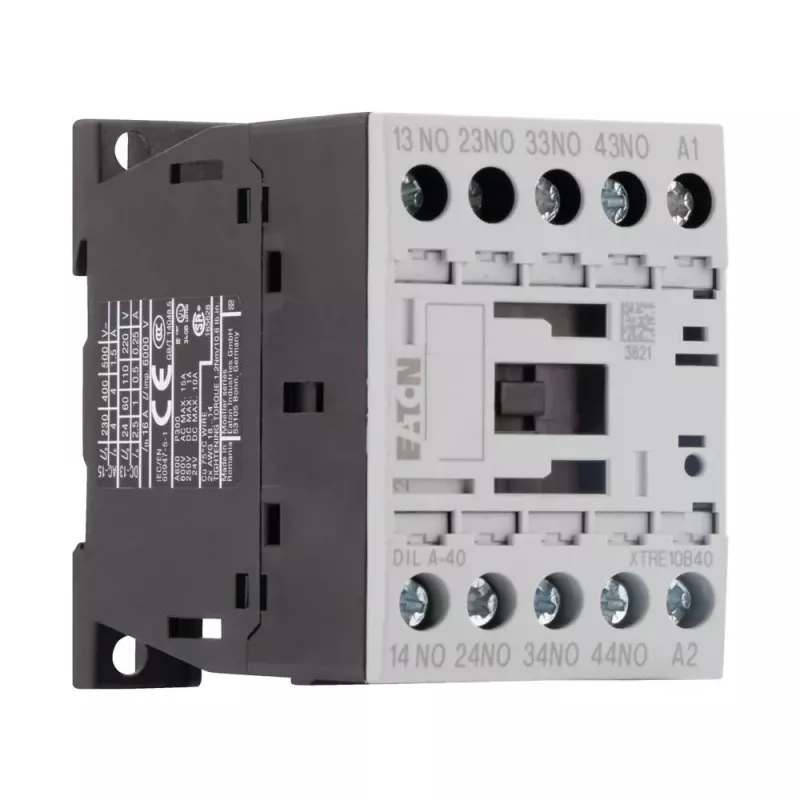

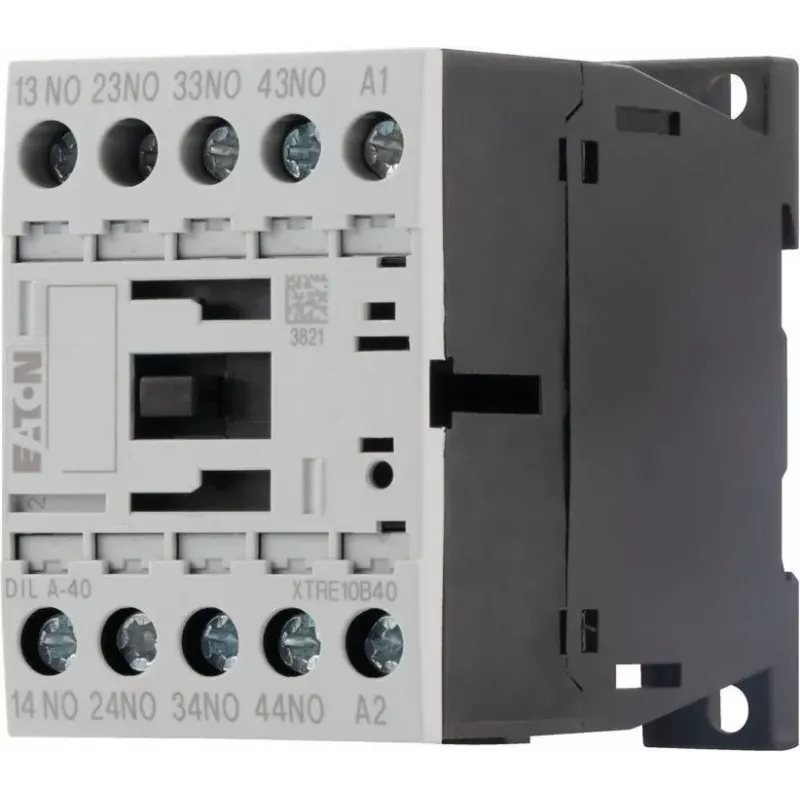

Eaton DILA-40 contattore ausiliario, 4NO, bobina 230V AC 276337

The Eaton DILA-40 auxiliary contactor provides reliable switching of control circuits with four normally open contacts. Its 230V AC coil operates at 50/60 Hz, making it suitable for a wide range of industrial applications.

Advantages

Compact design fits standard 35 mm DIN rails or screw mounting. High mechanical durability of 10 million operations ensures long service life. Rated insulation voltage of 690V AC allows use in systems up to that voltage.

Suitable for

• Control circuit switching in industrial machinery
• Motor control and automation systems
• Building installation and HVAC control

Key specifications

• 4 poles, 4 normally open contacts
• Coil voltage: 230V AC, 50/60 Hz
• Rated operational current: 4 A at AC-15, 220-240V
• Rated insulation voltage: 690V AC
• Mounting: DIN rail or screw
• Degree of protection: IP20

Recommendations

Verify coil voltage compatibility before installation. Use appropriate wire sizes for screw terminals. Ensure ambient temperature stays within -25 to +60 °C.
