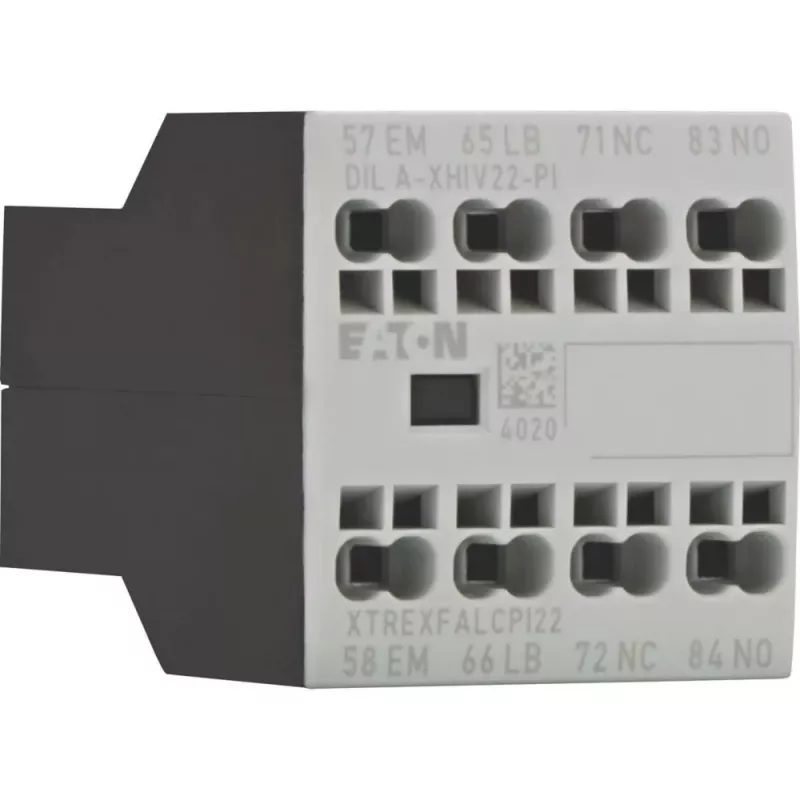

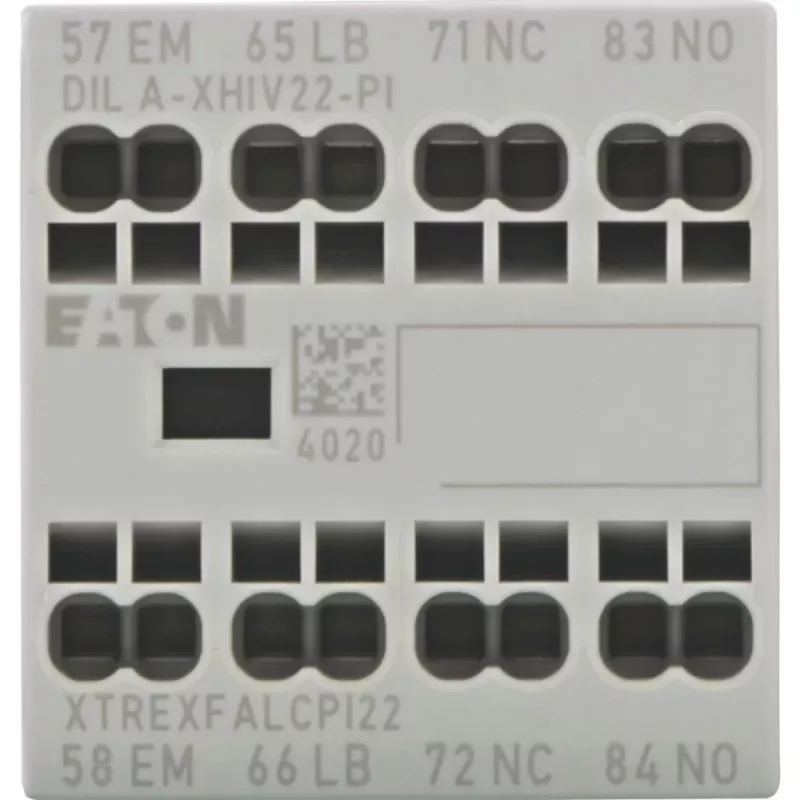

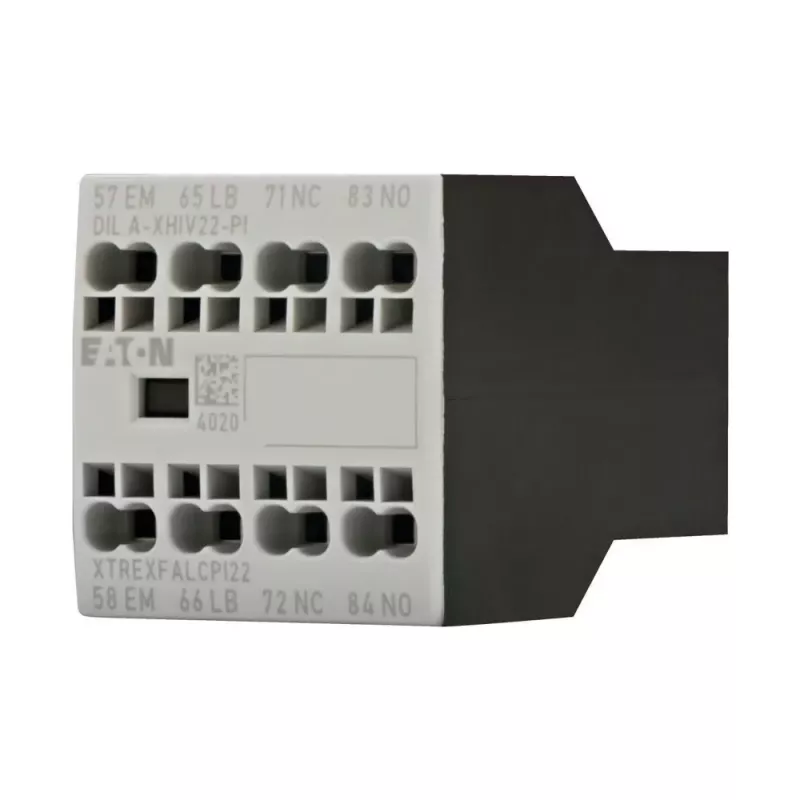

EATON DILA-XHIV22-PI blocco contatti ausiliari, 4 poli, 2NO+2NC, 16 A, montaggio laterale 199322

In industrial control systems, auxiliary contact blocks expand the signaling and interlocking capabilities of contactors. The EATON DILA-XHIV22-PI provides four additional contacts—two normally open and two normally closed—for reliable control circuit integration. Its side mounting design fits directly onto compatible EATON DILM contactors, saving panel space and simplifying wiring.

Who is it for

Electrical engineers, panel builders, and maintenance technicians who need to add auxiliary contacts to EATON DILM7–DILM38 contactors for status feedback, electrical interlocking, or control logic.

Main features

• 4-pole auxiliary contact block with 2 NO and 2 NC contacts
• Rated thermal current (Ith) of 16 A for robust control circuits
• Side mounting for quick and secure attachment to compatible contactors
• Screw terminals for reliable field wiring
• Rated insulation voltage up to 690 V

Specifications

• Number of poles: 4
• Contact configuration: 2 NO + 2 NC
• Rated thermal current (Ith): 16 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Degree of protection: IP20
• Operating temperature range: -25 to +60 °C
• Compatibility: EATON DILM7 to DILM38 contactors

Tips

Verify the contactor model before ordering; the DILA-XHIV22-PI is designed for side mounting on DILM7 through DILM38. Ensure the control circuit current does not exceed 16 A thermal rating.
