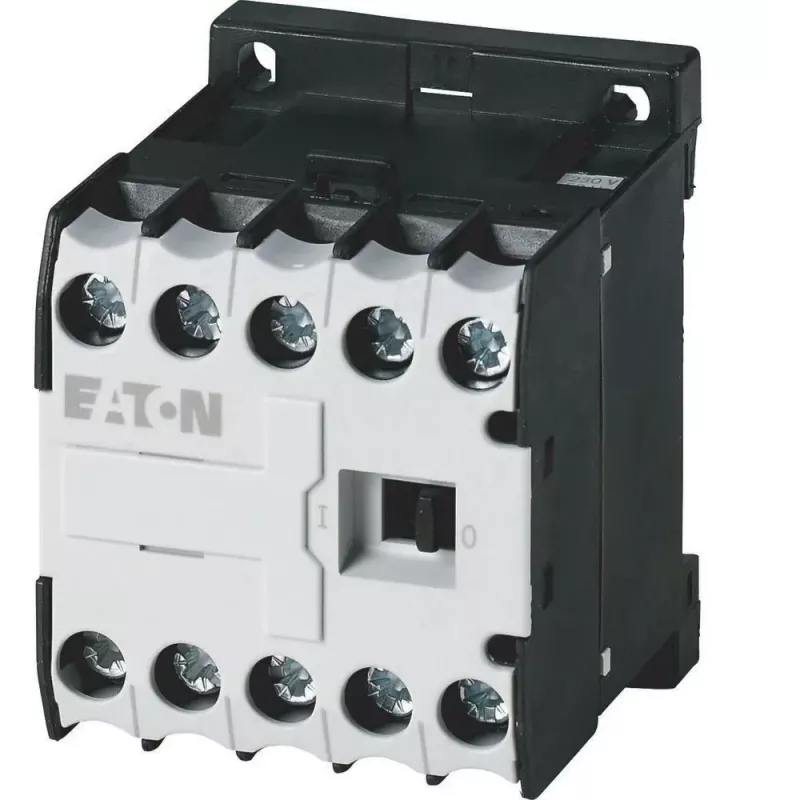

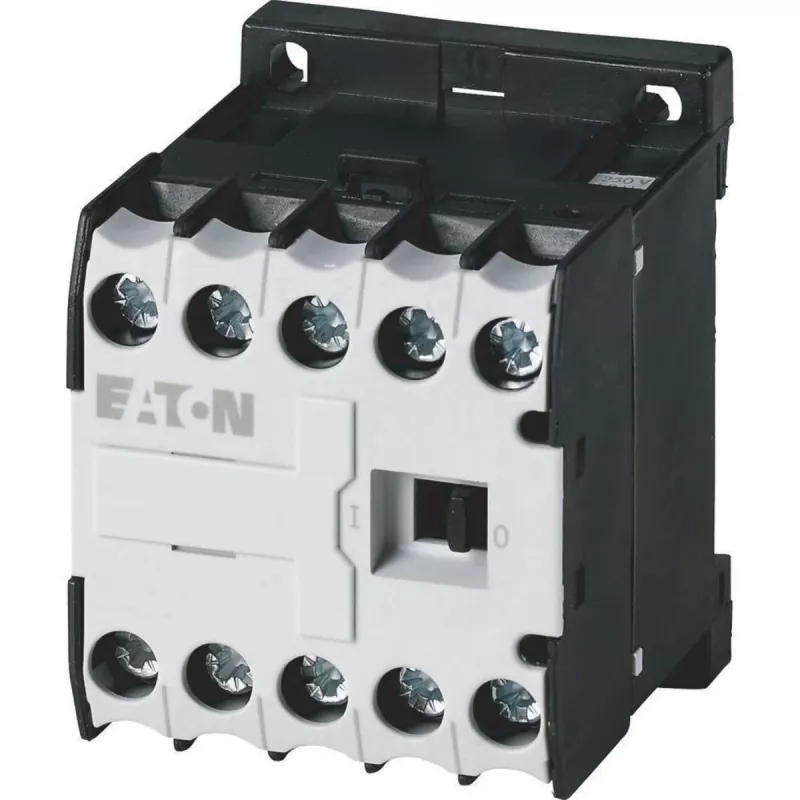

Eaton DILER-40-G(24VDC) mini contattore, 4 NO, bobina 24 V DC 010223

The Eaton DILER-40-G(24VDC) is a compact mini contactor from the DILER series, offering four normally open contacts and a 24 V DC coil. Its small footprint and DIN rail mounting make it a practical choice for control circuits in industrial applications where space is limited.

Highlights

• 4 NO main contacts for switching loads up to 4 A at 230 V AC
• 24 V DC coil voltage for low-voltage control systems
• DIN rail or screw mounting for flexible installation
• IP20 protection suitable for use in enclosed panels
• Long mechanical life of 20 million operations

In daily use

This contactor is designed for switching auxiliary circuits and small motors. With screw terminals, wiring is straightforward, and the compact size allows dense packing in control cabinets. The 24 V DC coil is compatible with standard PLC outputs and safety relays.

Full specifications

• Contact configuration: 4 NO
• Coil voltage: 24 V DC
• Rated operational current (AC-15, 230 V): 4 A
• Rated operational current (DC-13, 24 V): 1 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Mounting: DIN rail / screw
• Protection degree: IP20
• Ambient operating temperature: -25 to +60 °C
• Electrical life (AC-15): 1.5 x 10^6 operations
• Mechanical life: 20 x 10^6 operations
• Terminal type: screw terminals
• Standards: IEC/EN 60947, VDE 0660, UL, CSA

Final note

A reliable and compact switching solution for automation and control applications, backed by Eaton's engineering quality.
