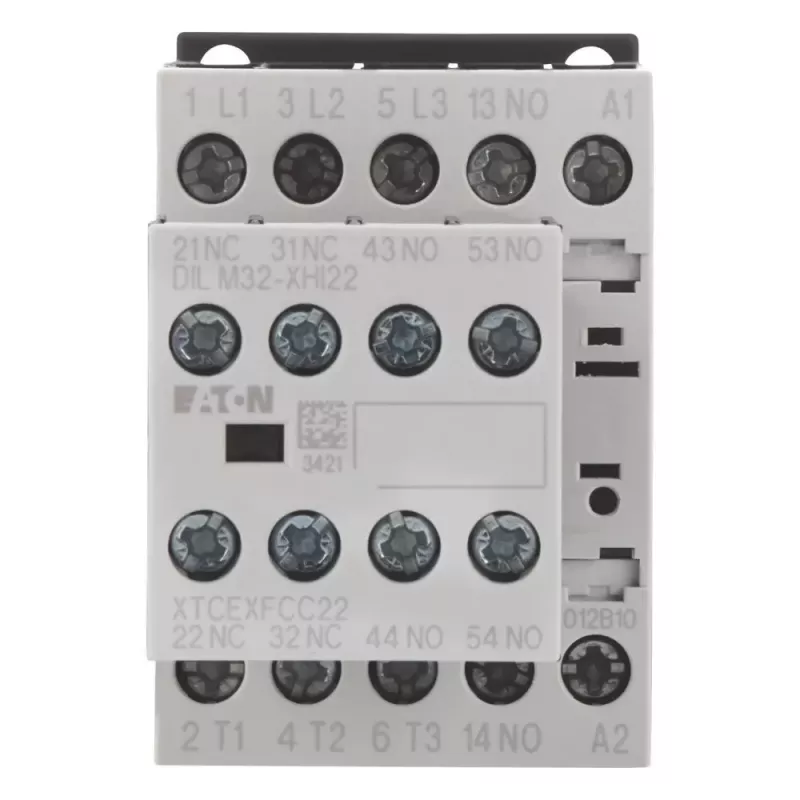

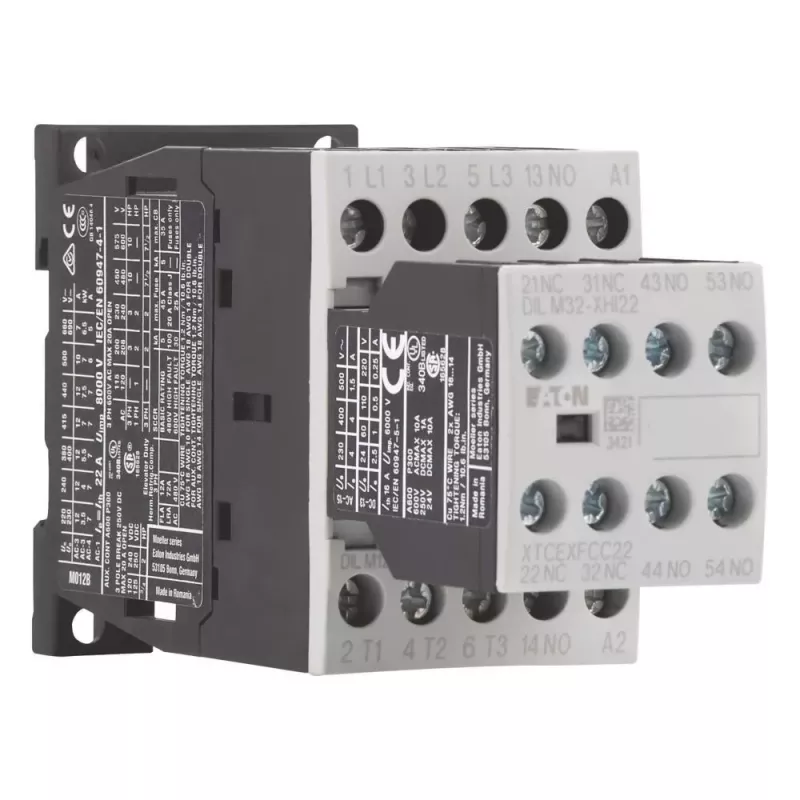

Eaton DILM12-32 230 contattore di potenza, tripolare, 5,5 kW, bobina 230 V AC 276935

Power contactor with 3 main poles and 2NO+2NC auxiliary contacts, rated for 5.5 kW at 400 V AC-3, with a 230 V AC coil. Suitable for switching motors and other loads up to 12 A (AC-3).

Advantages

High electrical and mechanical durability, compact DIN rail or screw mounting, and compliance with international standards ensure reliable operation in industrial control systems.

Suitable for

• Motor starting and stopping in industrial machinery
• Heating, lighting, and other non-inductive loads up to 22 A (AC-1)
• Control circuits requiring auxiliary contacts for interlocking or signaling

Key specifications

• Rated operational current (AC-3, 400 V): 12 A
• Rated operational power (AC-3, 400 V): 5.5 kW
• Control coil voltage: 230 V AC (50/60 Hz)
• Number of poles: 3
• Auxiliary contacts: 2 NO + 2 NC
• Rated insulation voltage: 690 V
• Mechanical durability: 10 million operations
• Electrical durability (AC-3): 1.5 million operations

Recommendations

Use a 25 A gG/gL fuse for short-circuit protection. Mount on 35 mm DIN rail or with screws in a protected enclosure (IP20).
