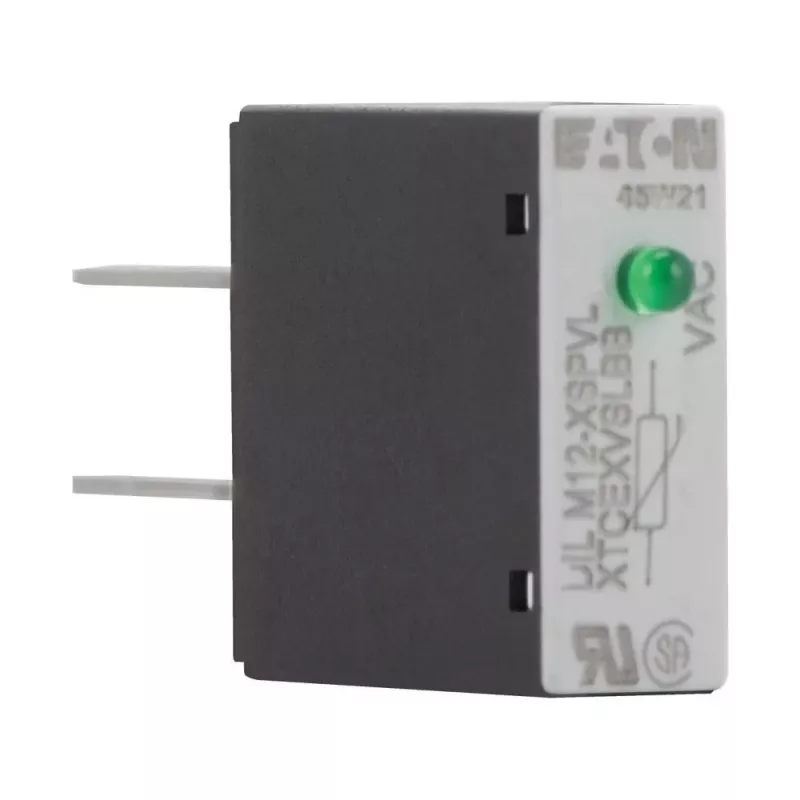

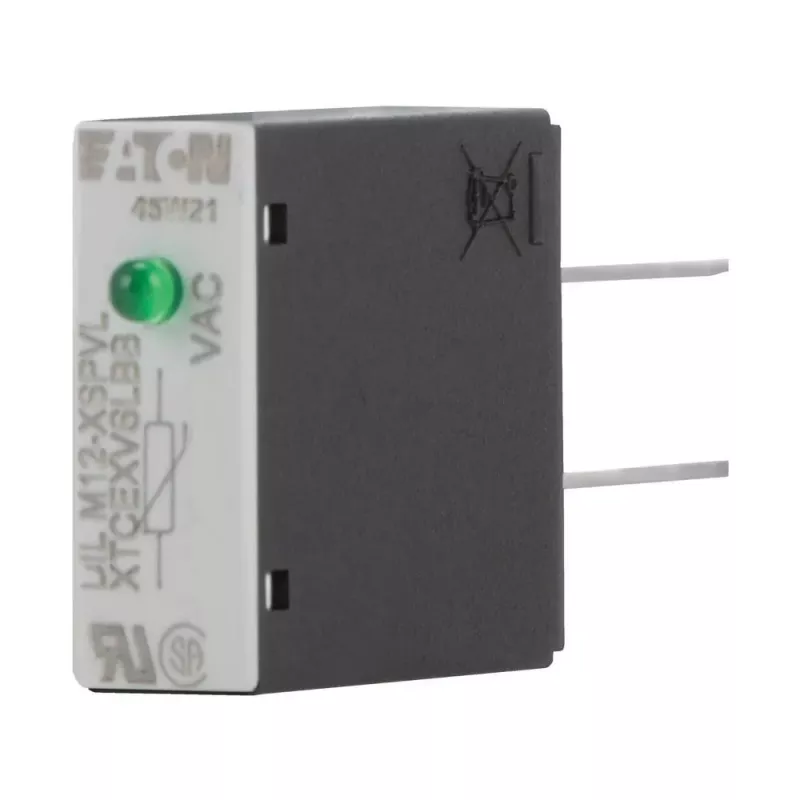

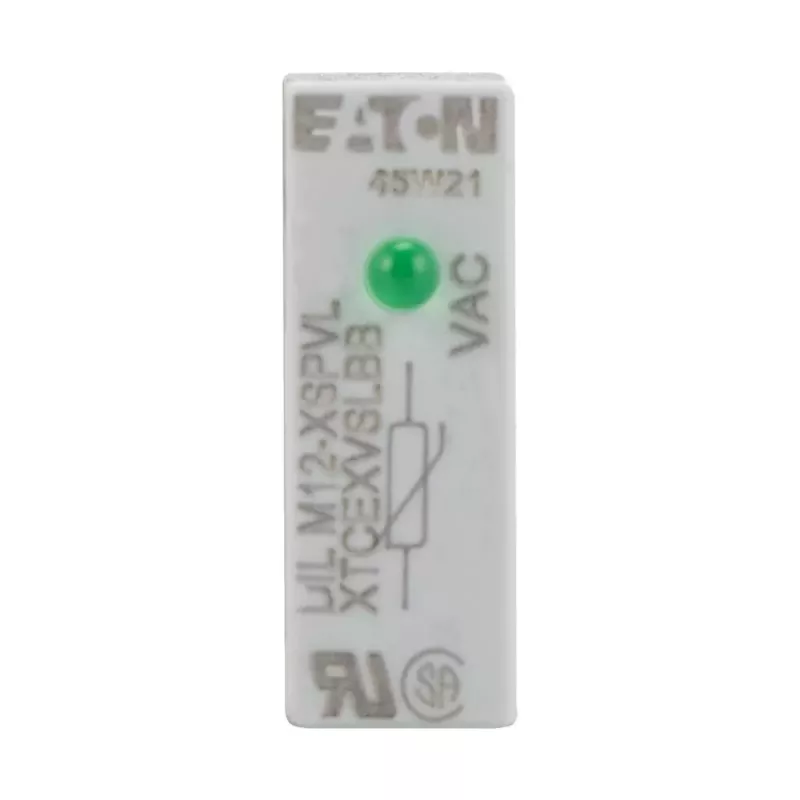

Eaton DILM12-XSPVL240 soppressore RC, 240 V AC, per contattori DILM7/9/12 281221

Protect your contactor coils from voltage spikes with the Eaton DILM12-XSPVL240 suppressor link. Rated for 240 V AC, this RC element plugs directly into DILM7, DILM9, and DILM12 contactors, quenching arcs and suppressing surges to extend coil life.

Overview

The DILM12-XSPVL240 is a resistor-capacitor (RC) suppressor designed for AC control circuits. It is a plug-in module that fits Eaton's DILM series contactors, providing overvoltage protection and arc quenching. With a rated control circuit voltage of 240 V AC, it is suitable for standard industrial control applications.

What stands out

• Direct plug-in mounting for quick installation
• RC element suppresses voltage spikes and reduces arcing
• Compatible with DILM7, DILM9, and DILM12 contactors
• Compact design with IP20 protection

Technical details

• Product type: Suppressor / quenching link
• Suppressor type: RC element (resistor-capacitor)
• Rated control circuit voltage: 240 V AC
• Voltage type: AC
• Contactor compatibility: DILM7, DILM9, DILM12
• Mounting method: Plug-in
• Degree of protection: IP20
• Ambient operating temperature: -25 to +60 °C
• Storage temperature: -40 to +80 °C
• Standards: IEC/EN 60947

Our verdict

A reliable suppressor link that integrates seamlessly with Eaton DILM contactors, ensuring stable operation and prolonged coil life in AC control circuits.
