Eaton DILM150-XHI40 contatto ausiliario 4NO montaggio frontale per contattori DILM 277948

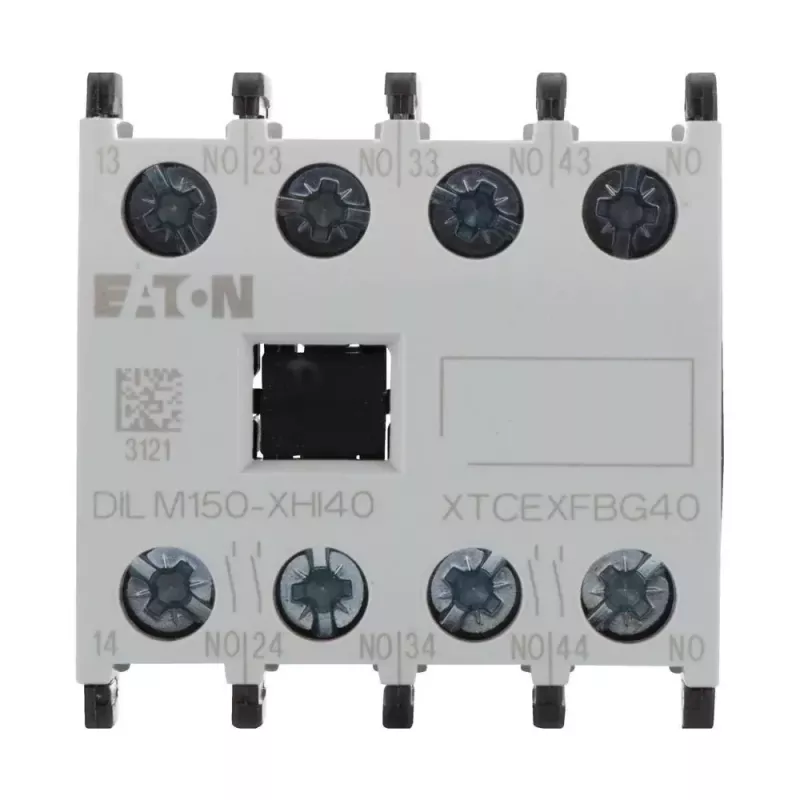

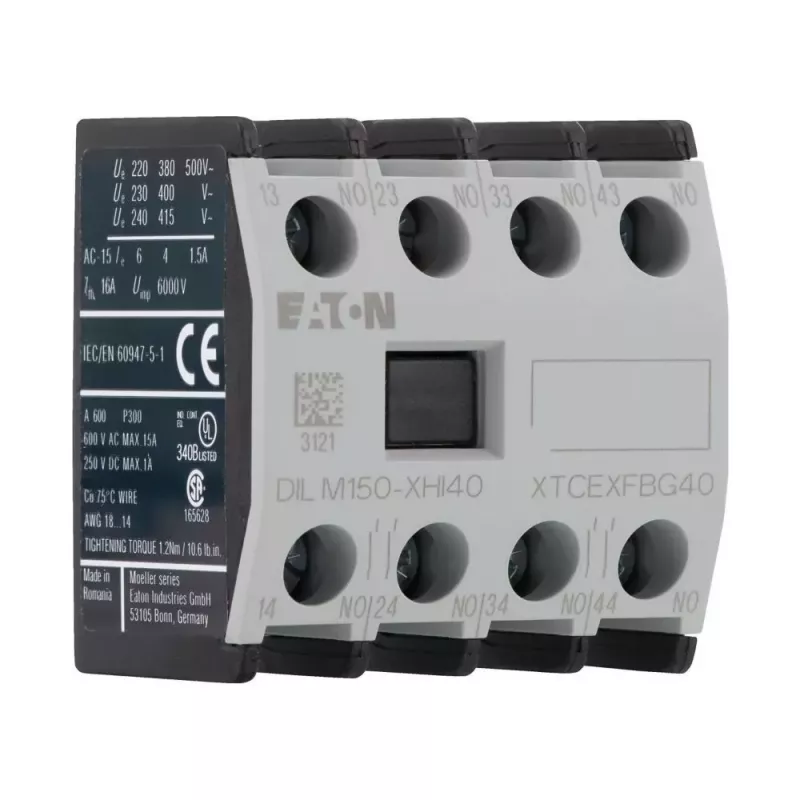

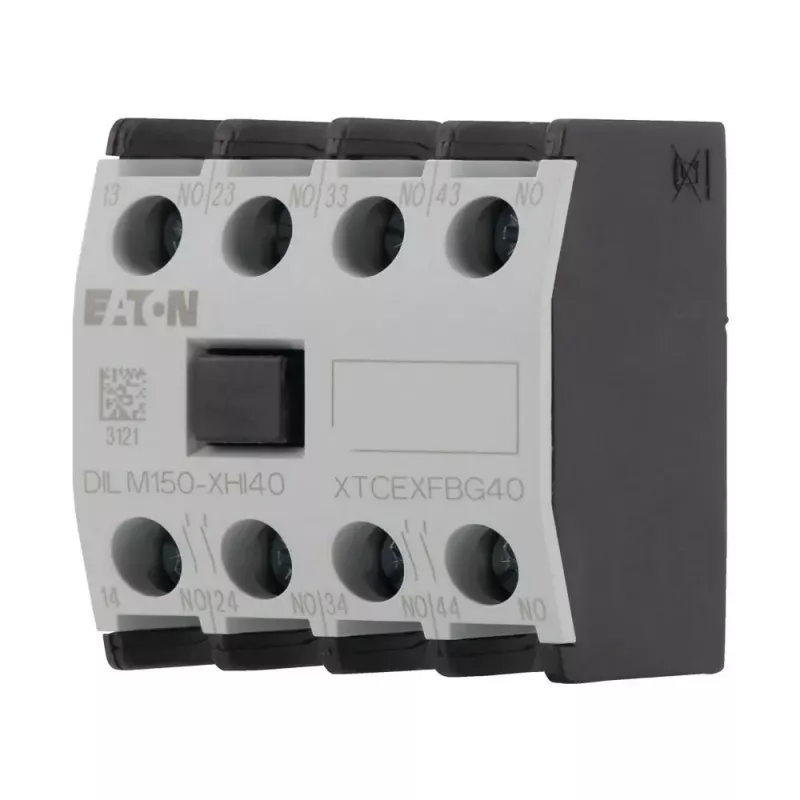

The Eaton DILM150-XHI40 is a front-mount auxiliary contact block engineered for DILM contactors in the 40 to 170 A range. It delivers four normally open (4NO) contacts, providing reliable signaling and control feedback in industrial switching applications. Unlike generic add-on contacts, this unit is purpose-built to integrate seamlessly with the DILM series, ensuring consistent mechanical and electrical performance.

Highlights

• 4 normally open (NO) contacts for versatile control logic
• Front mounting for quick installation on DILM contactors
• Rated insulation voltage 690 V and impulse withstand 6 kV
• High mechanical durability exceeding 10 million operations
• Wide operating temperature range from -25 to +60 °C

In daily use

Install the DILM150-XHI40 directly onto the front of a compatible DILM contactor without tools. Its screw terminals accept solid or stranded conductors from 0.75 to 2.5 mm², making wiring straightforward in control panels. The IP20 degree of protection suits installation inside enclosed switchgear. The contacts handle AC-15 loads up to 4 A at 230 V and DC-13 loads up to 1 A at 60 V, covering most auxiliary circuit requirements.

Full specifications

• Contact configuration: 4 NO
• Number of poles: 4
• Mounting type: Front mounting
• Compatibility: DILM contactors (DILM40 to DILM170)
• Terminal type: Screw terminals
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (AC-15, 230 V): 4 A
• Rated operational current (AC-15, 400 V): 1.5 A
• Rated operational current (DC-13, 60 V): 1 A
• Rated operational current (DC-13, 110 V): 0.5 A
• Degree of protection: IP20
• Operating temperature range: -25 to +60 °C
• Storage temperature range: -40 to +80 °C
• Standards: IEC/EN 60947-5-1
• Electrical life (AC-15): > 1.5 x 10^6 operations
• Mechanical life: > 10 x 10^6 operations
• Connection capacity (solid): 1 x (0.75 - 2.5) mm²
• Connection capacity (stranded): 1 x (0.75 - 2.5) mm²

Final note

The DILM150-XHI40 is a dependable choice for expanding the auxiliary signaling capabilities of Eaton DILM contactors in industrial environments.
