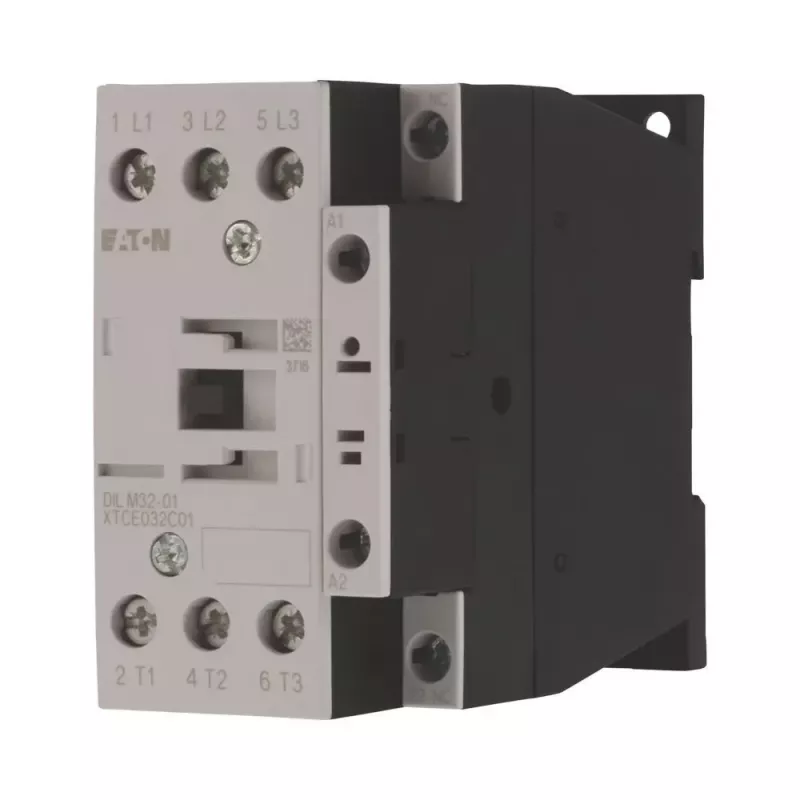

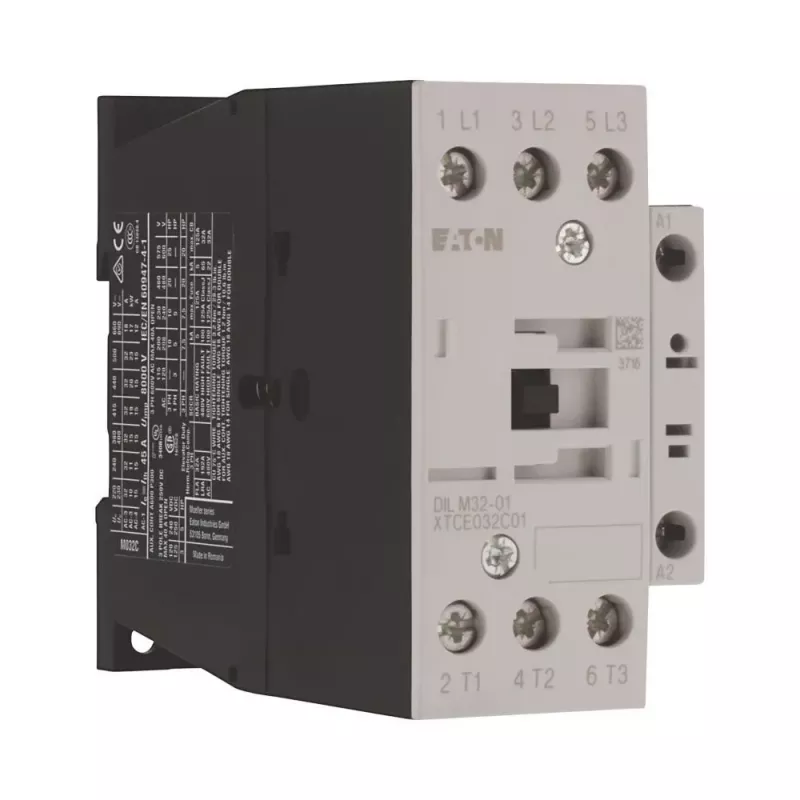

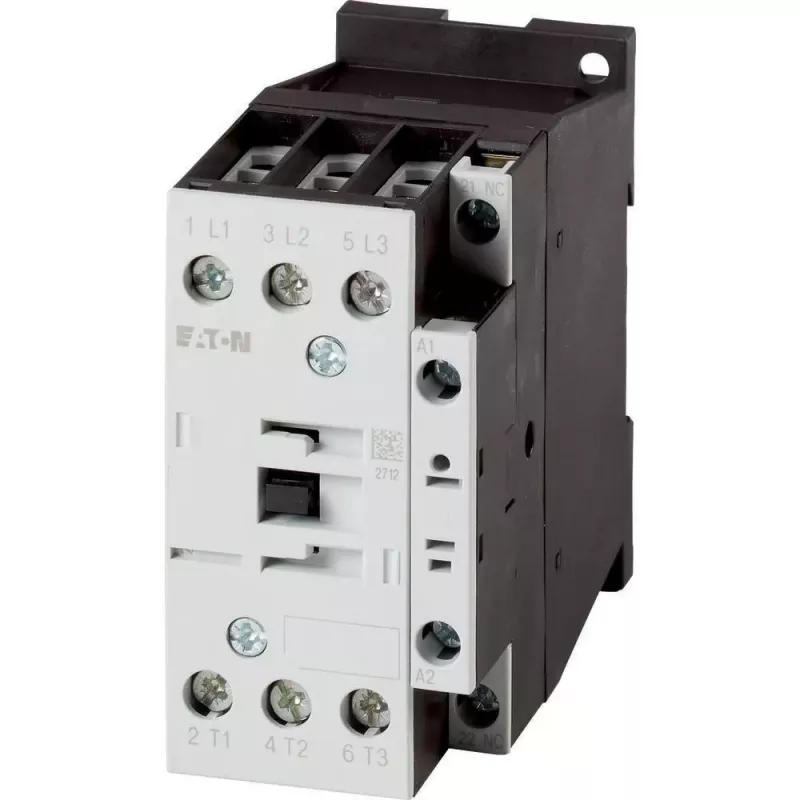

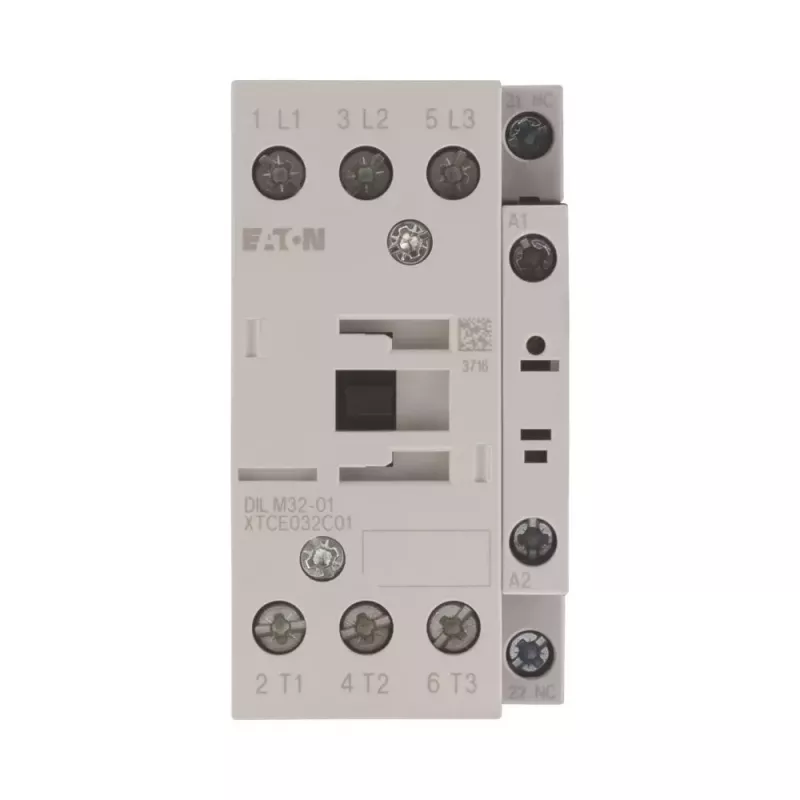

Eaton DILM32-01(RDC24) contattore, tripolare, 32 A, bobina 24-27 V DC, 1 NC contatto ausiliario 277306

With a rated operational current of 32 A at AC-3 (400 V), the Eaton DILM32-01(RDC24) power contactor delivers robust switching for motor loads up to 15 kW. Its DC coil operates reliably across 24–27 V DC, making it a dependable choice for industrial control circuits.

Overview

The DILM32-01(RDC24) is a 3-pole contactor from Eaton's DILM series, engineered for demanding switching tasks. It features three normally open main contacts and one normally closed auxiliary contact, providing flexibility for control and feedback circuits. Screw terminals ensure secure connections, and the device mounts easily on DIN rail or via screws.

What stands out

• High electrical durability: over 1.5 million operations at AC-3, ensuring long service life.
• Mechanical endurance exceeding 10 million cycles for reliable performance.
• Compact design with IP20 protection, suitable for control cabinet installation.
• Wide operating temperature range from -25°C to +60°C.

Technical details

• Main contacts: 3 NO, rated 32 A (AC-3, 400 V).
• Auxiliary contact: 1 NC.
• Coil voltage: 24–27 V DC.
• Rated insulation voltage: 690 V.
• Rated impulse withstand voltage: 6 kV.
• Terminal capacity: 1 x (1–16 mm²) or 2 x (1–10 mm²).
• Standards: IEC/EN 60947, UL, CSA.

Our verdict

A reliable and durable contactor for industrial motor control, offering excellent electrical and mechanical life with straightforward installation.
