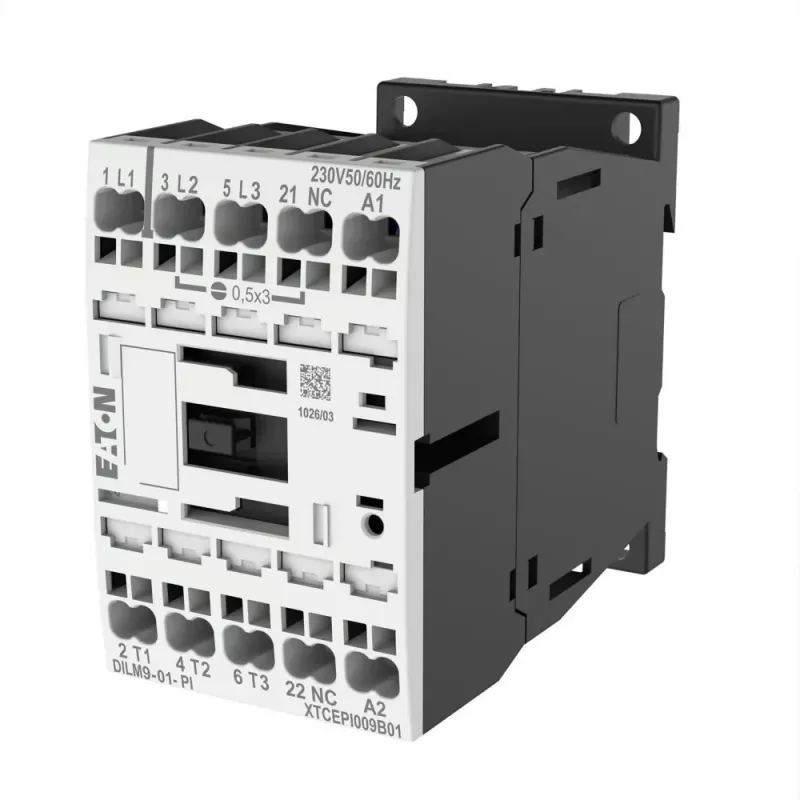

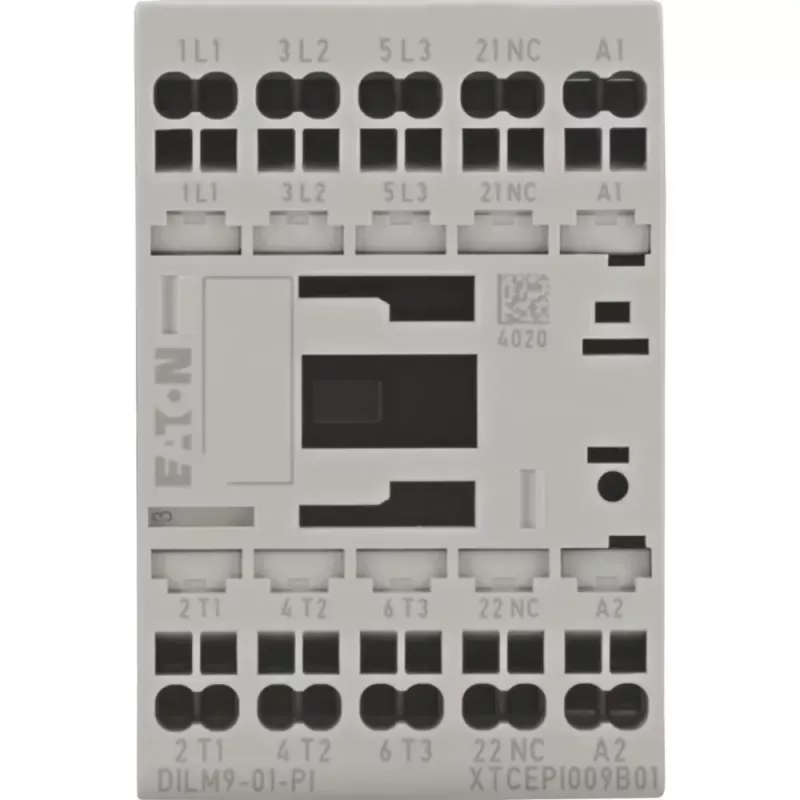

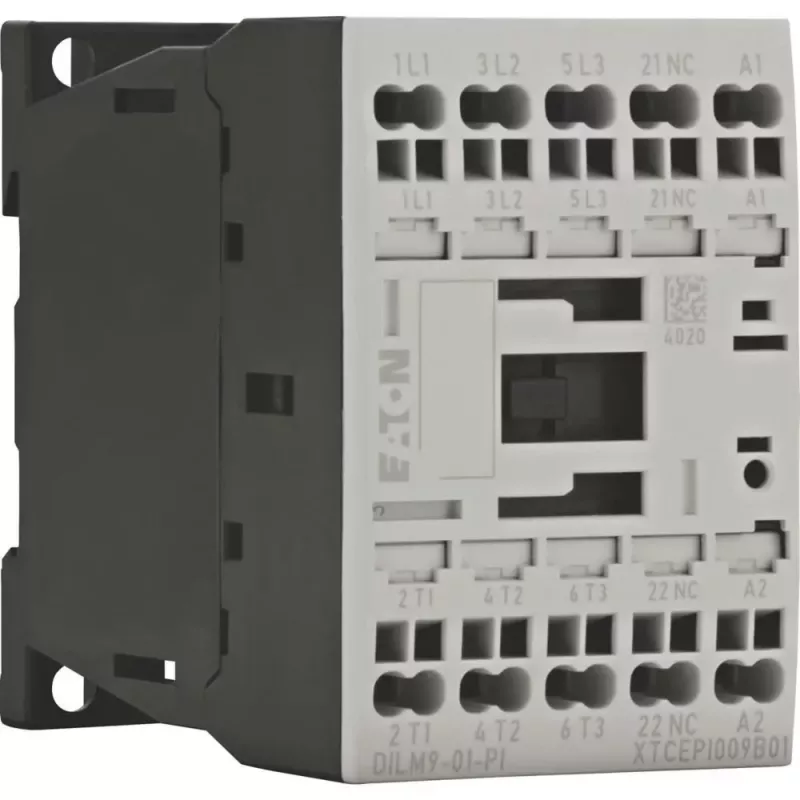

Eaton DILM9-01(24VD) contattore di potenza, 3 poli, 9 A, bobina 24 V DC 199238

The Eaton DILM9-01(24VD) power contactor stands apart with its compact frame and 24 V DC coil, making it a direct fit for control panels where space and low-voltage actuation are priorities. Its 9 A AC-3 rating suits small motor loads up to 4 kW at 400 V, while the built-in 1 NC auxiliary contact simplifies interlocking and status feedback without extra modules.

Highlights

• 3 main poles, normally open, rated 9 A AC-3 (400 V)
• 24 V DC coil for direct PLC or DC control circuits
• Integrated 1 NC auxiliary contact for signaling or interlocking
• DIN rail or screw mounting, screw terminals
• Wide operating range: -25 to +60 °C

In daily use

Installation is straightforward: clip onto a 35 mm DIN rail or fix with screws, wire the main and control circuits to the clearly marked screw terminals, and energize the 24 V DC coil. The contactor responds with a firm mechanical action, and the auxiliary contact changes state simultaneously. Its IP20 housing is intended for enclosed panels, keeping dust and accidental contact away from live parts.

Full specifications

• Rated operational current AC-3 (400 V): 9 A
• Rated operational power AC-3 (400 V): 4 kW
• Rated operational current AC-1 (400 V): 22 A
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated frequency: 50/60 Hz
• Number of poles: 3
• Auxiliary contacts: 1 NC
• Coil voltage: 24 V DC
• Mechanical durability: 10,000,000 cycles
• Electrical durability (AC-3): 1,500,000 cycles
• Mounting: DIN rail or screw
• Terminals: screw type
• Degree of protection: IP20
• Operating temperature: -25 to +60 °C

Final note

The DILM9-01(24VD) is a dependable switching element for small three-phase motors and resistive loads, backed by Eaton's proven DILM series design.
