Eaton FAZ-XHINW1 contatto ausiliario (286055)

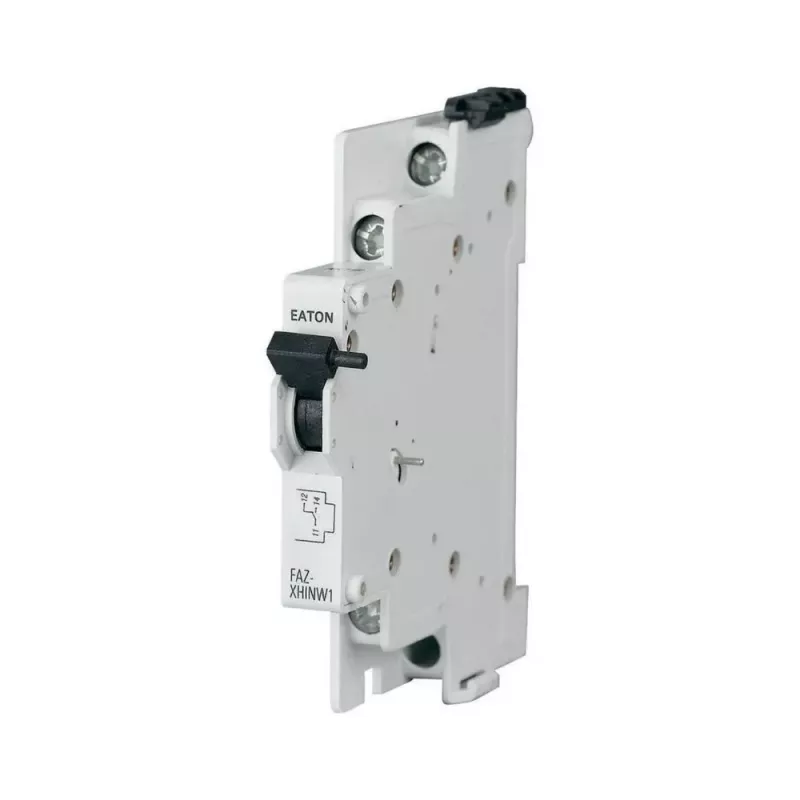

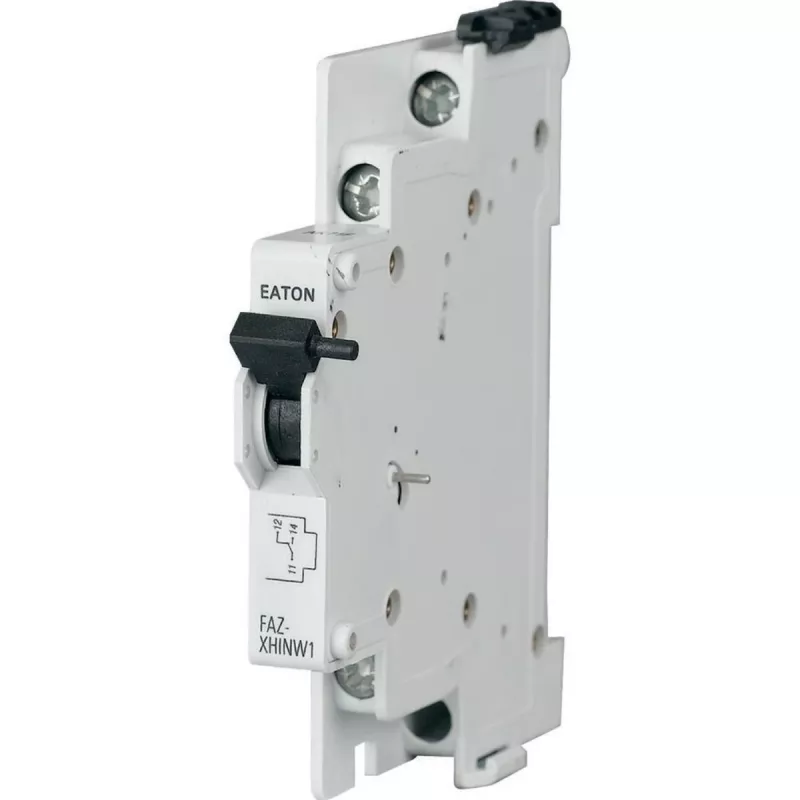

The Eaton FAZ-XHINW1 auxiliary contact delivers dual signalling capability with 1 normally open and 1 normally closed contact, rated for 6 A at 240 V AC. It mounts on the left side of Eaton FAZ, PLSM, PFL, PKNM, and Z-MS miniature circuit breakers, occupying just 0.5 module width.

Overview

This side-mounted auxiliary contact provides reliable status indication for compatible Eaton MCBs. It features screw terminals accepting solid or stranded conductors from 0.5 to 2.5 mm², with a rated operational voltage of 240 V AC and 48 V DC. The contact configuration includes one NO and one NC contact, enabling flexible signalling for control and monitoring circuits.

What stands out

• Dual contacts: 1 NO + 1 NC for versatile signalling
• Compact design: only 0.5 module width
• High electrical life: over 100,000 operations
• Wide operating temperature range: -25 to +75 °C
• Compatible with multiple Eaton MCB series

Technical details

• Contact configuration: 1 NO + 1 NC
• Rated operational voltage: 240 V AC, 48 V DC
• Rated operational current: 6 A (AC-15), 1 A (DC-13)
• Mounting: left side, 0.5 module width
• Connection: screw terminals, 0.5–2.5 mm²
• Degree of protection: IP40 housing, IP20 terminals
• Operating temperature: -25 to +75 °C
• Storage temperature: -40 to +80 °C
• Rated impulse withstand voltage: 4 kV
• Rated insulation voltage: 250 V
• Electrical life: >100,000 operations
• Mechanical life: >1,000,000 operations

Our verdict

A compact and dependable auxiliary contact for Eaton MCBs, offering dual signalling and robust performance in a space-saving design.
