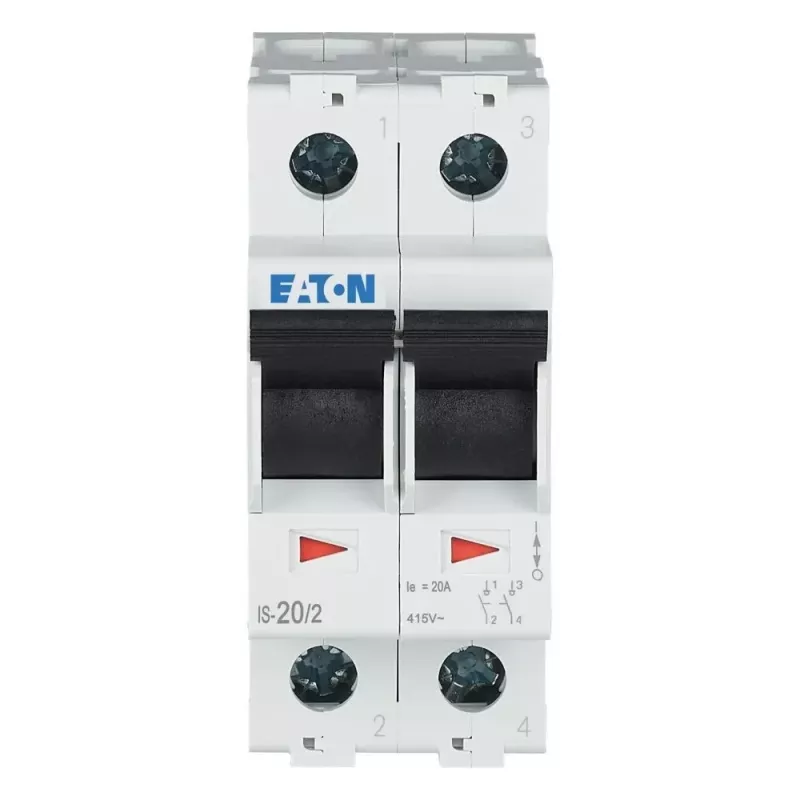

Eaton interruttore principale bipolare 20 A 230 V grigio 276259

Rated at 20 A and 230 V AC, this 2-pole main switch from Eaton provides reliable circuit isolation in a compact panel-mount design. With an IP65 front protection rating, it withstands dust and water jets, making it suitable for demanding environments.

Overview

The Eaton 276259 is a grey main switch with a black handle, designed for front panel mounting. It features screw terminals for secure wiring and a 90° switching angle with two positions (ON/OFF). The switch is lockable in the OFF position using a padlock (not included), enhancing safety during maintenance.

What stands out

• High breaking capacity: 6 kA conditional short-circuit current
• Robust construction: IP65 front protection
• Versatile: supports AC-23A loads up to 5.5 kW at 230 V
• Wide operating temperature range: -25°C to +50°C

Technical details

• Number of poles: 2
• Rated operational current (Ie): 20 A
• Rated operational voltage (Ue): 230 V AC
• Switch type: Main switch / disconnect switch
• Mounting: Panel mounting (front)
• Degree of protection (front): IP65
• Housing colour: Grey
• Handle colour: Black
• Switching angle: 90°
• Number of switching positions: 2 (ON/OFF)
• Connection type: Screw terminals
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated short-time withstand current (Icw): 0.32 kA (1s)
• Rated conditional short-circuit current (Iq): 6 kA
• Standard: IEC/EN 60947
• Lockable: Yes (padlock not included)
• Rated power (AC-23A, 230V): 5.5 kW
• Ambient operating temperature: -25 to +50 °C

Our verdict

A dependable main switch for industrial control panels, offering high interrupting capacity and a lockable design for safe isolation.
