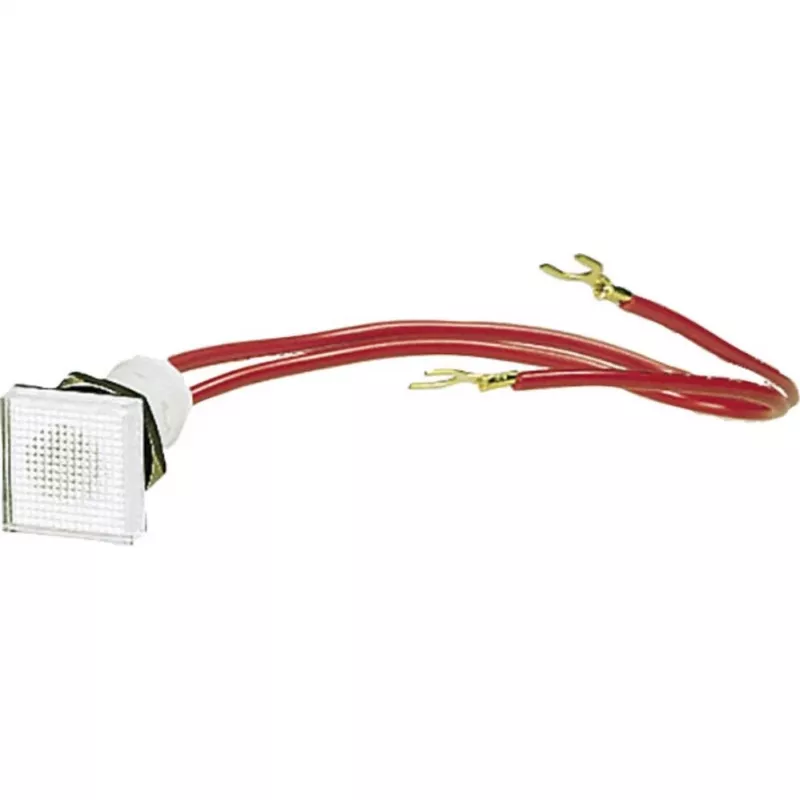

Eaton L-PKZ0-RT(230V) Spia luminosa piatta rossa 230V AC 082157

This flat red indicator light from Eaton's L-PKZ0 series provides clear visual status indication for motor protective circuit breakers. Its LED light source ensures long life and low maintenance, while the front plate mounting design allows easy integration into control panels.

Advantages

The indicator light features a robust plastic housing and screw terminals for secure wiring. With an IP66 front protection degree, it withstands harsh industrial environments, and the wide operating temperature range from -25 to +70 °C ensures reliability in various conditions.

Suitable for

• Indicating the status of PKZ0 motor protective circuit breakers
• Control panels and distribution boards requiring visual signaling
• Industrial applications with 230 V AC supply voltage

Key specifications

• Light color: Red
• Operating voltage: 230 V AC
• Mounting hole diameter: 22.5 mm
• Front protection degree: IP66
• Terminal protection degree: IP20
• Connection type: Screw terminals
• Housing material: Plastic
• Ambient temperature: -25 to +70 °C

Recommendations

For reliable status indication in motor control circuits, pair this indicator light with Eaton PKZ0 motor protective circuit breakers. Ensure proper panel cutout of 22.5 mm for secure mounting.
