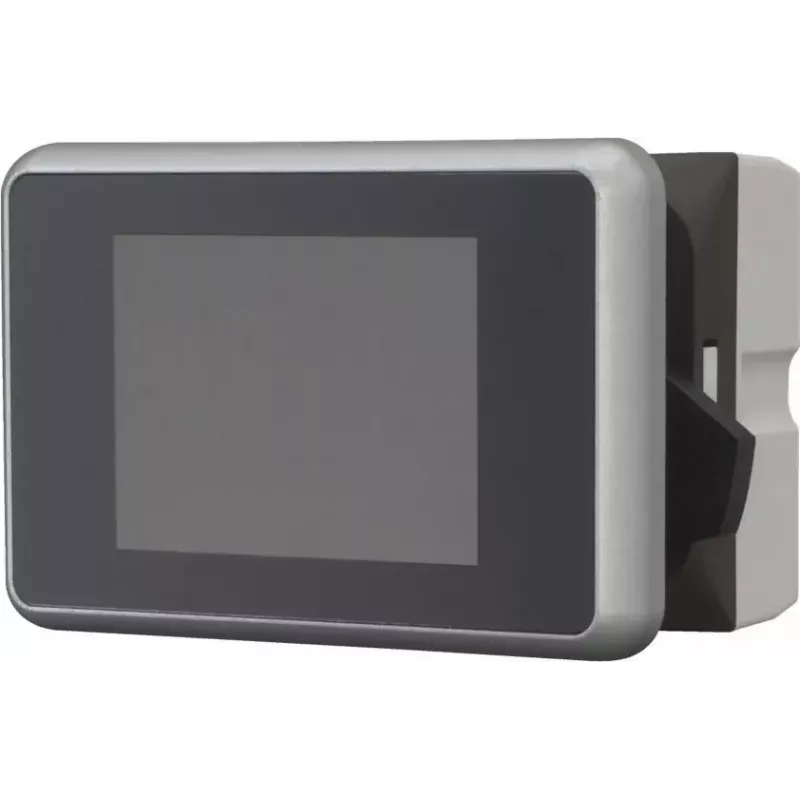

Eaton M22-AI-8I unità base indicatore avanzata display LED a 7 segmenti a 8 cifre 24V DC IP66

The Eaton M22-AI-8I Advanced Indicator Base Unit is a high-performance display module designed for industrial control applications. Part of the renowned Eaton M22 series, this unit features an 8-digit 7-segment LED display with red characters, providing clear numerical values, symbols, and text messages. With a compact front panel mount design and a 22.5 mm cutout, it integrates seamlessly into control panels and operator stations.

Advantages

Reliable and durable construction ensures long service life in demanding environments. The IP66 front protection rating makes it suitable for harsh industrial conditions, while the IP20 rear protection ensures safe installation. Easy screw terminal connections simplify wiring and maintenance.

Suitable for

• Industrial automation and process control
• Machine building and plant engineering
• Control panel and operator station integration
• Compatibility with Eaton M22 control circuit devices and PLCs

Key specifications

• Product Type: Advanced Indicator Base Unit
• Series: Eaton M22
• Display Type: 7-segment LED
• Number of Digits: 8
• Display Color: Red
• Supply Voltage: 24 V DC
• Current Consumption: Max. 100 mA
• Mounting Type: Front Panel Mount
• Panel Cutout Diameter: 22.5 mm
• Protection Rating (Front): IP66
• Protection Rating (Rear): IP20
• Operating Temperature: -25 to +70 °C
• Connection Type: Screw Terminals
• Functions: Display of numerical values, symbols, and text messages
• Compatibility: Designed for use with Eaton M22 control circuit devices and PLCs
• Housing Material: Plastic
• Certifications: CE, UL, CSA

Recommendations

For optimal performance, pair this indicator base unit with compatible Eaton M22 control devices. Ensure proper panel cutout and sealing to maintain IP66 protection. Refer to the product manual for detailed installation and configuration instructions.
