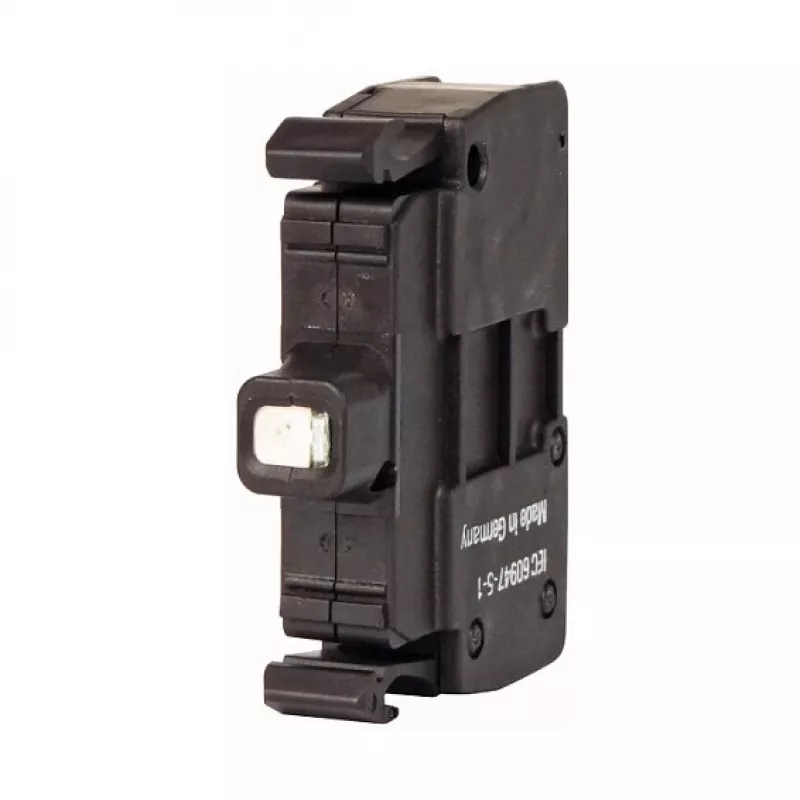

Eaton M22-CLED-W elemento di segnalazione LED, bianco, 12-30 V AC/DC, morsetti a molla

When you need a reliable, maintenance-free status indication for your M22 control devices, the Eaton M22-CLED-W LED indicator element is a direct fit. This genuine replacement unit is designed for front mounting into M22 pushbuttons, selector switches, and indicator light holders, providing a bright white LED signal in industrial environments where clarity and durability are non-negotiable.

Key specifications

• Series: Eaton M22
• Product type: LED indicator element
• Light source: LED
• Light color: White
• Rated operating voltage: 12–30 V AC/DC
• Current consumption: Approx. 15 mA
• Terminal type: Spring-cage terminals
• Number of terminals: 2
• Mounting type: Front mounting (for M22 devices)
• Degree of protection: IP20
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• LED lifetime: >100,000 hours (at 25°C)
• Housing material: Plastic
• Certifications: CE, UL, CSA
• Compatibility: Eaton M22 pushbuttons, selector switches, indicator lights
• Order number (MPN): 216569
• EAN: 4015082165697

Why choose it

Engineered for long service life, the M22-CLED-W delivers consistent white illumination without the need for bulb replacement. Its spring-cage terminals make wiring quick and tool‑free, reducing installation time during panel assembly or retrofits. The wide 12–30 V AC/DC operating range offers flexibility across control circuits, and the scratch‑resistant plastic housing stands up to everyday industrial use.

Ideal use cases

• Status indication on machinery and control panels
• On/off state display for motor starters and contactors
• Process monitoring in automated production lines
• Replacement for worn-out or failed indicator lights in M22 installations

Good to know

This is a complete LED element without the front ring or actuator; use it together with your existing M22 mounting base and lens. The IP20 rating is suited for indoor control cabinet use. The element is supplied in a single pack and is CE, UL and CSA approved for international installations.
