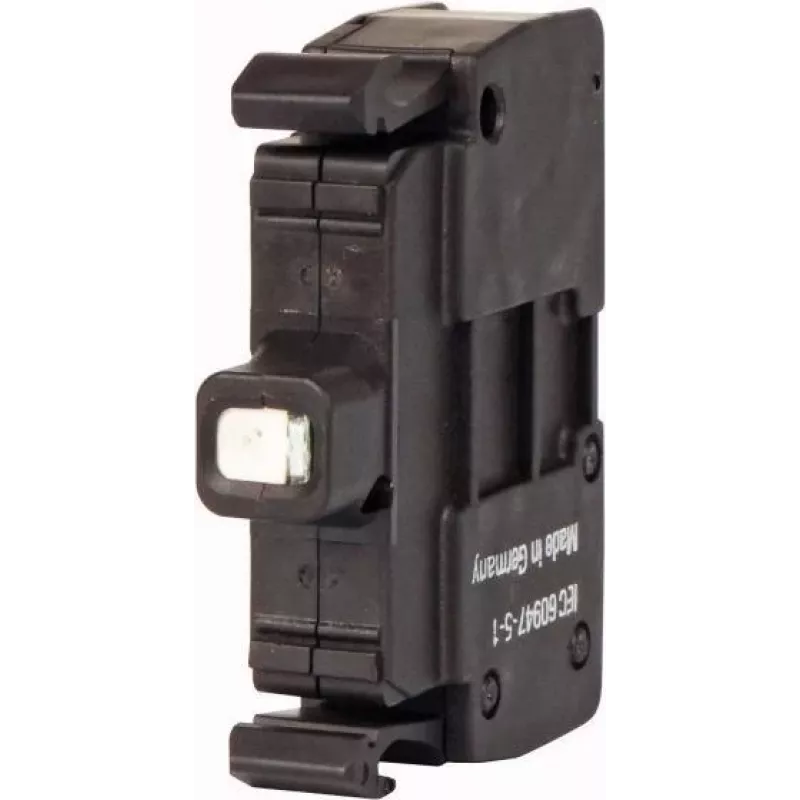

Eaton M22-CLED230-G elemento di segnalazione LED, verde, 85-264 V AC, montaggio frontale, morsetti a vite

Industrial control panels often suffer from indicator lamps that burn out quickly or fail under voltage fluctuations, leading to unexpected downtime and maintenance headaches. The Eaton M22-CLED230-G LED indicator element solves this with a robust, long-lasting LED light source designed for continuous operation in demanding environments. As part of the Eaton RMQ-Titan series, this green LED element provides clear, reliable status indication for a wide range of industrial applications, from machine tools to conveyor systems.

Who is it for

This LED element is ideal for panel builders, maintenance engineers, and automation specialists who need a dependable, energy-efficient indicator for 85-264 V AC control circuits. It is particularly suited for applications where traditional incandescent bulbs fail prematurely due to vibration, shock, or frequent switching. With its front mounting design and screw terminals, it integrates seamlessly into existing 22.5 mm control panels, offering a drop-in upgrade for older indicator lamps.

Main features

• Wide voltage range: operates on 85-264 V AC, eliminating the need for separate transformers or power supplies in many installations.
• Long lifespan: LED technology provides over 100,000 hours of operation, drastically reducing replacement frequency and maintenance costs.
• Front mounting: easy installation from the front of the panel, saving time during assembly and retrofitting.
• Bright green illumination: high-visibility green light ensures clear status indication even in brightly lit environments.
• Robust construction: plastic housing with IP20 terminal protection, suitable for industrial control cabinets.
• Secure connection: screw terminals accept wires from 0.5 to 2.5 mm², ensuring reliable electrical contact.

Specifications

• Product type: LED indicator element
• Series: Eaton RMQ-Titan (M22)
• Light colour: Green
• Operating voltage: 85-264 V AC
• Current consumption: 5-15 mA
• Mounting type: Front mounting
• Mounting diameter: 22.5 mm
• Connection type: Screw terminals
• Supply voltage type: AC
• Lifespan: >100,000 hours
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Protection rating (terminals): IP20
• Rated impulse withstand voltage: 4 kV
• Rated insulation voltage: 300 V
• Terminal capacity: 0.5 - 2.5 mm² (single wire)
• Housing material: Plastic
• Standards: IEC/EN 60947-5-1

Tips

When installing the M22-CLED230-G, ensure the panel cutout is exactly 22.5 mm to guarantee a secure fit and proper sealing. For optimal performance, use ferrules on stranded wires to prevent fraying and ensure a solid connection in the screw terminals. This LED element is polarity-sensitive for DC operation, but for AC operation polarity does not matter. Always disconnect power before installation or maintenance to avoid electrical shock.
