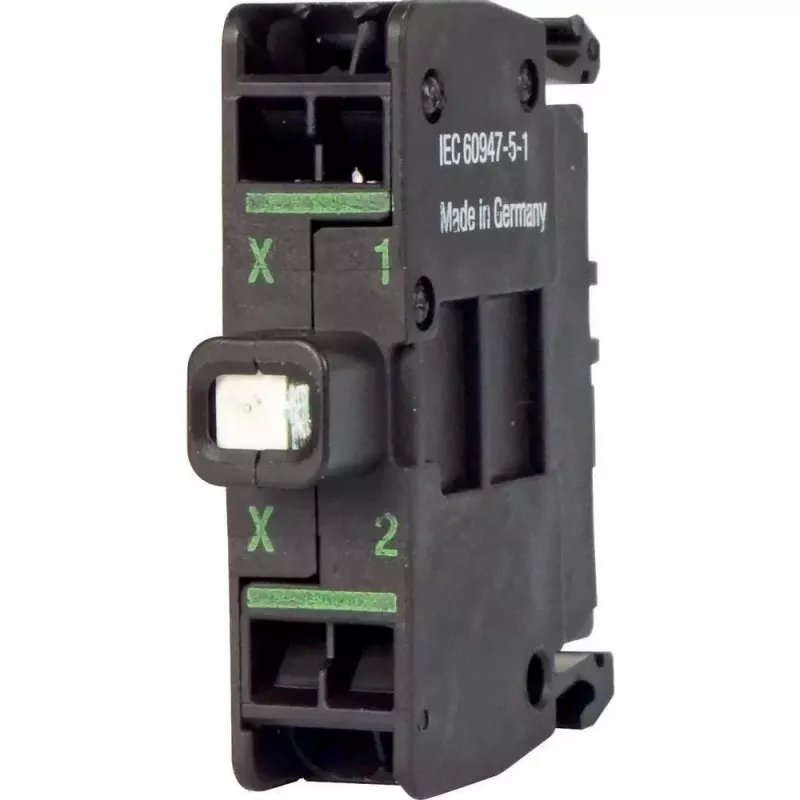

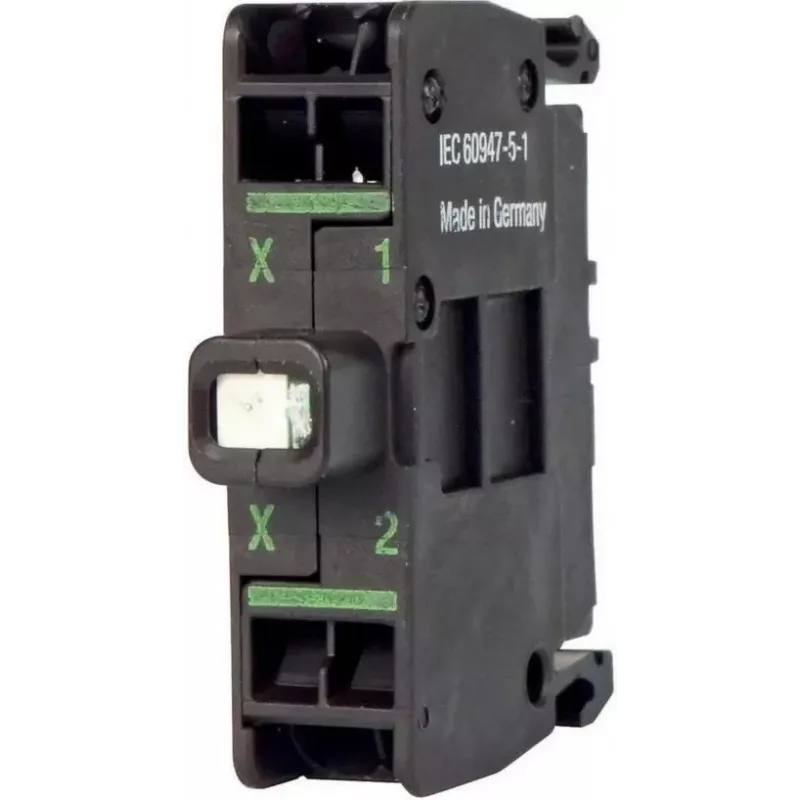

Eaton M22-CLEDC230-R elemento LED, rosso, 230 V AC/DC 216579

Control panel indicators often fail at the worst time, leaving operators without clear status signals. The Eaton M22-CLEDC230-R LED element solves this by providing a long-lasting, low-maintenance red light source for your M22 series control devices.

Who is it for

This LED element is for panel builders, maintenance technicians, and machine operators who need a reliable red indicator light for 230 V AC/DC control circuits. It fits front-mounting applications using screw terminals.

Main features

• Red LED light source with a lifetime exceeding 100,000 hours (L70).
• Rated operating voltage: 230 V AC/DC.
• Low current consumption: less than 20 mA.
• Front mounting with screw terminals for secure wiring.
• Compatible with Eaton RMQ-Titan M22 series control devices.

Specifications

• Light source: LED
• Light colour: Red
• Rated operating voltage: 230 V AC/DC
• Mounting type: Front mounting
• Terminal type: Screw terminals
• Series: Eaton RMQ-Titan (M22)
• Degree of protection: IP20
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Lifetime (L70): > 100,000 hours
• Current consumption: < 20 mA
• Number of terminals: 2
• Rated impulse withstand voltage: 4 kV
• Rated insulation voltage: 300 V

Tips

Pair this LED element with an M22 lens and holder to complete the indicator assembly. Ensure the supply voltage matches 230 V AC/DC to avoid damage.
