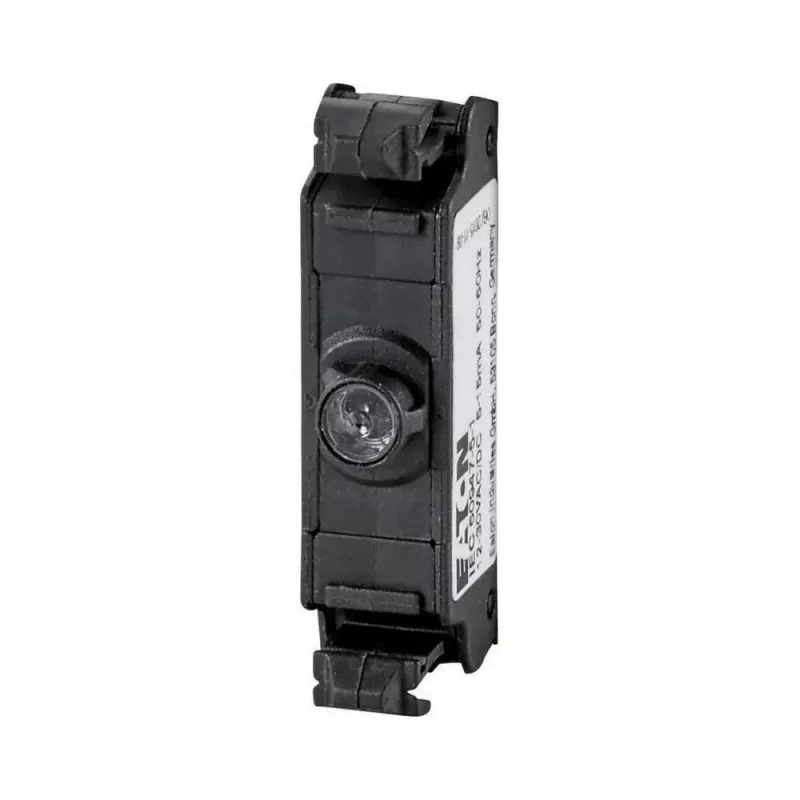

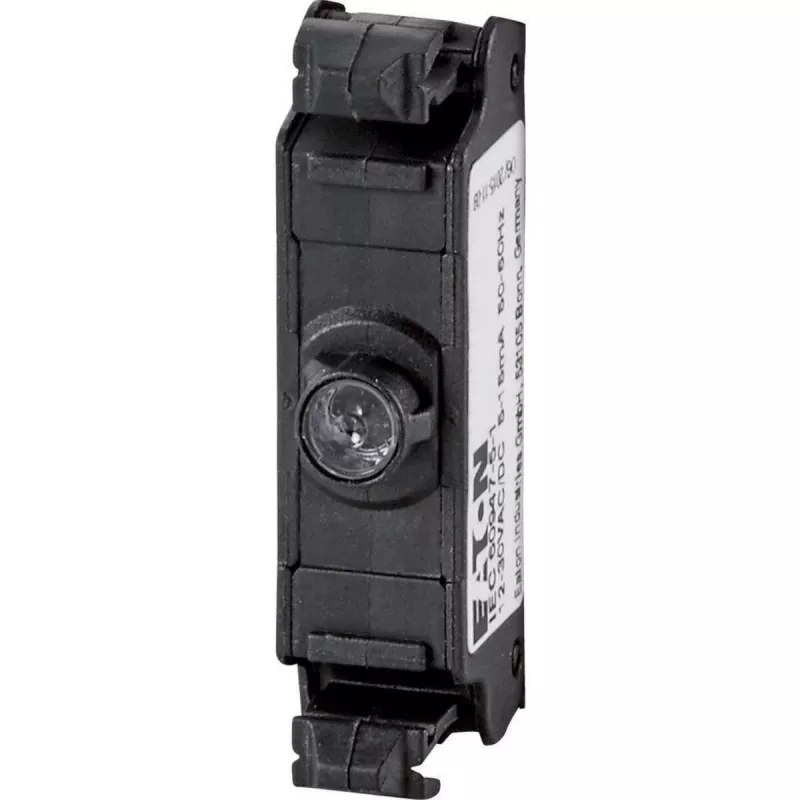

Eaton M22 elemento LED piatto rosso/verde 12-30V AC/DC 180799

Control panel builders and machine operators use the Eaton M22-FLED-RG flat LED element to add a clear red/green status indication to 22.5 mm pushbuttons and pilot lights. The bi-color LED switches between red and green depending on the applied signal, making it suitable for start/stop, run/error, or open/closed state displays in industrial control circuits.

Key specifications

• Light colour: red / green (bi-color)
• Supply voltage: 12–30 V AC/DC
• Current consumption: 15 mA
• Connection: screw terminals
• Lens type: flat
• Mounting diameter: 22.5 mm
• Operating temperature: -25 °C to +70 °C
• Lifespan: >100,000 hours

Why choose it

The flat lens sits flush with the front of the actuator, reducing the risk of accidental damage and making the indicator easy to clean. The wide voltage range allows use with both 24 V DC control circuits and common AC supplies, while the low current draw keeps heat and energy consumption minimal.

Ideal use cases

• Status indication on control panels and machine enclosures
• Replacement LED element for Eaton M22 pushbuttons and indicator lights
• Bi-color signalling in automated production lines

Good to know

The element mounts into standard Eaton M22 front elements and connects via two screw terminals. It is rated for use in temperatures from -25 °C to +70 °C, making it suitable for most industrial environments.
