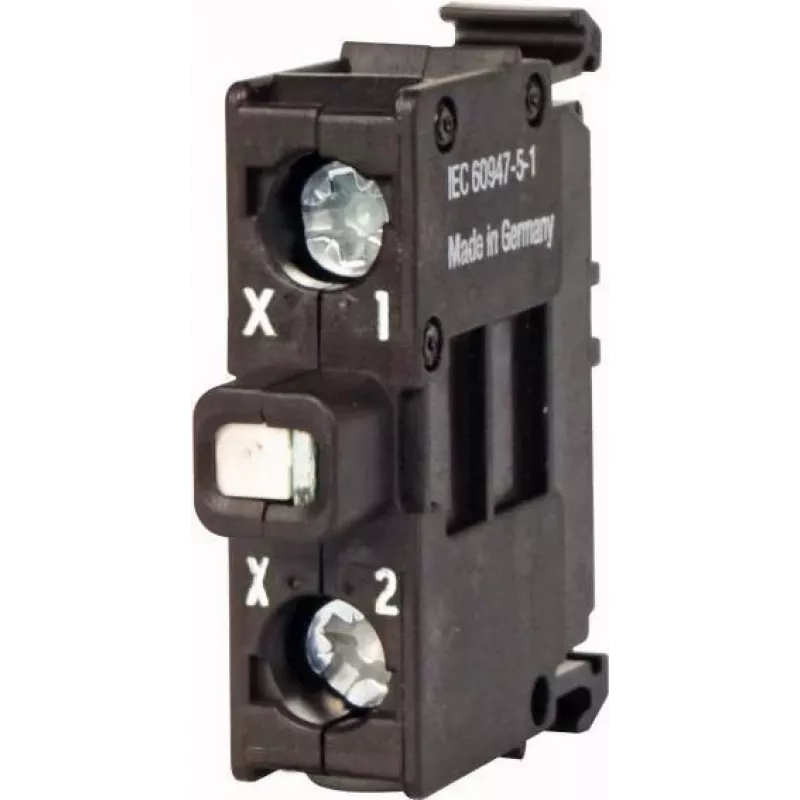

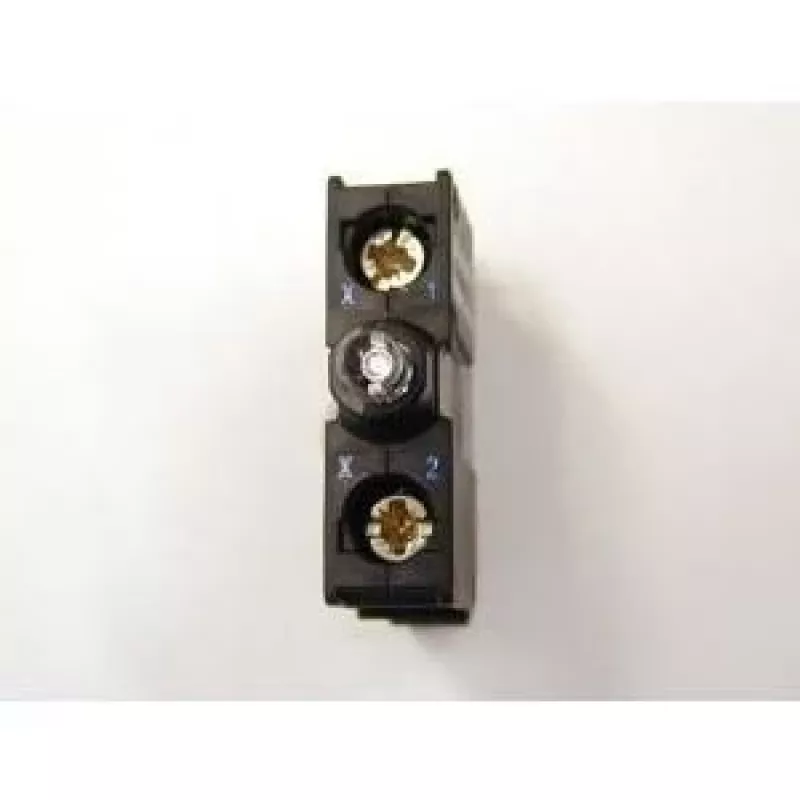

EATON M22 elemento LED verde M22-LEDC-G montaggio su zoccolo AC/DC 8-15mA 216562

Visual indication in control panels often fails when indicator lamps burn out or require frequent replacement. The EATON M22 LED element solves this with long-lasting LED technology, providing reliable green status indication for industrial control circuits.

Who is it for

Panel builders and maintenance technicians integrating signal lamps into EATON M22 control devices. This LED element fits standard M22 mounting bases and operates on both AC and DC supplies, simplifying inventory.

Main features

• Green LED light source for clear visual signalling
• Wide voltage compatibility: 12-30V AC/DC
• Low current consumption: 8-15 mA
• Base mounting for secure installation
• Compatible with EATON M22 series control devices

Specifications

• Product type: LED element
• Series: EATON M22
• Light colour: Green
• Operating voltage: 12-30V AC/DC
• Current consumption: 8-15 mA
• Mounting type: Base mounting
• Manufacturer part number: M22-LEDC-G

Tips

Verify that your control device uses the M22 mounting system before ordering. For consistent illumination across multiple indicators, use the same LED element type throughout the panel.
