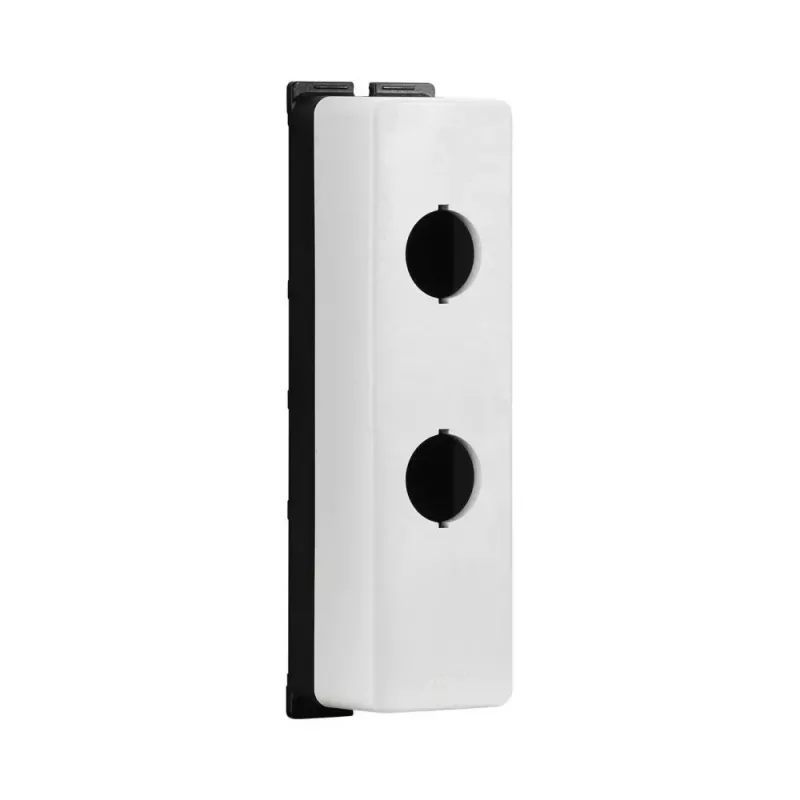

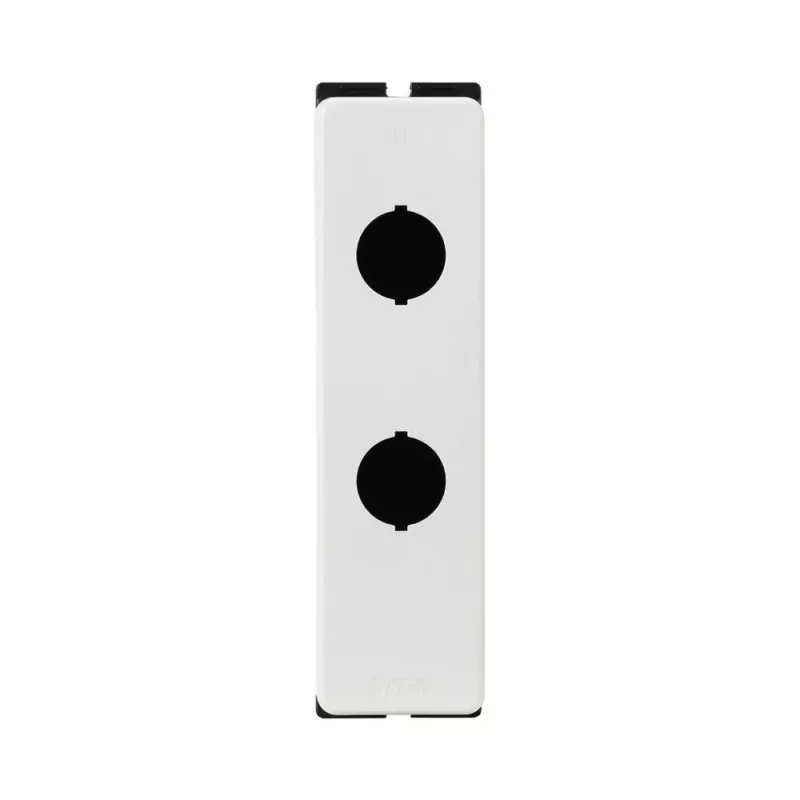

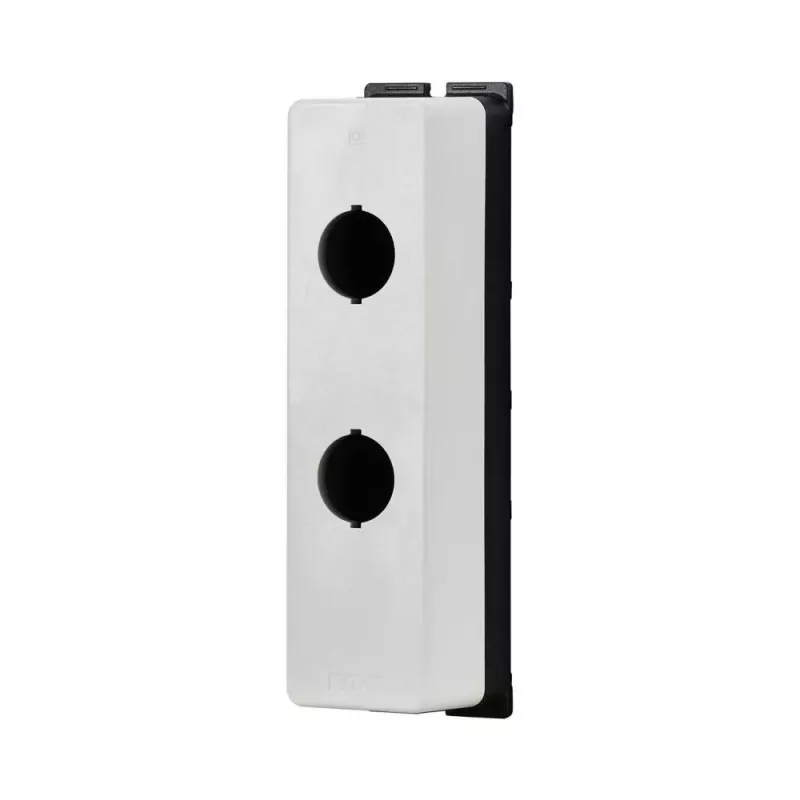

Eaton M22-FI2 custodia da parete per apparecchi di comando M22, grigio/nero, IP66/IP67/IP69K

When installing Eaton M22 control elements in harsh industrial environments, a reliable enclosure is essential to protect the wiring and ensure long-term operation. The Eaton M22-FI2 surface mount enclosure provides a robust housing for one M22 control element, such as a pushbutton, selector switch, or pilot light, with pre-scored knockouts for easy cable entry.

Who is it for

This enclosure is intended for panel builders, machine builders, and maintenance technicians who need to mount M22 control elements on surfaces where a standard panel cutout is not available or where additional protection is required.

Main features

• Accommodates one M22 control element with 22.5 mm mounting diameter
• Surface mount design with pre-scored knockouts for cable entry (M20/M25)
• High protection ratings: IP66, IP67, IP69K; NEMA 4X, 13
• Durable plastic housing in grey (RAL 7035) and black
• Impact resistance IK08
• Operating temperature range: -25 to +70 °C

Specifications

• Number of control elements: 1
• Mounting type: Surface mount
• Housing material: Plastic (insulated)
• Colour: Grey (RAL 7035) / Black
• IP protection rating: IP66, IP67, IP69K
• NEMA protection rating: NEMA 4X, 13
• Compatible series: Eaton M22
• Cable entry type: Pre-scored knockouts
• Number of cable entries: 4 (2x top, 2x bottom)
• Cable entry size: M20/M25
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Impact resistance: IK08
• External height: 80 mm
• External width: 80 mm
• External depth: 50 mm
• Drill hole diameter: 22.5 mm
• Standards compliance: IEC/EN 60947, UL, CSA

Tips

Ensure the mounting surface is flat and clean before installation. Use the pre-scored knockouts to create cable entries as needed; remove them carefully to avoid damaging the enclosure. For outdoor or washdown applications, verify that the cable glands used also meet the required IP rating.
