Eaton M22-FLED-R 180798 elemento LED, piatto, rosso, 24V AC/DC

With a service life of 100,000 hours, this flat red LED element from Eaton's Moeller M22 series is built for long-term signalling reliability in industrial control panels.

Overview

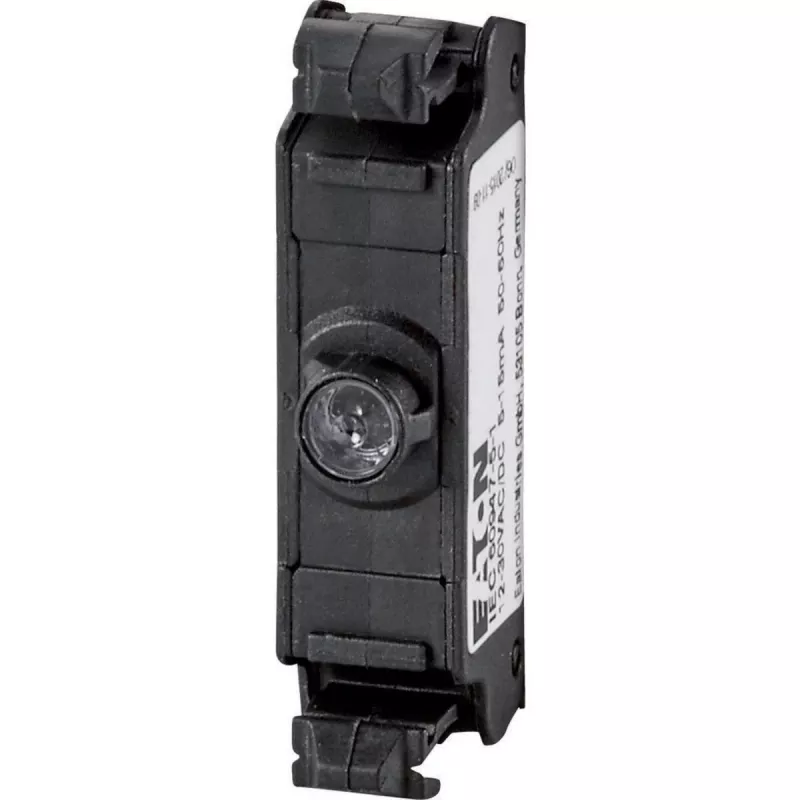

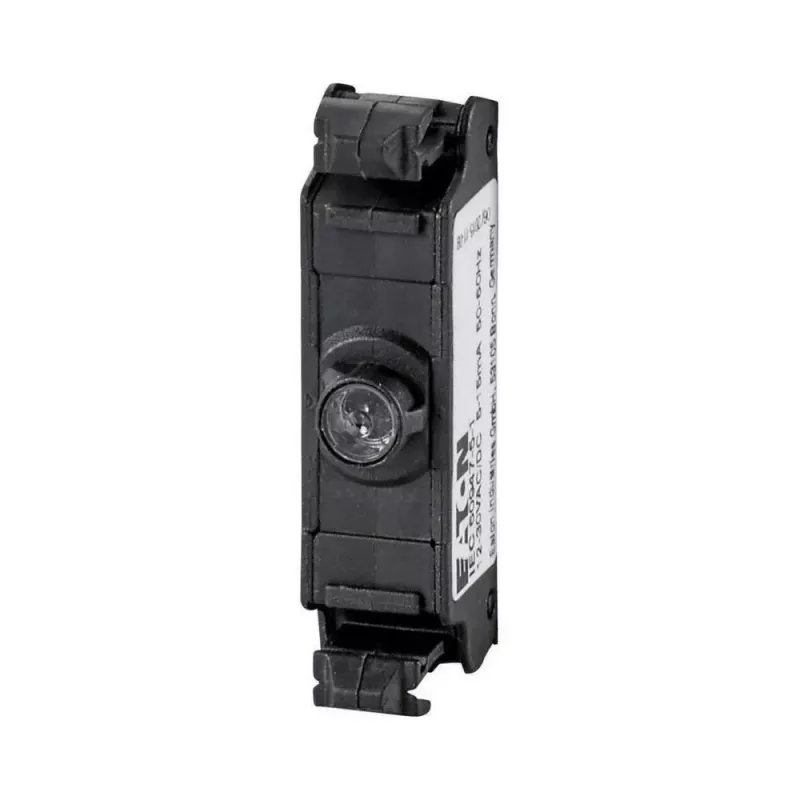

The Eaton M22-FLED-R (part number 180798) is a flat-design LED indicator element engineered for use with Eaton M22 control devices. It operates on 24V AC/DC and features screw terminals for secure wiring. The front face meets IP66, IP67, and IP69K protection ratings, making it suitable for demanding environments.

What stands out

• Long LED lifetime of 100,000 hours reduces maintenance needs.
• High front protection (IP66/IP67/IP69K) withstands washdown and dust.
• Low power consumption at only 0.3 W.
• Standard 22.5 mm mounting diameter fits common panel cutouts.

Technical details

• Light colour: Red
• Operating voltage: 24V AC/DC
• Rated operational current: 12 mA
• Connection: Screw terminals
• Operating temperature: -25 °C to +70 °C
• Storage temperature: -40 °C to +80 °C

Our verdict

A robust and efficient signalling component for industrial applications, offering high protection and long service life.
