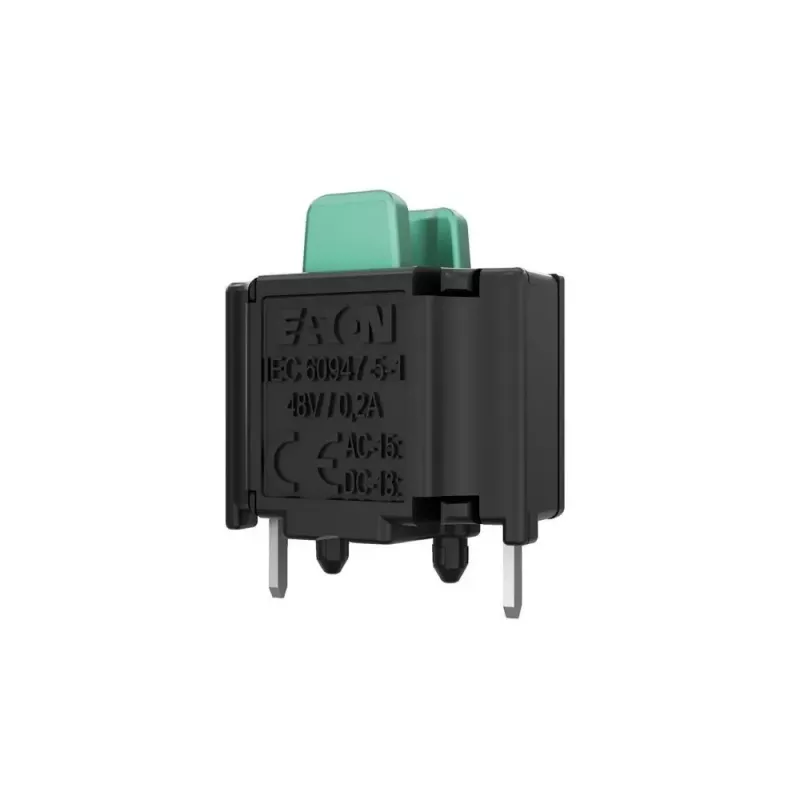

Eaton M22-KP10 contatto ausiliario, 1 deviatore, montaggio frontale, morsetti a vite EP-401607

Control panel builders and machine operators use the Eaton M22-KP10 auxiliary contact to add a changeover switching function to M22 series pushbuttons and selector switches. It mounts directly onto the front of the control device, providing a reliable signal contact for control circuits.

Key specifications

• Contact configuration: 1 changeover (1 C/O, SPDT)
• Mounting type: front mounting
• Terminal type: screw terminals
• Rated insulation voltage (Ui): 500 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current (AC-15, 230V): 6 A
• Rated operational current (DC-13, 220V): 1 A
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +80 °C
• Degree of protection (terminals): IP20
• Connection capacity: 1 x (0.5 - 2.5 mm²) or 2 x (0.5 - 1.5 mm²)
• Tightening torque: 0.8 Nm
• Mechanical life: > 5 million operations
• Electrical life (AC-15, 230V, 6A): > 0.5 million operations

Why choose it

The M22-KP10 integrates seamlessly with Eaton's M22 modular range, offering a compact and durable solution for auxiliary switching. Its screw terminals ensure secure wiring, and the high mechanical life supports long-term use in demanding industrial environments.

Ideal use cases

• Adding auxiliary contacts to pushbuttons and selector switches in control panels
• Signaling and interlocking circuits in machine building
• Retrofitting existing M22 installations with additional contact functions

Good to know

The contact block is designed for front mounting on compatible Eaton M22 actuators. It complies with IEC/EN 60947-5-1 and VDE 0660 standards.
