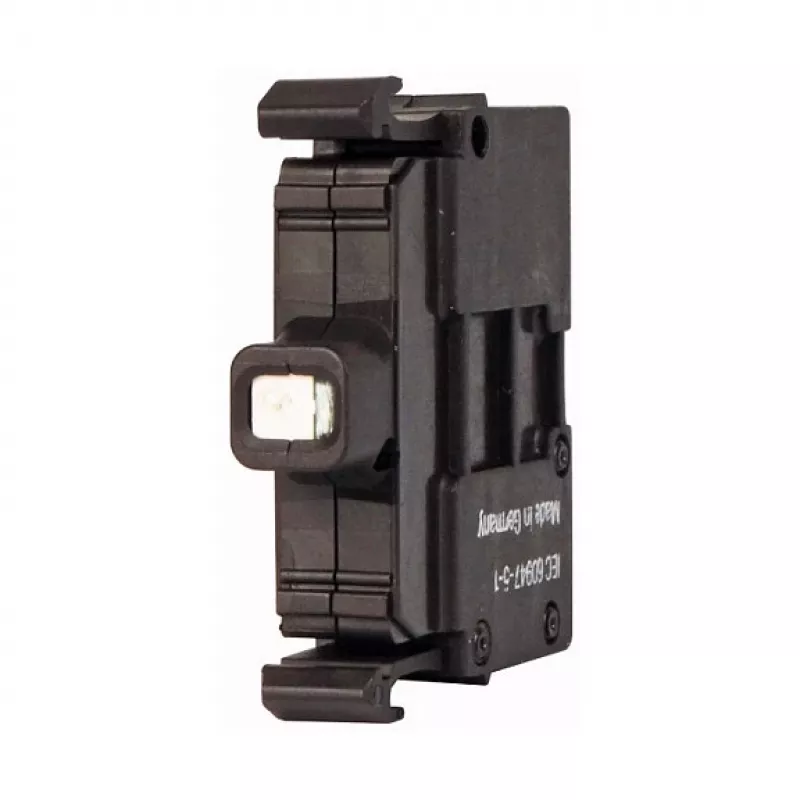

Eaton M22-LED230-G elemento luminoso - LED verde - 220-240V AC/DC - morsetti a vite

This Eaton illumination element from the M22 series provides a clear green LED status indication in control panels and electrical enclosures. Built for continuous duty and harsh industrial environments, it combines low power consumption with a rugged, IP66/IP67/IP69K-sealed front when installed.

Highlights

• Green LED status light for clear indication
• Supply voltage 220-240 V AC/DC for flexible use
• Screw terminals for secure and simple wiring
• Snap-on mounting fits standard M22 holders
• High protection rating IP66/IP67/IP69K at the front
• Certified to CE, UL and CSA standards
• Long operational lifetime of more than 100,000 hours

In daily use

The element snaps into M22 mounting holes and is fastened with a black screw ring. Its green light remains clearly visible even under bright ambient conditions. The screw terminals accept solid wires up to 2.5 mm², making installation straightforward. With an operating temperature range from -25°C to +70°C, it is suitable for a wide range of climates and application environments.

Full specifications

• Product type: Illumination element
• Light source: LED
• Light color: Green
• Supply voltage: 220-240 V AC/DC
• Voltage type: AC/DC
• Power consumption: approx. 0.3 W
• Connection type: Screw terminals
• Terminal capacity: 0.5 - 2.5 mm² (single wire)
• Series compatibility: Eaton M22
• Mounting: Snap-on into M22 holder
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C
• Certifications: CE, UL, CSA
• Lifetime (L70): >100,000 hours
• Rated impulse withstand voltage (Uimp): 4 kV
• Degree of protection (front, assembled): IP66, IP67, IP69K
• Degree of protection (rear): IP20
• Pollution degree: 3

Final note

The Eaton M22-LED230-G is a reliable choice for status indication in industrial controls. Its robust construction and international approvals simplify integration into machines and switchgear.
