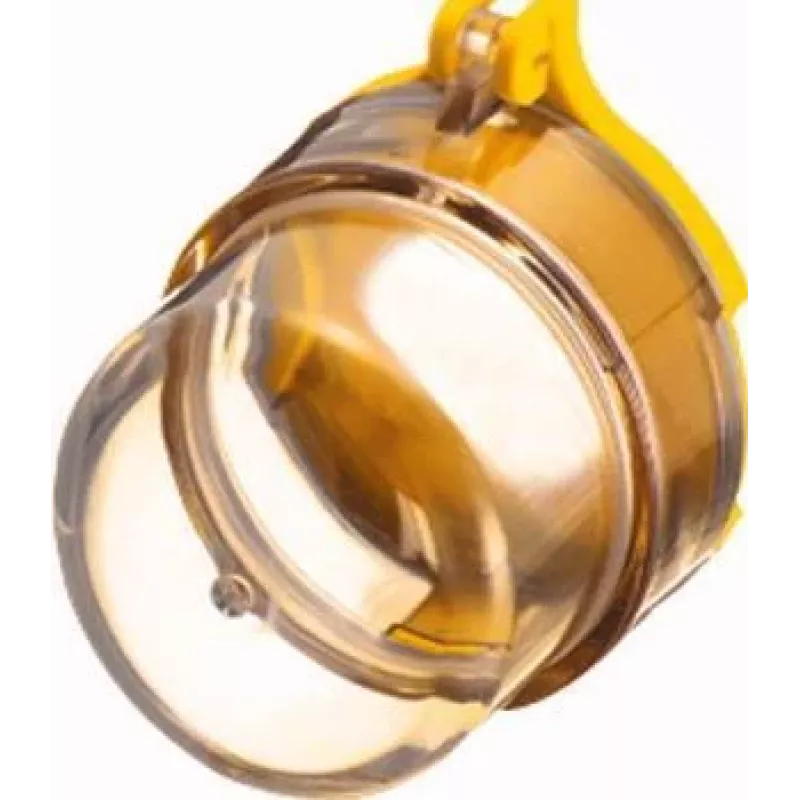

Eaton M22-PL-PV coperchio di protezione per pulsanti e spie della serie M22 216397

Protective cap for Eaton M22 series pushbuttons and indicator lights. Shields front-mounted control elements from dust, water, dirt, and accidental operation in industrial environments.

Advantages

Snap-on mounting for quick installation without tools. Transparent polycarbonate body allows clear visibility of the underlying actuator while providing physical protection. Supports high-pressure cleaning and harsh conditions when correctly installed.

Suitable for

• Industrial control panels
• Machinery exposed to washdown or outdoor conditions
• Applications requiring prevention of unintended actuation

Key specifications

• Compatible with Eaton M22 series pushbuttons and indicator lights
• Material: polycarbonate
• Colour: transparent
• Mounting: front, snap-on
• Protection degree: IP66, IP67, IP69K when correctly installed
• Operating temperature: -25 to +70 °C
• Cut-out diameter: 22.5 mm
• Overall diameter: 29.7 mm
• Packaging quantity: 1 piece

Recommendations

Use with Eaton M22 modular pushbuttons and indicator lights to maintain ingress protection and extend service life in demanding environments.
