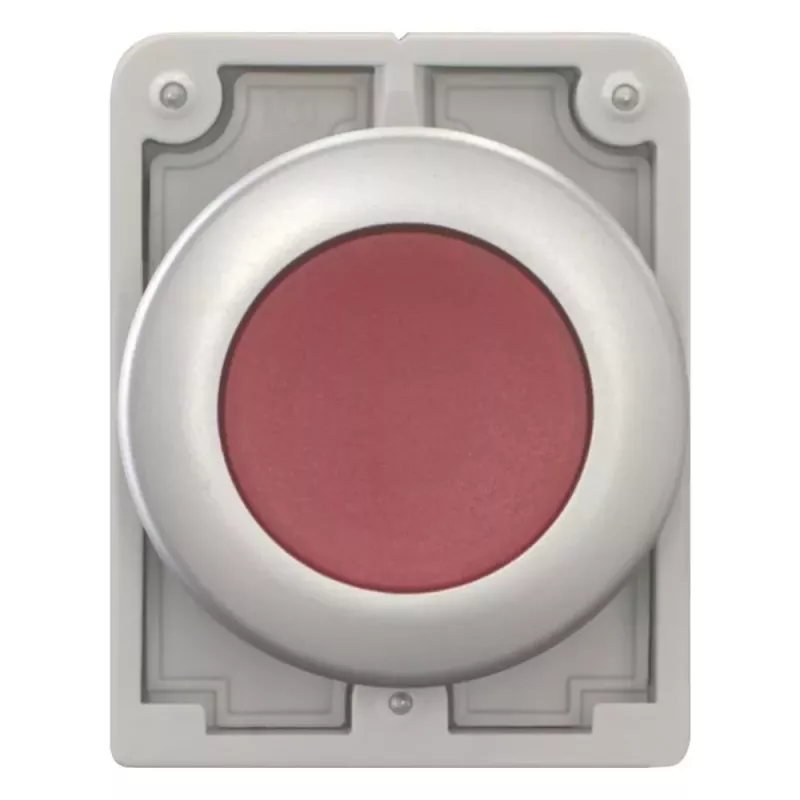

Eaton M30C-FDL-R attuatore pulsante piatto rotondo cromato rosso 182926

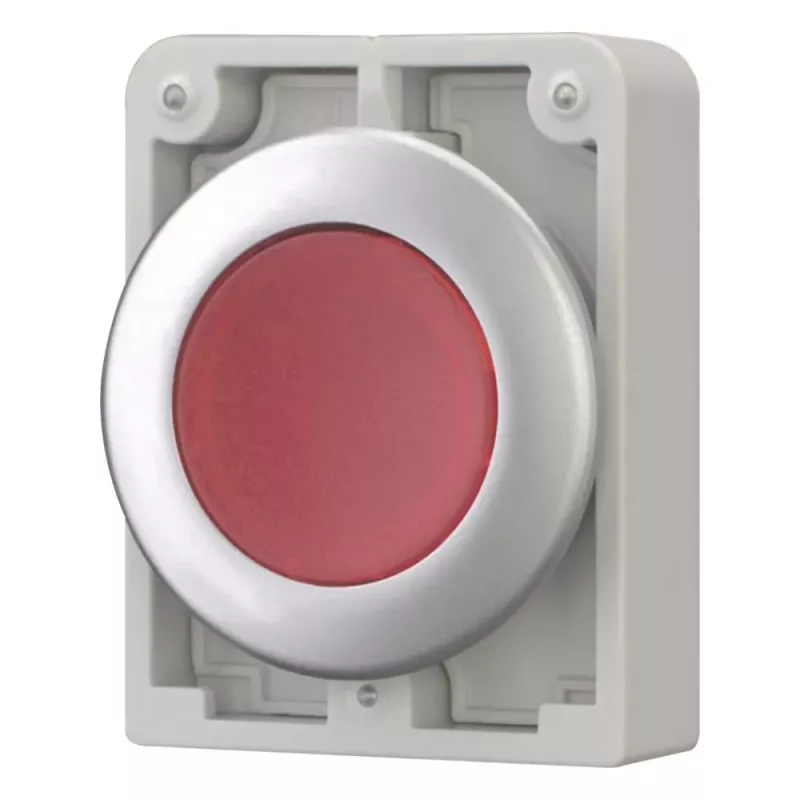

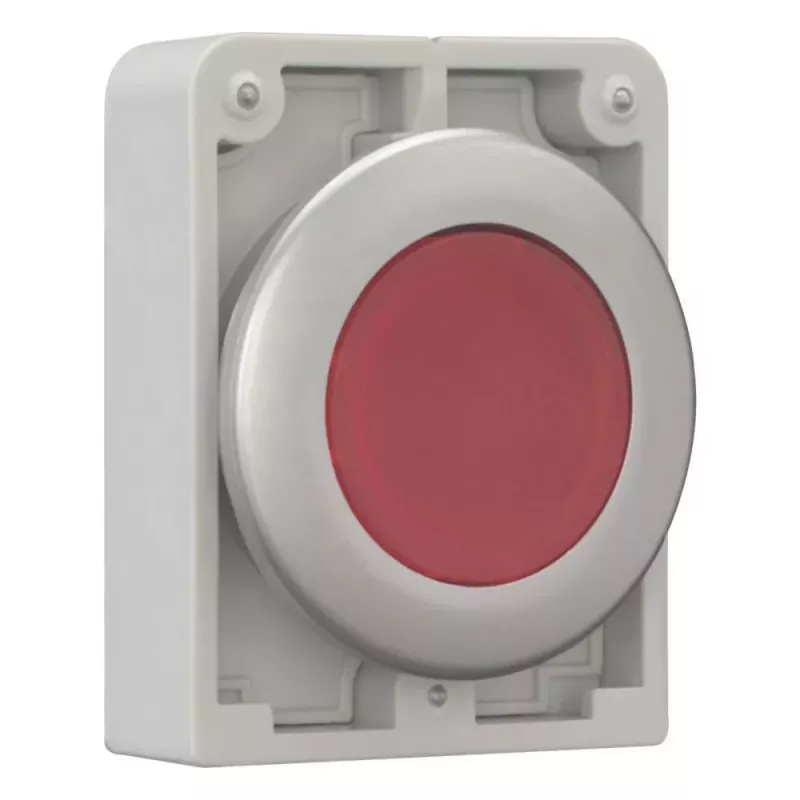

The Eaton M30C-FDL-R is a flat, round pushbutton actuator with a chrome-plated metal bezel and a red actuator. It is part of the M30C series and is designed for use with compatible contact blocks and holders. The flat design and chrome finish distinguish it from standard protruding pushbuttons, offering a sleek appearance and resistance to accidental operation.

Highlights

• Flat actuator design reduces the risk of unintentional activation.
• Chrome-plated metal bezel provides durability and a professional look.
• Red actuator colour for clear visual indication.
• Momentary operation suitable for control circuits.
• Compatible with Eaton M30C series contact blocks and holders.

In daily use

This actuator is typically mounted on a panel with a 30.5 mm diameter hole. The flat profile makes it ideal for applications where space is limited or where protruding buttons could be accidentally pressed. The chrome-plated bezel resists corrosion and maintains its appearance in industrial environments.

Full specifications

• Product Type: Pushbutton Actuator
• Series: M30C
• Actuator Design: Flat
• Actuator Shape: Round
• Actuator Colour: Red
• Bezel Material: Metal
• Bezel Finish: Chrome-plated
• Mounting Diameter: 30.5 mm
• Operation Type: Momentary
• Illumination: Non-illuminated
• Degree of Protection (Front): IP66, IP67, IP69K
• NEMA Rating: NEMA 4X, 13
• Operating Temperature Range: -25 to +70 °C
• Storage Temperature Range: -40 to +80 °C
• Mechanical Durability: > 5 million operations
• Standards: IEC/EN 60947-5-1, UL, CSA
• Compatibility: Eaton M30C series contact blocks and holders
• Front Ring Diameter: Approx. 36 mm

Final note

The M30C-FDL-R combines robust construction with a flat, modern design, making it a reliable choice for industrial control panels.
