Eaton NZM3-XKS240 capocorda 240 mm² per interruttori automatici NZM3 260041

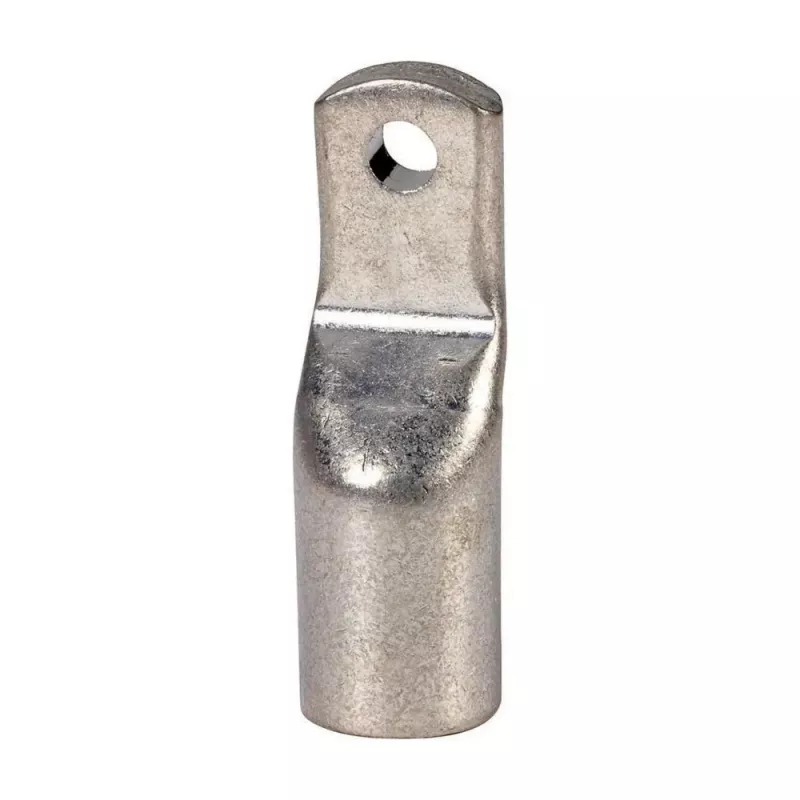

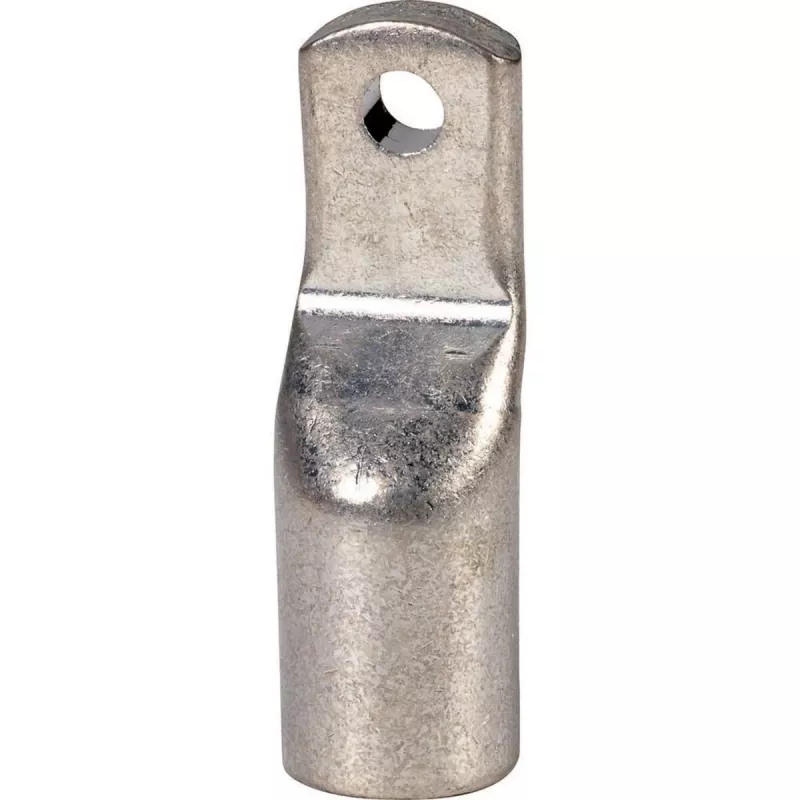

Cable lug for Eaton NZM3 circuit breakers, accepting a 240 mm² copper conductor. The lug is made of tinned copper and connects to the breaker via screw terminal, while the cable side is crimped or compressed. It is uninsulated and designed for single-conductor termination in power distribution and industrial control applications.

Advantages

Direct mounting on the circuit breaker terminal ensures a secure, low-resistance connection. Tinned copper construction provides corrosion resistance and reliable conductivity. The lug is compatible with standard crimping tools for 240 mm² conductors.

Suitable for

• Eaton NZM3 series circuit breakers
• Copper conductors with 240 mm² cross-section
• Power distribution and industrial control systems

Key specifications

• Conductor cross-section: 240 mm²
• Conductor material: Copper
• Lug material: Tinned copper
• Connection type (breaker side): Screw terminal
• Connection type (cable side): Crimp / Compression
• Insulation: Uninsulated
• Number of conductors per lug: 1
• Accessory type: Terminal accessory
• Series compatibility: Eaton NZM3

Recommendations

Use with appropriate crimping tools and follow Eaton installation guidelines for NZM3 circuit breakers to ensure proper termination and electrical safety.
