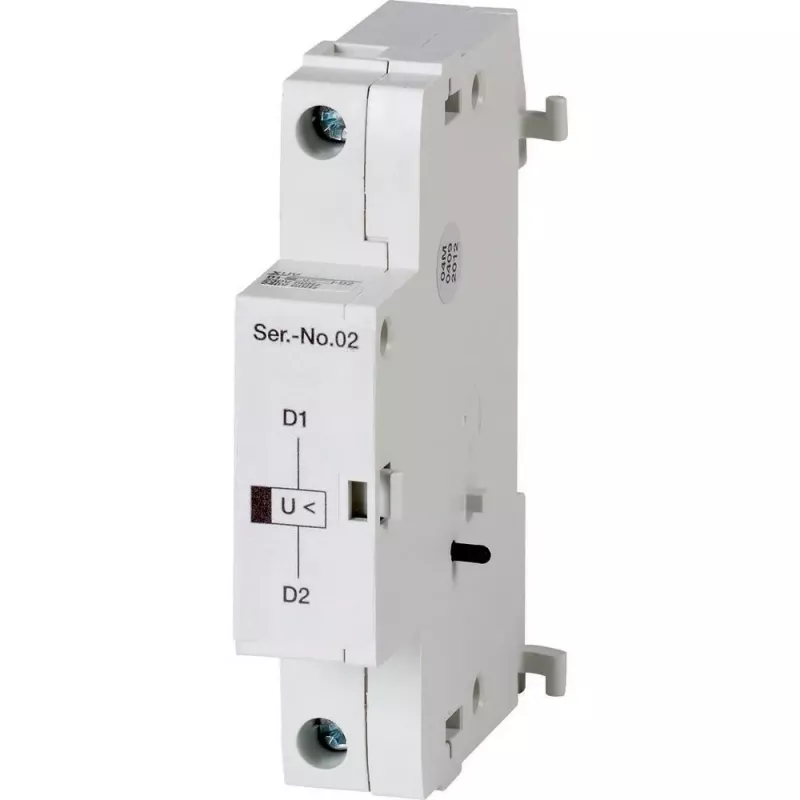

Eaton P-SOL-XUV sganciatore di sottotensione 24VDC per interruttori automatici NZM (157861)

The Eaton P-SOL-XUV undervoltage release trips the connected circuit breaker automatically when the control voltage drops to 35–70% of its rated value, preventing uncontrolled restarts and enabling emergency-stop functionality. It operates at 24 V DC with a power consumption of 3 W.

Overview

This undervoltage release is designed for internal or side mounting on Eaton NZM1, NZM2, NZM3, and NZM4 circuit breakers. It features screw terminals for secure electrical connection and complies with IEC/EN 60947-2. The release is suitable for applications requiring undervoltage protection and emergency stop functions.

What stands out

• Tripping threshold: 0.35–0.7 × rated operating voltage
• Low power consumption: 3 W
• Wide operating temperature range: -25°C to +70°C
• Compatible with NZM1–NZM4 circuit breakers

Technical details

• Rated operating voltage: 24 V DC
• Current type: DC
• Mounting type: Internal / side-mounted
• Electrical connection: Screw terminals
• Degree of protection: IP20 (when installed in suitable enclosure)
• Storage temperature range: -40°C to +80°C

Our verdict

A reliable undervoltage release for Eaton NZM circuit breakers, offering precise tripping and low energy consumption for safety-critical applications.
