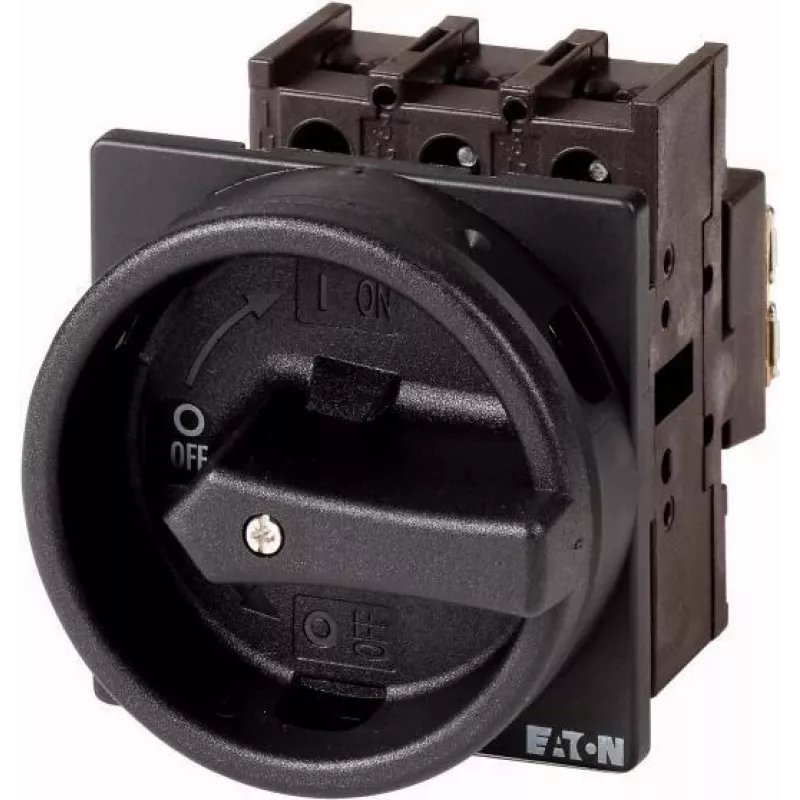

Eaton P1-25/EA/SVB-SW interruttore generale 3 poli, 25 A, IP65, nero 048365

The Eaton P1-25/EA/SVB-SW main switch stands out with its robust IP65-rated enclosure and 3-pole configuration, making it a reliable choice for demanding industrial environments where protection against dust and water is critical.

Highlights

• 3-pole main switch with STOP function for safe equipment isolation
• Rated uninterrupted current of 25 A at up to 690 V AC
• IP65 degree of protection for harsh conditions
• Surface mounting with black handle
• Certified to IEC/EN 60947-3, UL, and CSA standards

In daily use

This switch is designed for maintenance and emergency stop applications. Its 90° switching angle provides clear visual indication of the switch position, while the robust construction ensures long-term reliability. The switch can handle motor loads up to 11 kW (AC-23A at 400 V) and short-circuit currents up to 50 kA with appropriate fusing.

Full specifications

• Number of poles: 3
• Rated uninterrupted current (Iu): 25 A
• Rated operational voltage (Ue): 690 V AC
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V
• Degree of protection: IP65
• Mounting type: Surface mounting
• Handle color: Black
• Switching function: Main switch, STOP function
• Switching angle: 90°
• Rated short-time withstand current (Icw, 0.5s): 500 A
• Rated conditional short-circuit current (Iq): 50 kA (with 25A gG/gL fuse)
• Motor rating (AC-23A, 400V): 11 kW
• Motor rating (AC-3, 400V): 7.5 kW
• Terminal capacity: 1 x 6 mm² / 2 x 2.5 mm²
• Standards: IEC/EN 60947-3, VDE 0660, IEC/EN 60204
• Certifications: CE, UL, CSA

Final note

With its high interrupting capacity and compliance with international standards, this switch is a dependable component for machine control panels and power distribution systems.
