Eaton P3-100/I5/SVB/N interruttore generale da parete 100 A 4 poli 207379

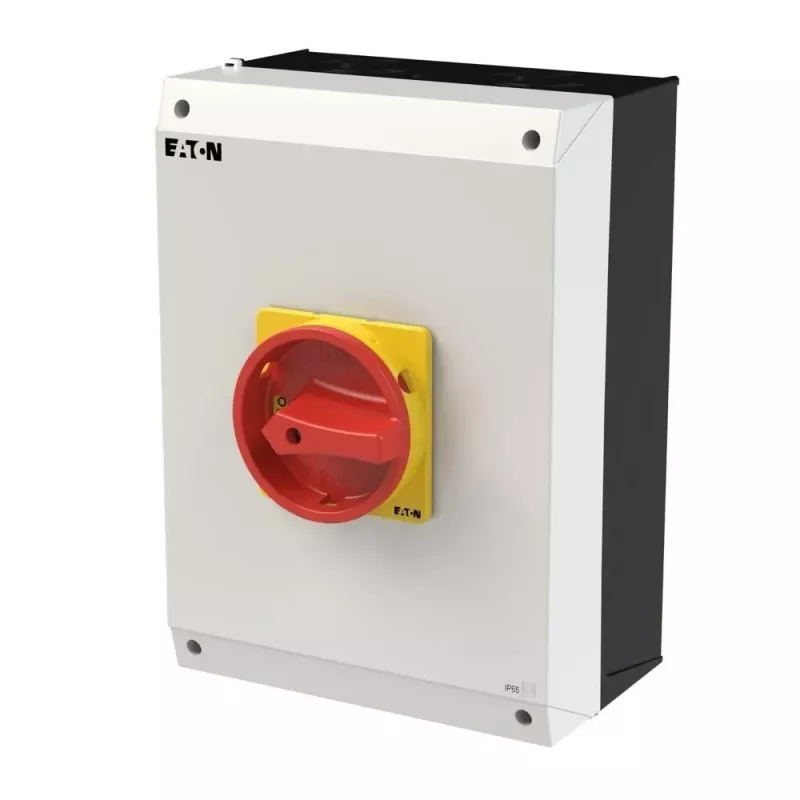

This surface-mount main switch from Eaton provides reliable manual isolation for electrical circuits up to 100 A. Its 4-pole configuration with neutral conductor makes it suitable for three-phase systems, while the lockable OFF position enhances safety during maintenance.

Advantages

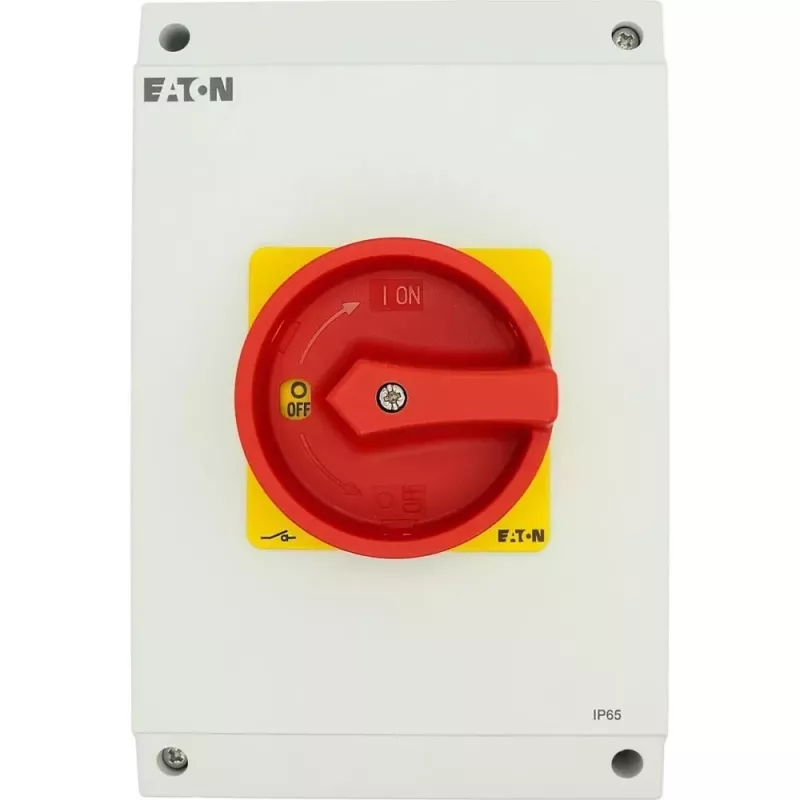

The P3-100/I5/SVB/N is designed for robust performance in industrial environments. With an IP65 rating, it withstands dust and water jets, ensuring long-term reliability. The red handle and yellow front plate offer clear visual status indication, and the screw terminals provide secure, vibration-resistant connections.

Suitable for

• Main switch applications in industrial control panels
• Disconnecting power for machinery and equipment
• Three-phase systems requiring a switched neutral
• Outdoor installations where protection against dust and water is needed

Key specifications

• Rated continuous current: 100 A
• Rated operational voltage: 690 V AC
• Number of poles: 4 (3P + N)
• Degree of protection: IP65
• Mounting: Surface mounting
• Lockable in OFF position

Recommendations

Always verify that the switch's rated operational power (37 kW at 400 V AC-23A) matches your load requirements. For safety, ensure the switch is locked in the OFF position before performing any maintenance.
