EATON pannello di comunicazione per quadro contatori ZSD-K1 (183254)

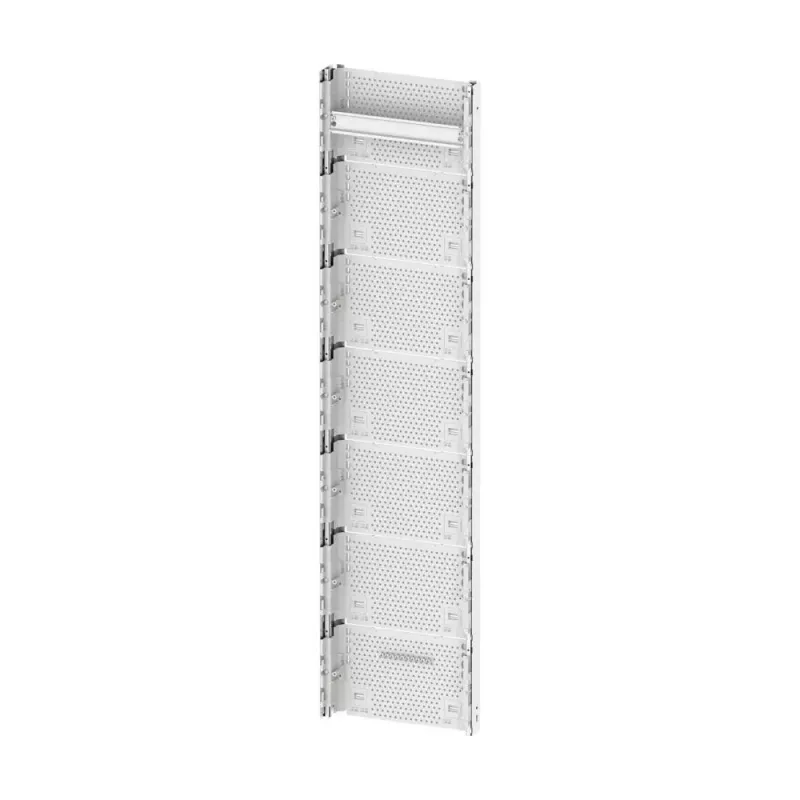

Communication field for Hager ZSD-K1 meter cabinets, providing dedicated space for a smart meter gateway and network components. Pre-assembled with mounting plate and DIN rail, constructed from light grey sheet steel (RAL 7035).

Advantages

Modular design allows flexible integration of communication devices, with integrated cable entry and routing options for clean installation. Complies with DIN VDE 0603-1 and DIN 43870-1.

Suitable for

• Smart meter gateway (SMG) installation
• Network components such as routers and switches
• Indoor meter cabinet integration

Key specifications

• Material: Sheet steel
• Colour: Light grey (RAL 7035)
• Mounting: Internal cabinet mounting
• Max. device installation depth: 100 mm
• Pre-assembled: Yes, with mounting plate and DIN rail

Recommendations

Ideal for upgrading meter cabinets to support smart grid communication infrastructure, ensuring compliance and future-proofing.
