EATON PDUMH20HVATNET PDU metered 20A 208/240V 0U rackmount verticale con 20 prese

The EATON PDUMH20HVATNET is a high-performance metered power distribution unit designed for data centers and network cabinets requiring reliable power monitoring and distribution. With a 20A input at 208/240V AC, this 0U vertical rackmount PDU provides 16 C13 and 4 C19 outlets, delivering up to 3.8kW of power. Its integrated digital display and remote monitoring capabilities via Ethernet allow real-time tracking of current, voltage, frequency, power factor, kW, and kWh, ensuring efficient power management.

Advantages

This PDU offers precise power metering without the need for additional software, reducing complexity and cost. The toolless mounting system simplifies installation in any standard 19-inch rack, while the included mounting hardware and configuration cable ensure a quick setup. Dual 20A circuit breakers provide overload protection, and the metal housing ensures durability in demanding environments.

Suitable for

• Data centers requiring remote power monitoring
• Network cabinets with high-density equipment
• IT professionals managing power distribution in server rooms
• Facilities needing reliable single-phase power distribution

Key specifications

• PDU Type: Metered
• Input Voltage: 208V / 240V AC
• Input Amperage: 20A
• Input Connector: NEMA L6-20P
• Output Receptacles: 16 x IEC-320-C13, 4 x IEC-320-C19
• Form Factor: 0U Vertical Rackmount
• Power Capacity: 3.3kW (208V) / 3.8kW (240V)
• Cord Length: 3.05 m (10 ft)
• Phase: Single-phase

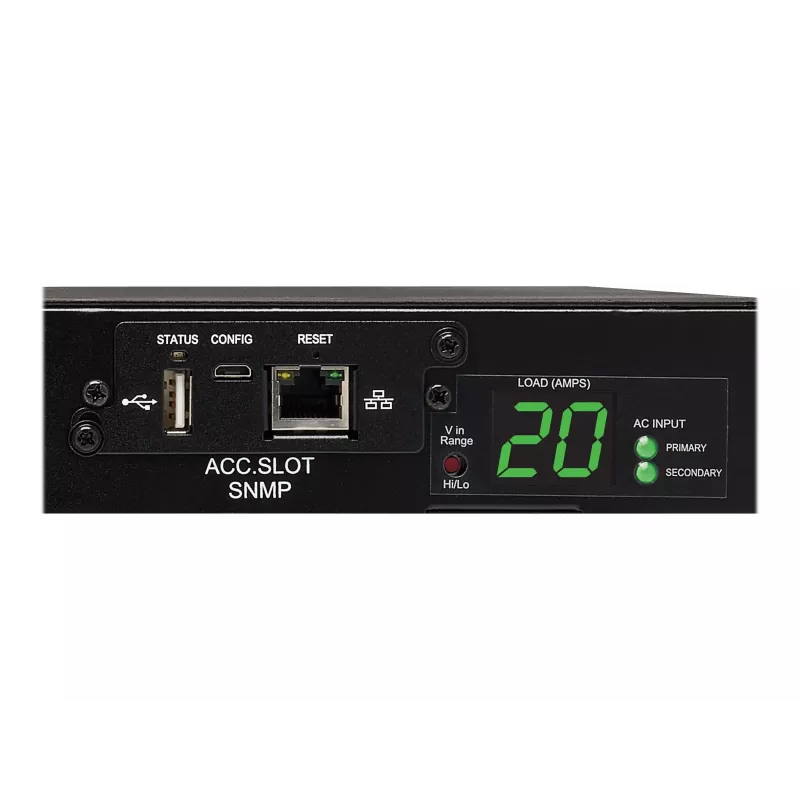

• Metering: Digital current display, remote monitoring (current, voltage, frequency, power factor, kW, kWh)
• Network Interface: RJ45 Ethernet port
• Network Protocols: HTTP, HTTPS, SNMPv1/v2c/v3, Telnet, SSH, FTP, DHCP, BOOTP, NTP
• Overload Protection: 2 x 20A Circuit Breakers
• Housing Material: Metal
• Mounting Options: Vertical 0U rackmount (toolless and bolt-down options)
• Certifications: UL 60950-1, cUL, RoHS
• Included Accessories: Mounting hardware, configuration cable

Recommendations

For optimal performance, ensure the PDU is connected to a dedicated 20A circuit with the appropriate NEMA L6-20R receptacle. Use the remote monitoring features to track power usage and avoid overloading. This PDU is ideal for environments where space is at a premium and precise power management is critical.
