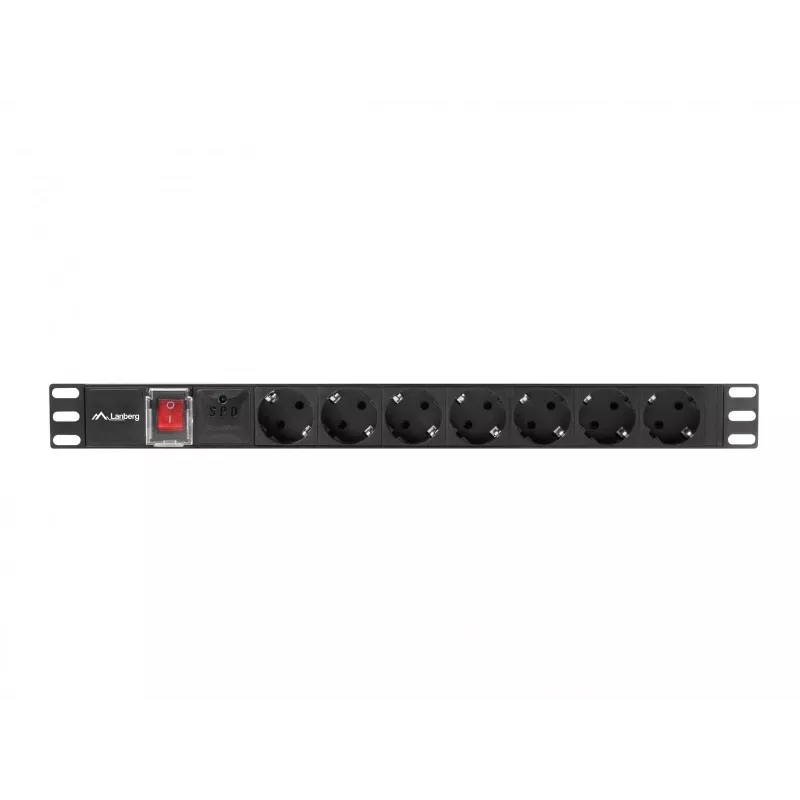

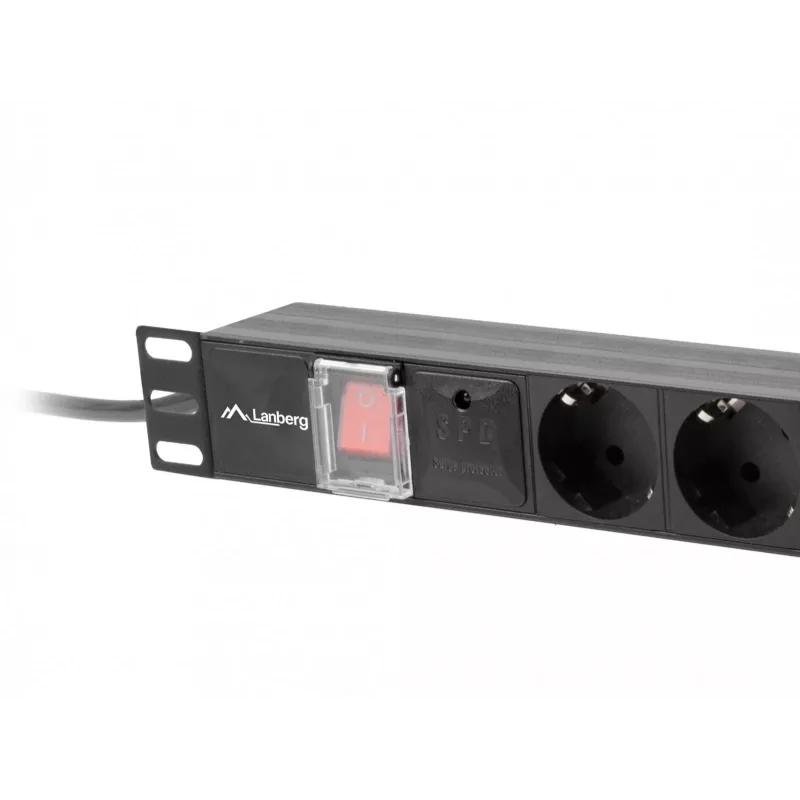

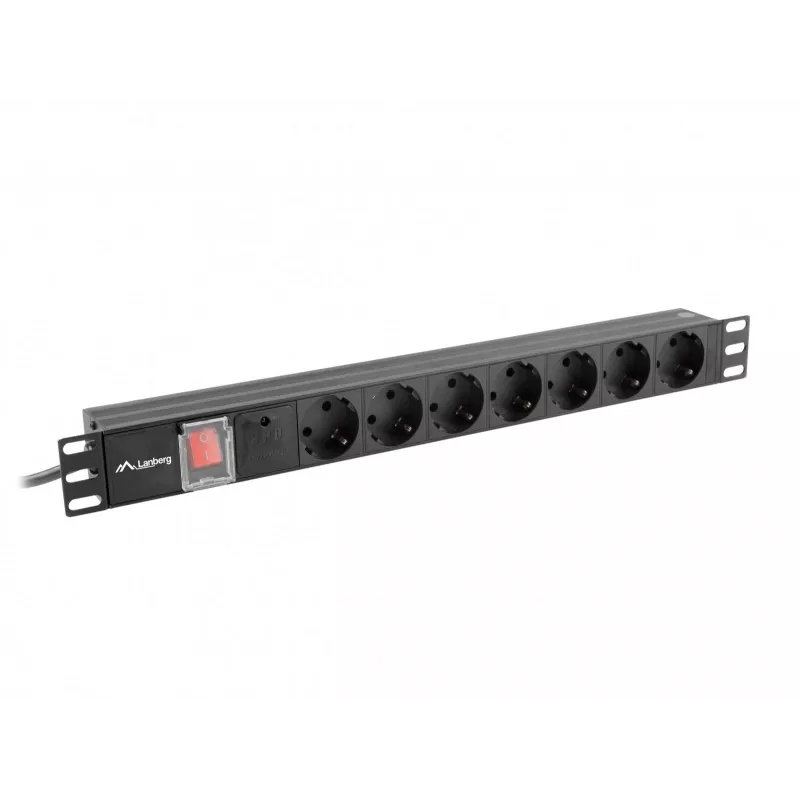

Power Distribution Unit Lanberg PDU-07F-0200-BK

The Lanberg PDU-07F-0200-BK is a 1U power distribution unit designed for horizontal mounting on the front of 19" server cabinets. It provides seven AC outlets, LED activity indicators and a 2 m power cable. With a nominal input voltage of 220–250 V and a maximum current rating of 16 A, the unit delivers reliable power distribution for rack-mounted equipment in server rooms and data centers.

Advantages

This PDU includes overload protection, current circuit diaphragms to enhance user safety and an automatic fuse that is easy to replace or service. The device uses a larger cable diameter to ensure stable operation under high load and to reduce voltage drop. Its horizontal 1U form factor and black finish make it suitable for front-mount installation in various 19" cabinets.

Suitable for

• Powering rack-mounted servers and networking equipment
• Use in server rooms and data centers
• Horizontal front mounting in 19" cabinets
• Environments requiring dependable overload protection

Key specifications

• Model: Lanberg PDU-07F-0200-BK
• Form factor: 1U, horizontal front-mount
• AC outlets: 7
• Nominal input voltage: 220–250 V
• Maximum current: 16 A

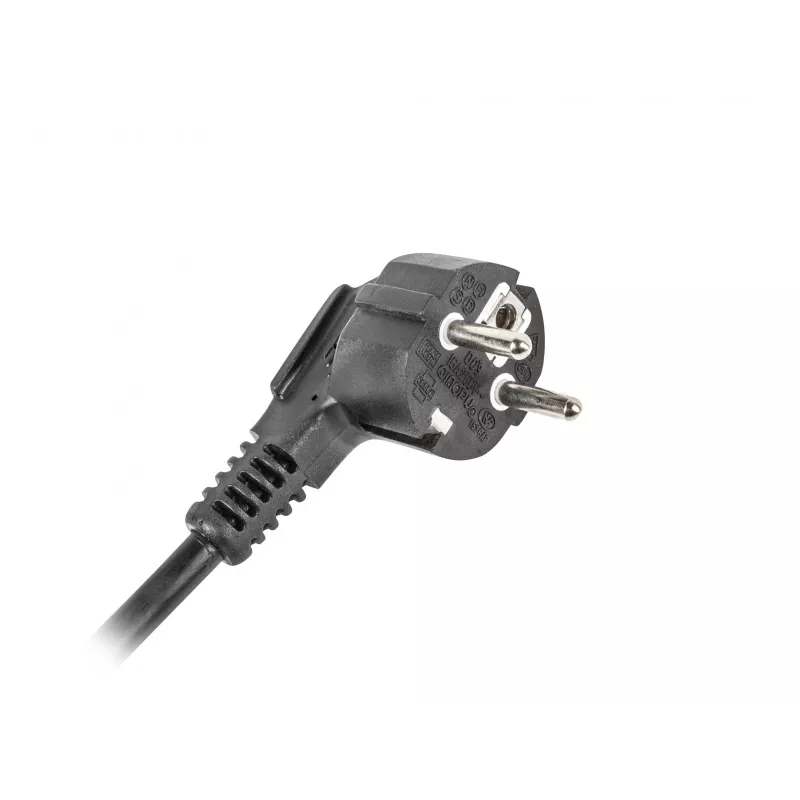

• Cable length: 2 m
• Colour: Black
• Weight: 0.79 kg

How to use

Install the PDU horizontally on the front rails of a compatible 19" cabinet occupying 1U of rack space. Connect the unit to the mains supply using the integrated 2 m cable. Plug the rack devices into the AC outlets, ensuring the combined current draw does not exceed the 16 A rating. Monitor LED indicators for activity and check the automatic fuse or overload protection if a shutdown occurs.

Recommendations

For safe and long-term operation, distribute load evenly across outlets, avoid exceeding the 16 A maximum current, and inspect the power cable and fuse periodically. Use the PDU in properly ventilated server cabinets and follow rack equipment manufacturers' power guidelines.
