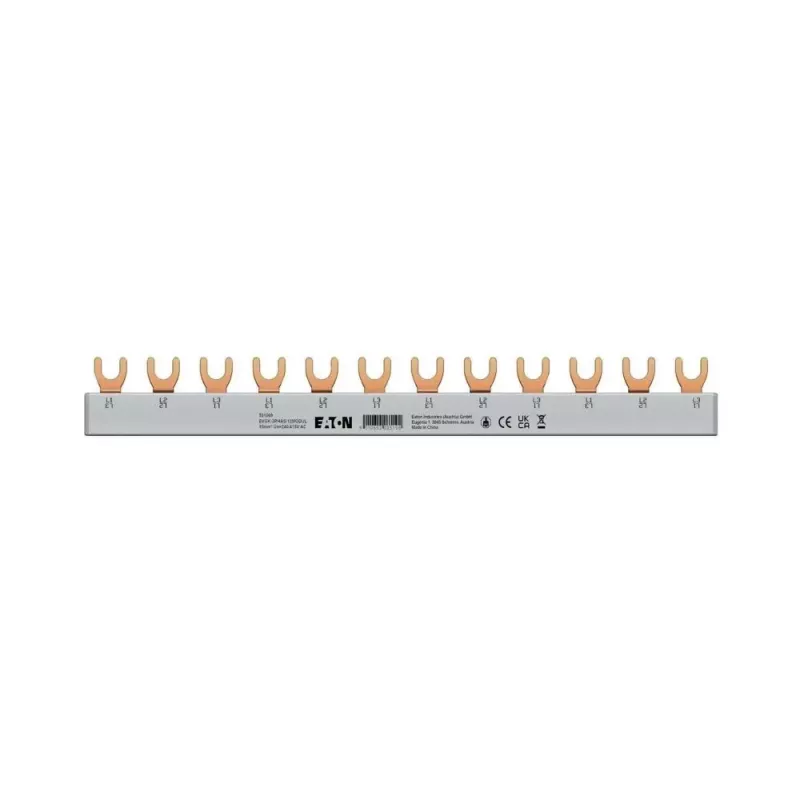

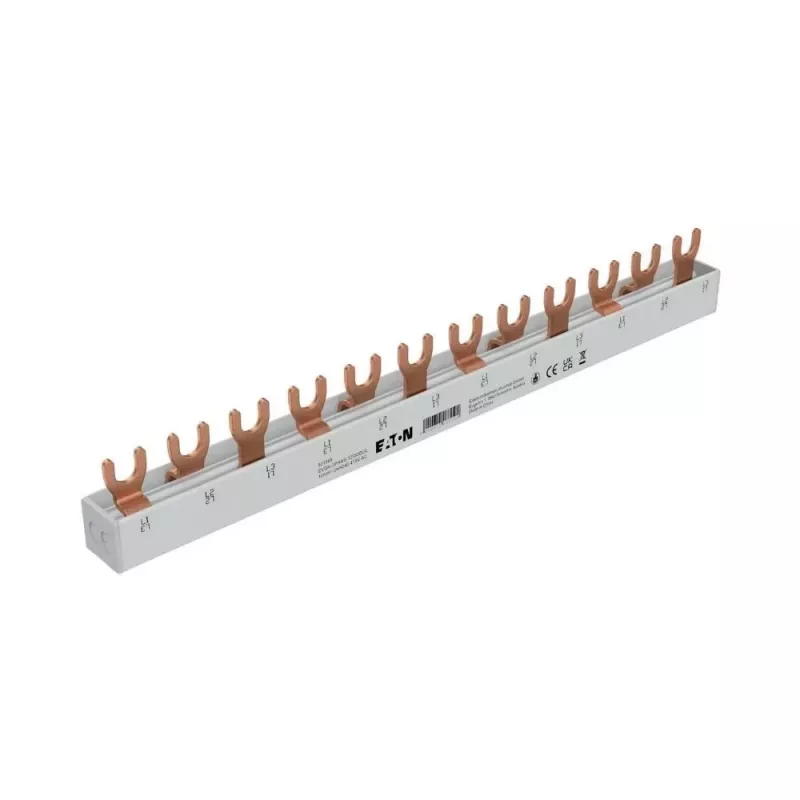

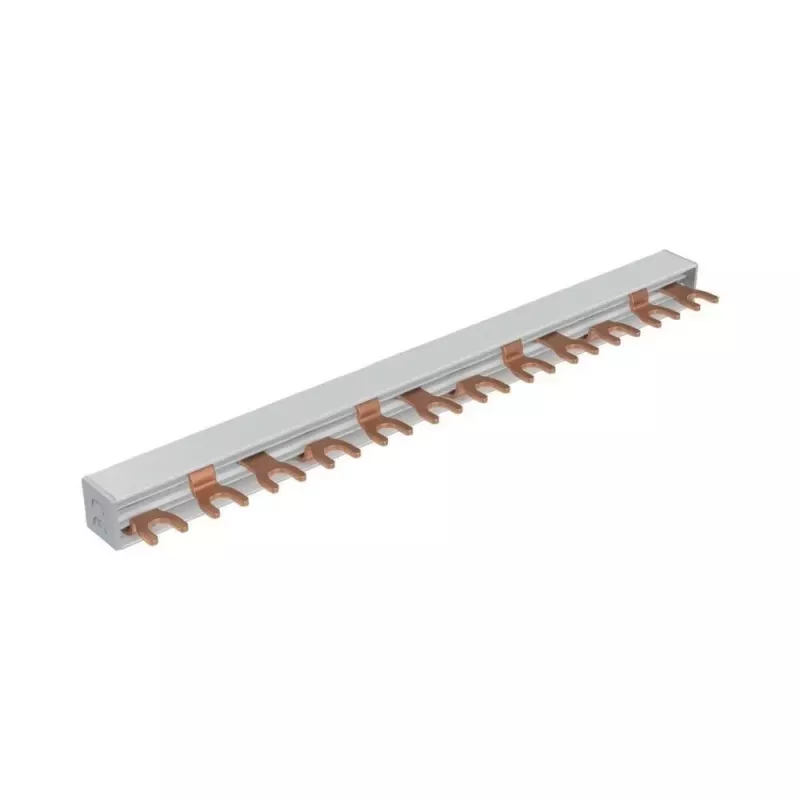

Eaton sbarra collettrice a forcella trifase EVGK-3PHAS/12MODUL, 63A, 12 moduli, 10mm², per xPole MCB/RCD (EP-501069)

This Eaton fork busbar streamlines three-phase distribution board assembly by linking up to twelve DIN rail devices with a single 10 mm² copper conductor. Unlike wire jumpers, it reduces wiring time and potential connection errors in Eaton xPole installations.

Highlights

• 3-phase fork busbar for 12 modules (18 mm pitch)
• Rated current 63 A, rated voltage 400 V AC
• 10 mm² copper conductor, fully insulated, self-extinguishing thermoplastic
• Compatible with Eaton xPole series (PLSM, PXL, FAZ, Z-MS)
• Fork-type connection for DIN rail mounted devices

In daily use

The busbar is placed onto the bottom terminals of miniature circuit breakers or residual current devices and secured with the device screws. The fork contacts ensure reliable contact across all poles. The insulation covers live parts, reducing the risk of accidental contact during maintenance.

Full specifications

• Accessory type: Distribution board accessory
• Type: Fork busbar
• Number of phases: 3
• Number of modules: 12
• Number of poles: 3
• Rated current: 63 A
• Rated voltage: 400 V AC
• Cross-section: 10 mm²
• Pole spacing: 18 mm
• Conductor material: Copper
• Insulation material: Self-extinguishing thermoplastic
• Insulation type: Fully insulated
• Connection type: Fork-type (U-type)
• Mounting: For DIN rail mounted devices
• Operating temperature: -25°C to +50°C
• Compliance industry standards: IEC/EN 60947-1, IEC/EN 61439-1

Final note

A practical accessory for building safe and tidy three-phase distribution boards with Eaton protective devices.
