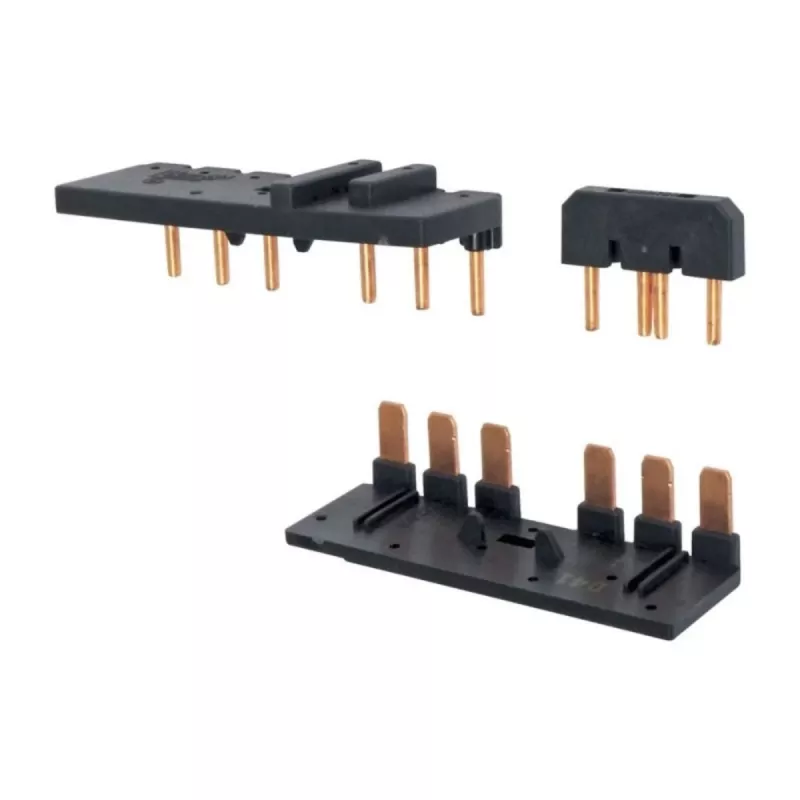

Eaton set di cablaggio stella-triangolo per contattori da DILM17 a DILM32 DILM32-XSL (283131)

Star-delta wiring set that simplifies and standardizes the wiring of star-delta motor starter combinations with Eaton DILM contactors. This pre-assembled kit is engineered for direct plug-in/screw connection to the screw terminals of DILM17, DILM25, and DILM32 contactors, reducing wiring effort and potential errors.

Advantages

Pre-assembled wiring kit for consistent and reliable star-delta configurations. Compatible with 3-pole DILM contactors rated up to 32 A and 690 V AC. Copper conductors with PVC insulation ensure dependable electrical performance. Direct plug-in/screw connection to contactor terminals for quick installation. Finger-safe design when installed.

Suitable for

• Star-delta motor starter combinations using Eaton DILM17, DILM25, or DILM32 contactors
• Industrial motor control applications requiring reduced starting current
• Standardized wiring in control panels and motor control centers

Key specifications

• Accessory type: Star-delta wiring set
• Compatible contactor series: Eaton DILM
• Compatible contactor sizes: DILM17, DILM25, DILM32
• Max. rated operational current: 32 A
• Max. rated operational voltage: 690 V AC
• Number of poles: 3-pole
• Connection type: For screw terminals of DILM contactors
• Conductor material: Copper
• Insulation material: PVC
• Colour: Grey/Black
• Operating temperature range: -25 to +60 °C
• Storage temperature range: -40 to +80 °C

Recommendations

Use with Eaton DILM17, DILM25, or DILM32 contactors in star-delta starter configurations. Ensure proper torque on screw terminals according to contactor specifications.
