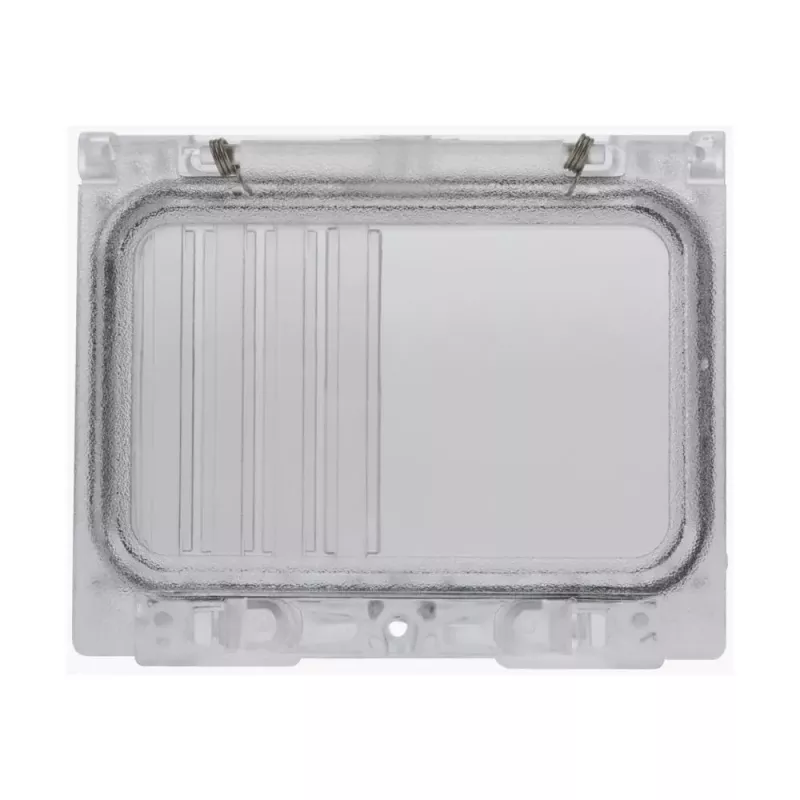

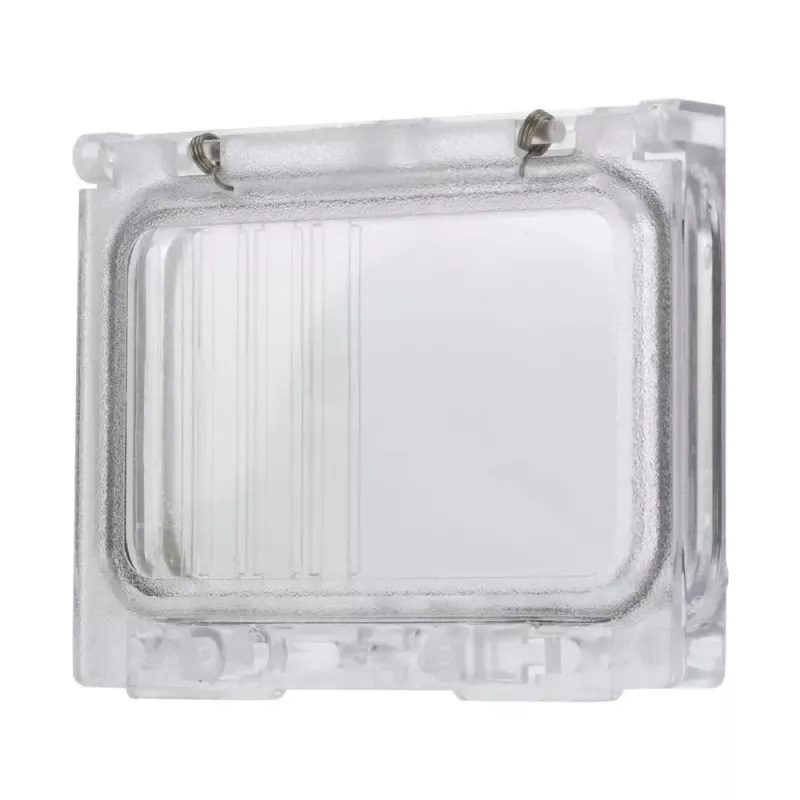

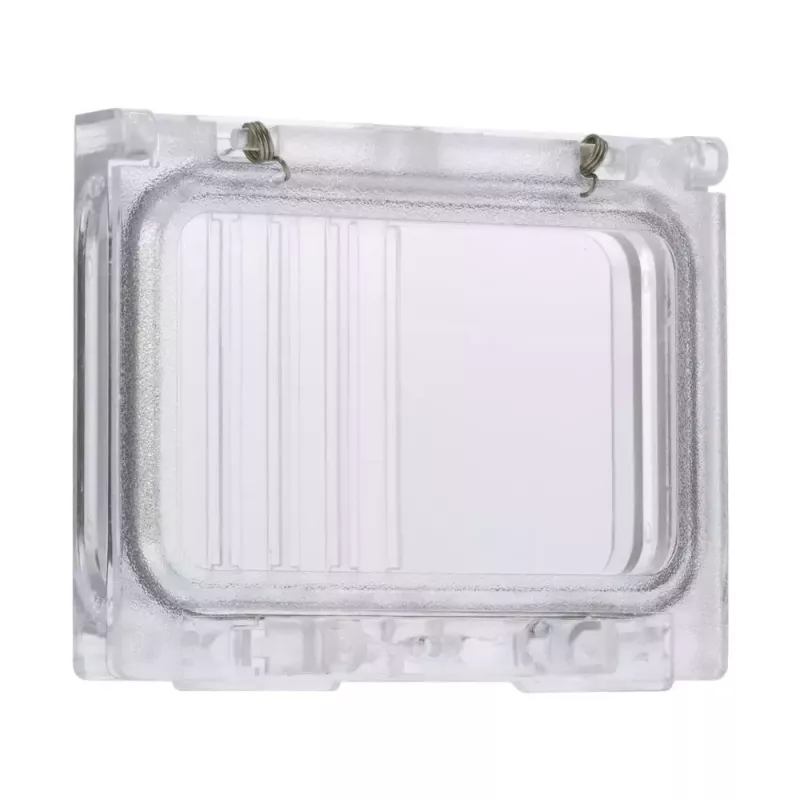

Eaton SKF-FF4 finestra di ispezione con sportello, 4 TE, 94x77x25 mm, grigio 233780

Inspection window with hinged transparent flap for visual access to internal components in distribution boards and control panels. The 4 TE module provides a clear view while maintaining enclosure integrity.

Advantages

Tool-free snap-in installation, transparent polycarbonate flap, and light grey thermoplastic frame (RAL 7035) blend seamlessly into standard enclosures.

Suitable for

• Electrical distribution boards
• Consumer units
• Control panels
• DIN rail enclosures

Key specifications

• Dimensions: 94 mm height, 72 mm width, 25 mm depth
• Material: Thermoplastic frame, polycarbonate flap
• Colour: Light grey (RAL 7035)
• Mounting: Panel / enclosure mount, snap-in
• Protection class: IP30 (when installed in appropriate enclosure)
• Operating temperature: -5 to +40 °C
• Standards: IEC/EN 60670-24

Recommendations

Ideal for installations requiring periodic visual inspection without opening the enclosure. Use in combination with Eaton distribution systems for best fit.
