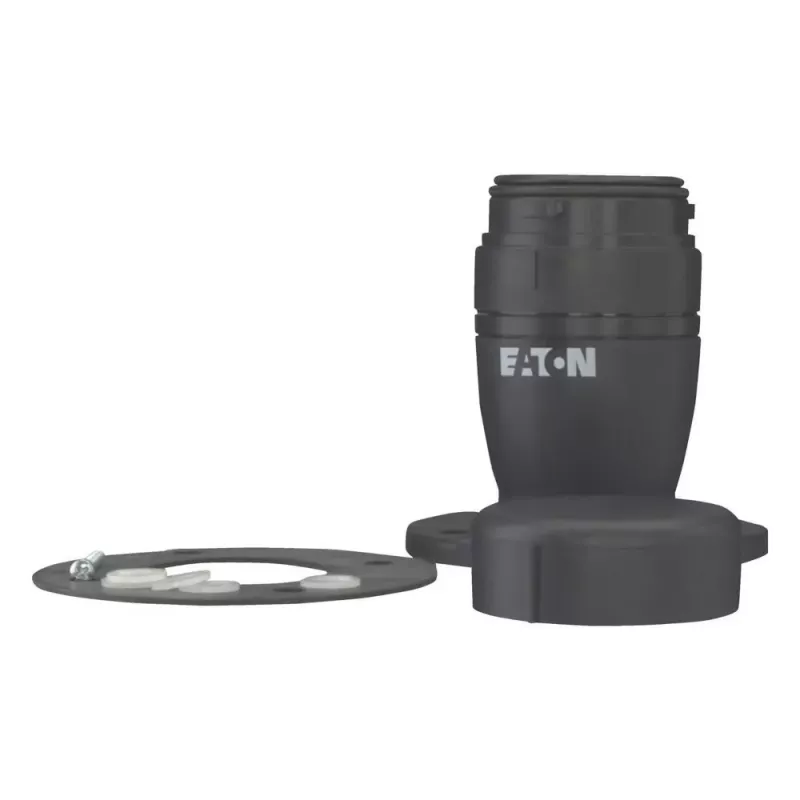

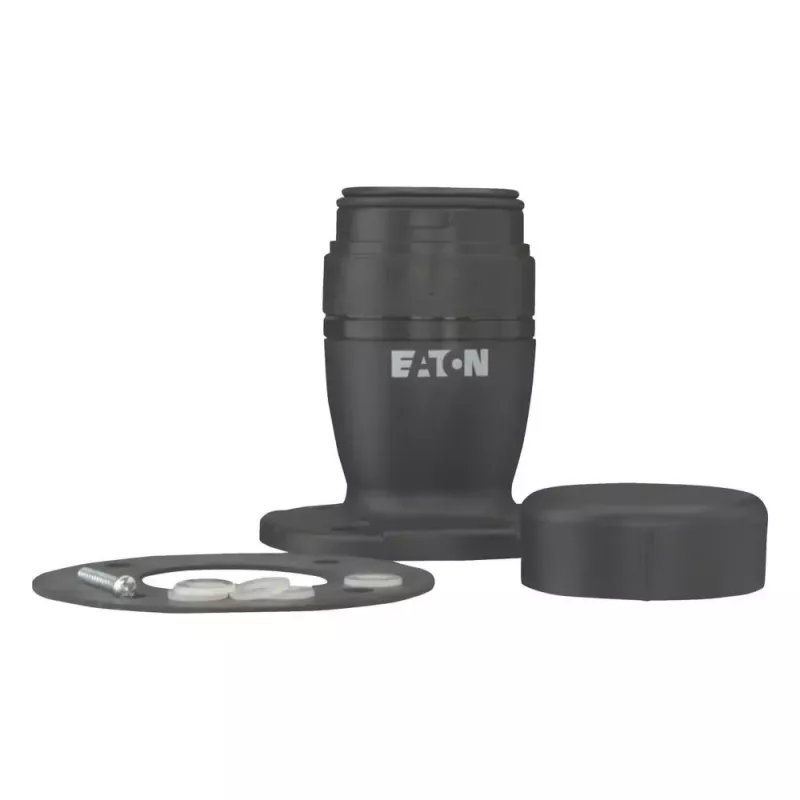

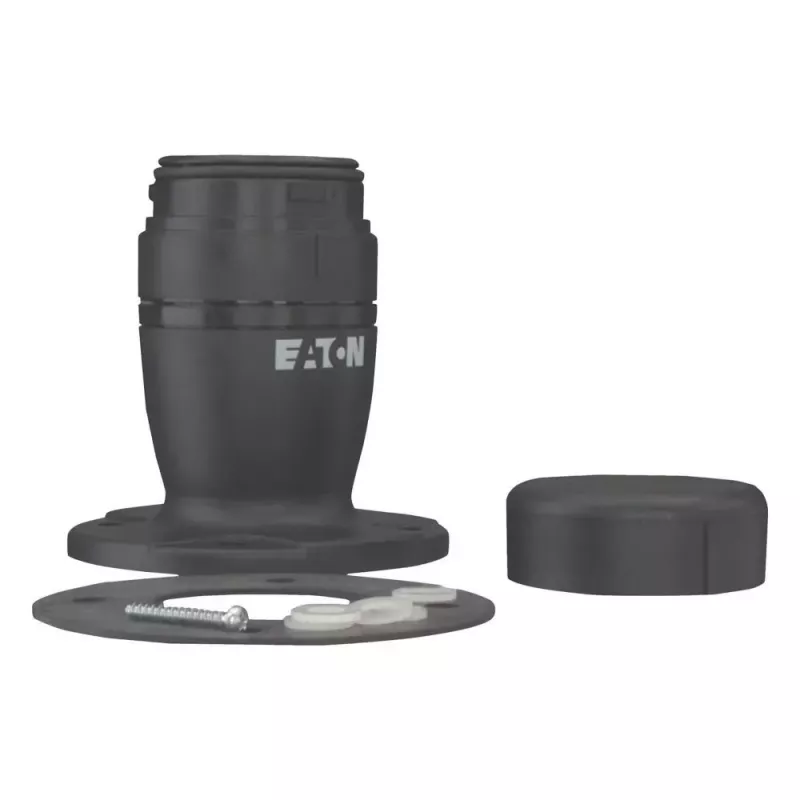

Eaton SL4-PIB-EMH elemento di connessione per torri di segnalazione SL4, nero 171302

Connection element for Eaton SL4 modular signal towers, providing power and signal supply to up to five signal modules. The SL4-PIB-EMH offers a robust base mounting solution with screw terminals and an M20 cable gland for secure wiring.

Advantages

Direct base mounting simplifies installation on flat surfaces. The 5-pole terminal block supports connection of up to five signal modules, enabling versatile tower configurations. The polycarbonate housing ensures durability in industrial environments.

Suitable for

• Eaton SL4 series signal towers
• Industrial signalling applications requiring modular stack lights
• Installations with M20 cable glands and screw terminal connections

Key specifications

• Series: SL4
• Product type: Connection element / base element
• Mounting type: Base mounting / direct mounting
• Electrical connection: Screw terminals, 5-pole
• Cable entry: M20 cable gland (cable diameter 6–13 mm)
• Degree of protection: IP66
• Housing material: Polycarbonate
• Colour: Black
• Operating temperature range: -30 to +60 °C
• Rated insulation voltage: 250 V AC
• Rated impulse withstand voltage: 2.5 kV
• Terminal cross-section: 0.5–2.5 mm² (AWG 20–14)
• Max. number of signal modules: 5

Recommendations

Verify the required cable diameter and module count before installation. Ensure the mounting surface is flat and stable.
